Preparing for use
3.2 Transportation and storage
1FK7 G2 synchronous motors
Operating Instructions, 05/2021, A5E50907562B AA
49
Lifting and transporting with lifting eyes as of SH 80

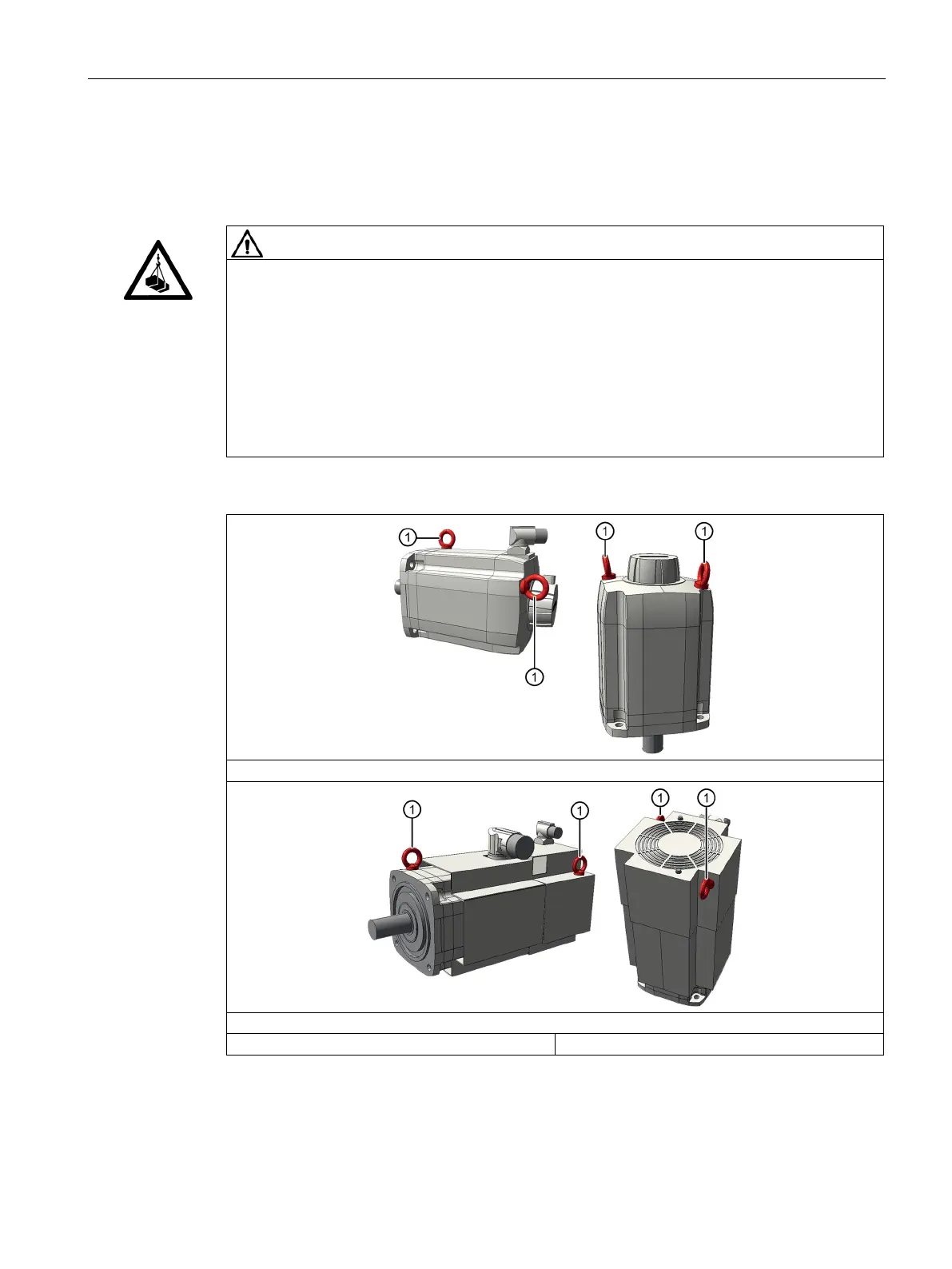

For motors as of a shaft height of 80 mm, use lifting eyes and a beam to lift and transport the
motor.
Incorrect or unused lifting points
Due to incorrect or unused lifting points, the motor can fall and cause death, severe injury
and/or damage to property.
• Only lift and transport larger motors using the eyebolts screwed on to the end shields.
• Completely screw in the eyebolts and tighten by hand (approx. 8 Nm).
• Do not use bent or damaged eyebolts.
• Only use eyebolts with laminated fiber washers.
Loads applied transversely to the plane of the eyebolts are not permitted.
1FK7 with natural cooling (shaft height 80 - 100)
1FK7 with forced ventilation
