Connecting
5.4 System integration
1FK7 G2 synchronous motors
Operating Instructions, 05/2021, A5E50907562B AA
71

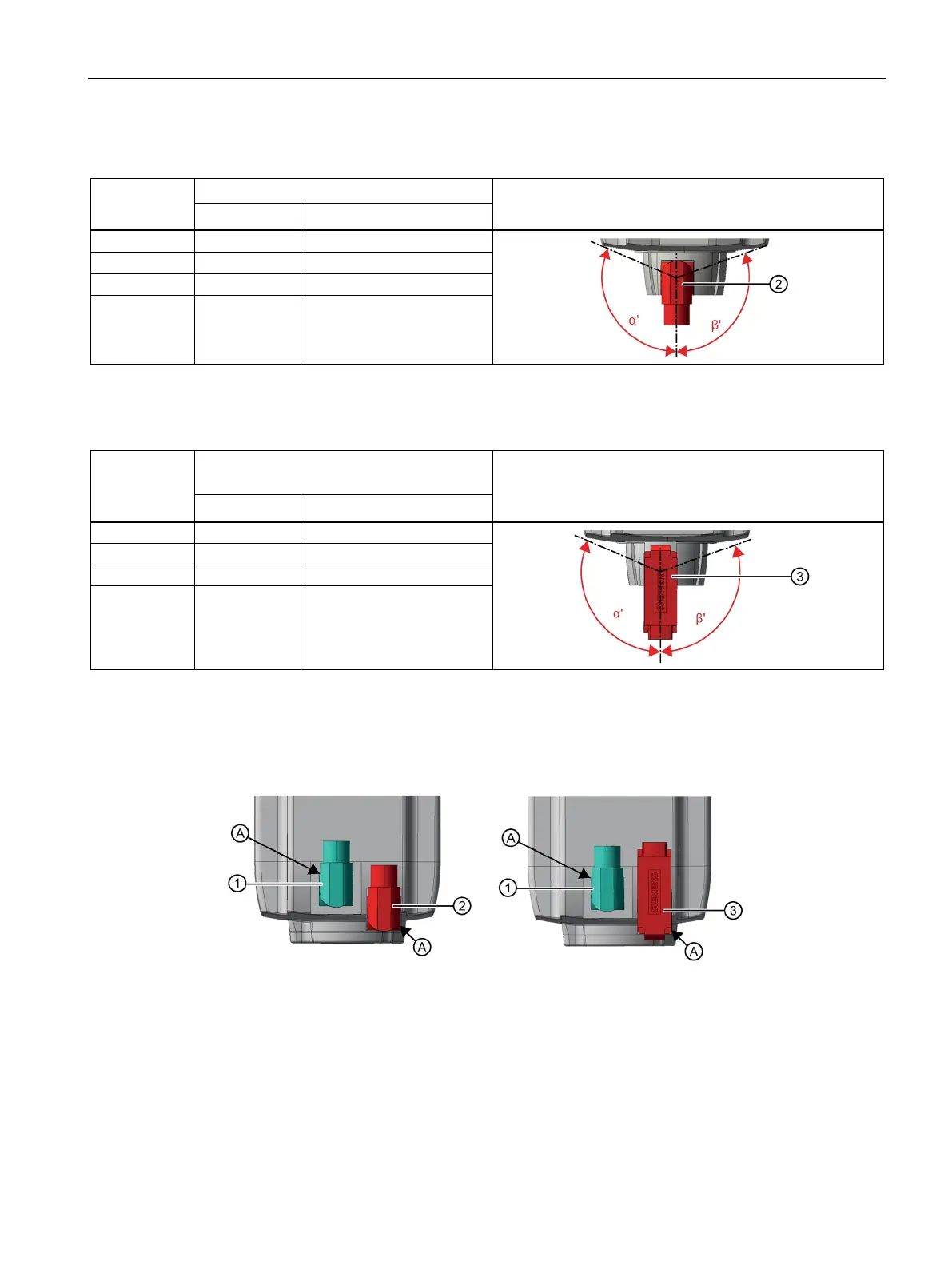

Rotation range of the signal connector ②
Motor
Signal connector without DRIVE-CLiQ ②
Drawing
Angle α´
Angle β´
1FK703
160°
135°
1FK704
145°
130°
1FK706
150°
135°
1FK708
1FK710
105°
105°
Rotation range of the signal connector ②
Rotation range of the signal connector ③
Motor Signal connector with DRIVE-CLiQ via Sen-
sor Modules (SMI) ③
Drawing
Angle α´
Angle β´
1FK703
160°
130°
1FK704
145°
140°
1FK706
140°
145°
1FK708
1FK710
105°
100°
Rotation range of the signal connector ③
Twistability of the connectors for motors with Resolver
1FK7□□□-□□□□□-□X□□; X = S, T, U, P
1
Power connector, size M23 and M40
2
Signal connector M23
3
Signal connector with SMI
A
Output cam on the connector foot to limit the twistability
Figure 5-2 Twistability of the resolver variants
