Connecting
5.4 System integration
1FK7 G2 synchronous motors
Operating Instructions, 05/2021, A5E50907562B AA
75

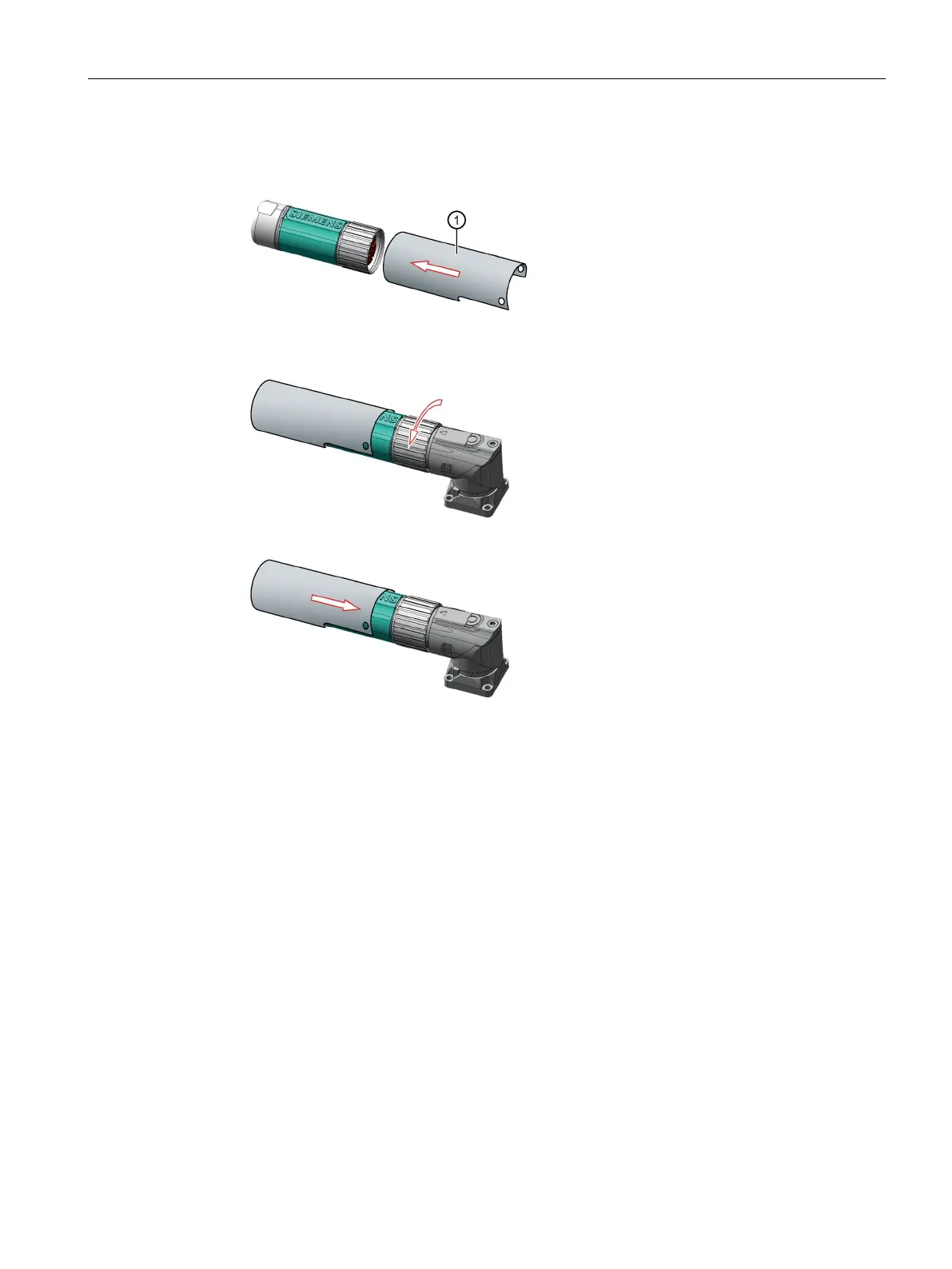

Procedure
1. Before connecting, push the disassembly protection sleeves over the connectors.
Disassembly protection sleeve
2. Establish the connector connection.
3. Push the disassembly protection sleeve over the connector connection.
