Getting Started
14 A5E36037886-003, 04/2017
2.1.2
Motor components

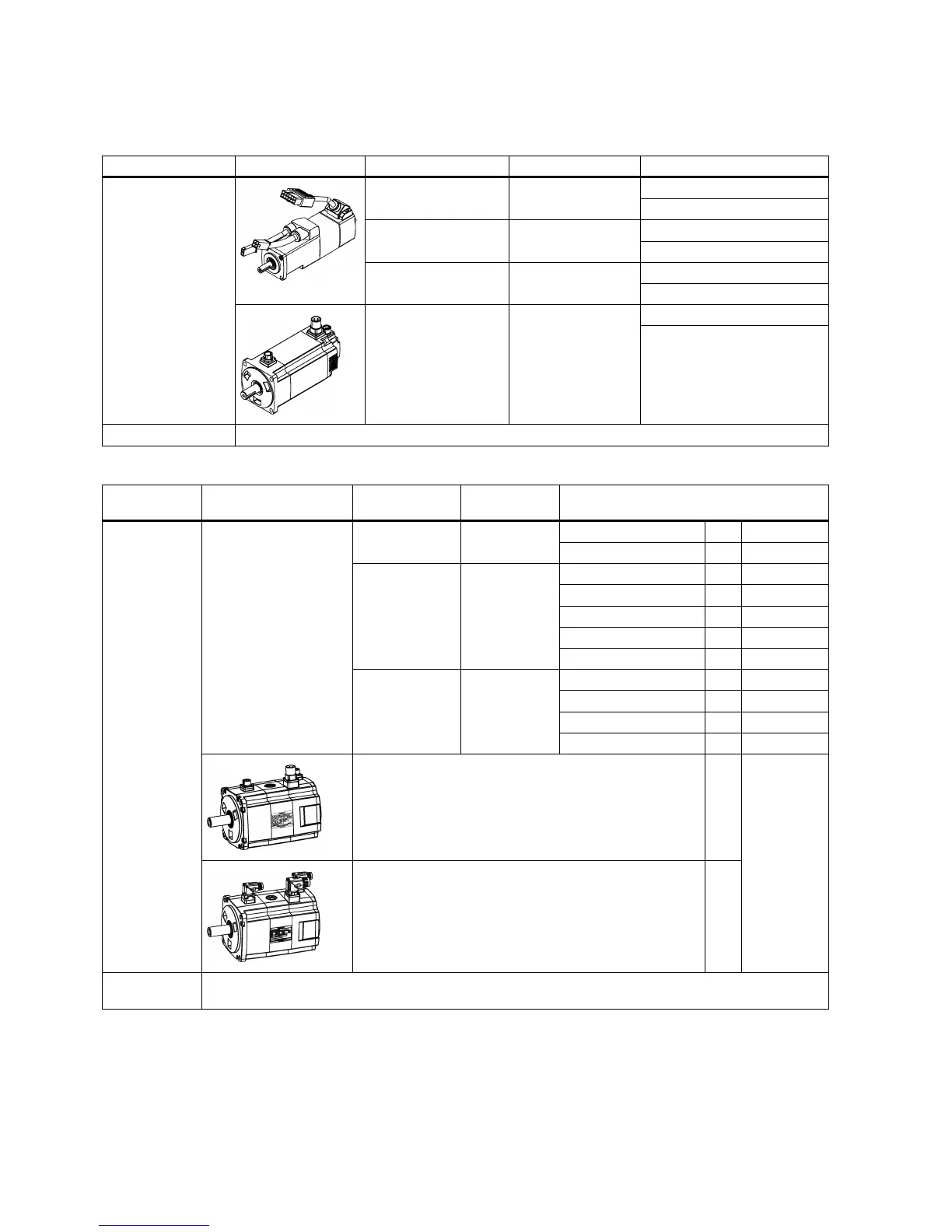

Components in the SIMOTICS S-1FL6 low inertia motor package
Component
Illustration
Rated power (kW)
Shaft height (mm)
Article number
SIMOTICS S-1FL6,
low inertia
0.05/0.1 20
1FL6022-2AF21-1❑❑1
1FL6024-2AF21-1❑❑1
0.2/0.4 30
1FL6032-2AF21-1❑❑1
1FL6034-2AF21-1❑❑1
0.75/1.0 40
1FL6042-2AF21-1❑❑1
1FL6044-2AF21-1❑❑1
1.5/2.0 50
1FL6052-2AF21-0❑❑1
1FL6054-2AF21-0❑❑1
User documentation
SIMOTICS S-1FL6 Servo Motors Installation Guide
Components in the SIMOTICS S-1FL6 high inertia motor package
Component
Illustration
Rated power
(kW)
Shaft height
(mm)
Article number
SIMOTICS S-
1FL6, high
inertia
0.4/0.75 45
1FL6042-1AF61-
❑
❑❑1
1FL6044-1AF61-
❑ ❑❑1
0.75/1.0/1.5/1.7
5/2.0
65
1FL6061-1AC61-
❑
❑❑1
1FL6062-1AC61-
❑
❑❑1
1FL6064-1AC61-
❑
❑❑1
1FL6066-1AC61-
❑
❑❑1
1FL6067-1AC61-
❑
❑❑1
2.5/3.5/5.0/7.0 90
1FL6090-1AC61-
❑
❑❑1
1FL6092-1AC61-
❑
❑❑1
1FL6094-1AC61-
❑
❑❑1
1FL6096-1AC61-
❑
❑❑1
Straight connectors with a fixed outlet direction 0
Angular connectors with a flexible outlet direction 2
User docu-
mentation
SIMOTICS S-1FL6 Servo Motors Installation Guide
