Siemens SIMOTICS S-1FL6 - System Connection; 4 Connecting

Getting Started
42 A5E36037886-003, 04/2017
4
Connecting
4.1
System connection

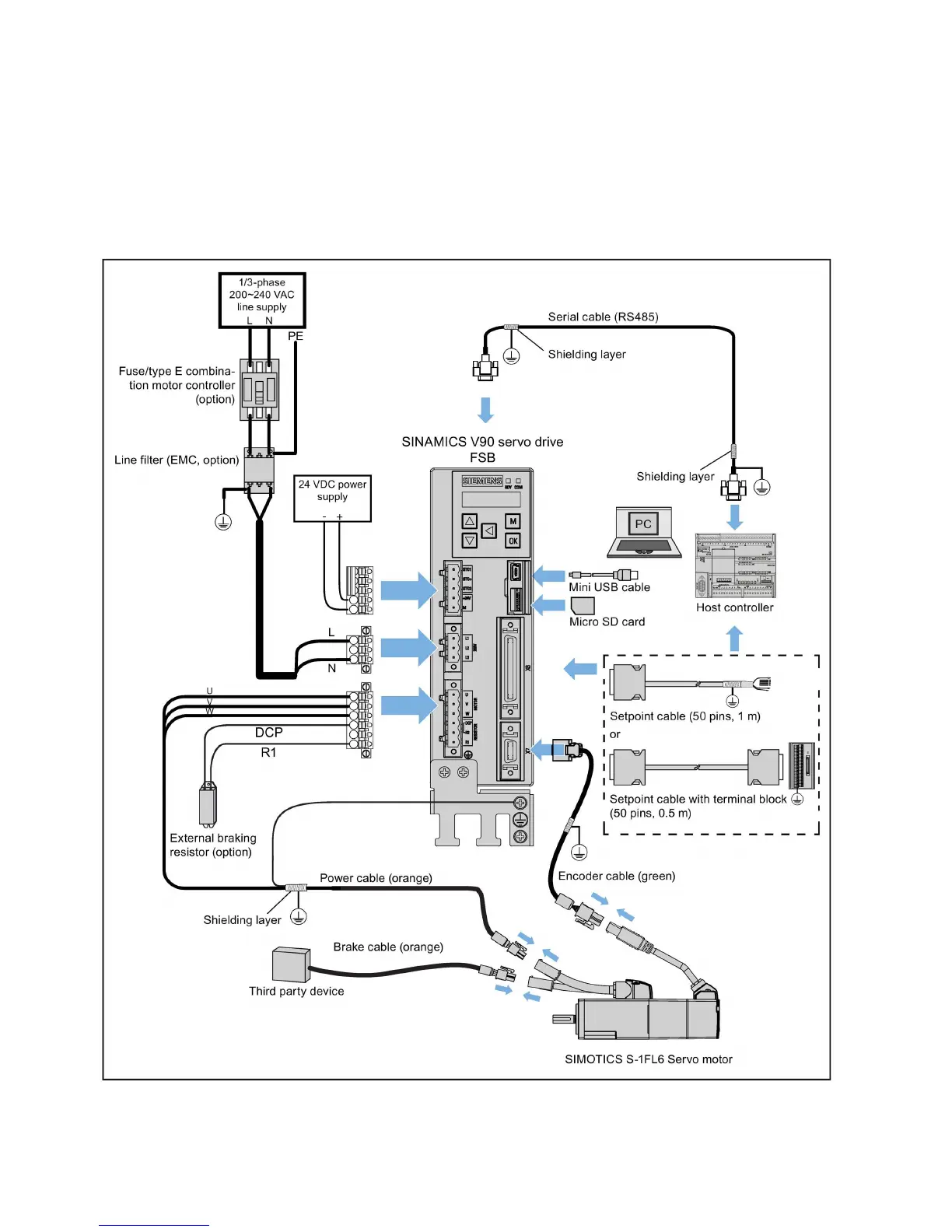

The following illustrations show examples of the SINAMICS V90 servo system connection:
SINAMICS V90 200 V variant
The connection for FSB when used on the single phase power network:
