Getting Started
46 A5E36037886-003, 04/2017
Note
For low inertia motors with shaft
-heights of 20 mm, 30 mm and 40 mm, the encoder cable connectors may only be
accessible to electrically skill
-USB interface of the SINAMICS V90 is used for fast commissioning and diagnostics with SINAMICS V-
ASSISTANT installed in the PC. Do not use it for long monitoring.
Connecting the cable shields with the shielding plate

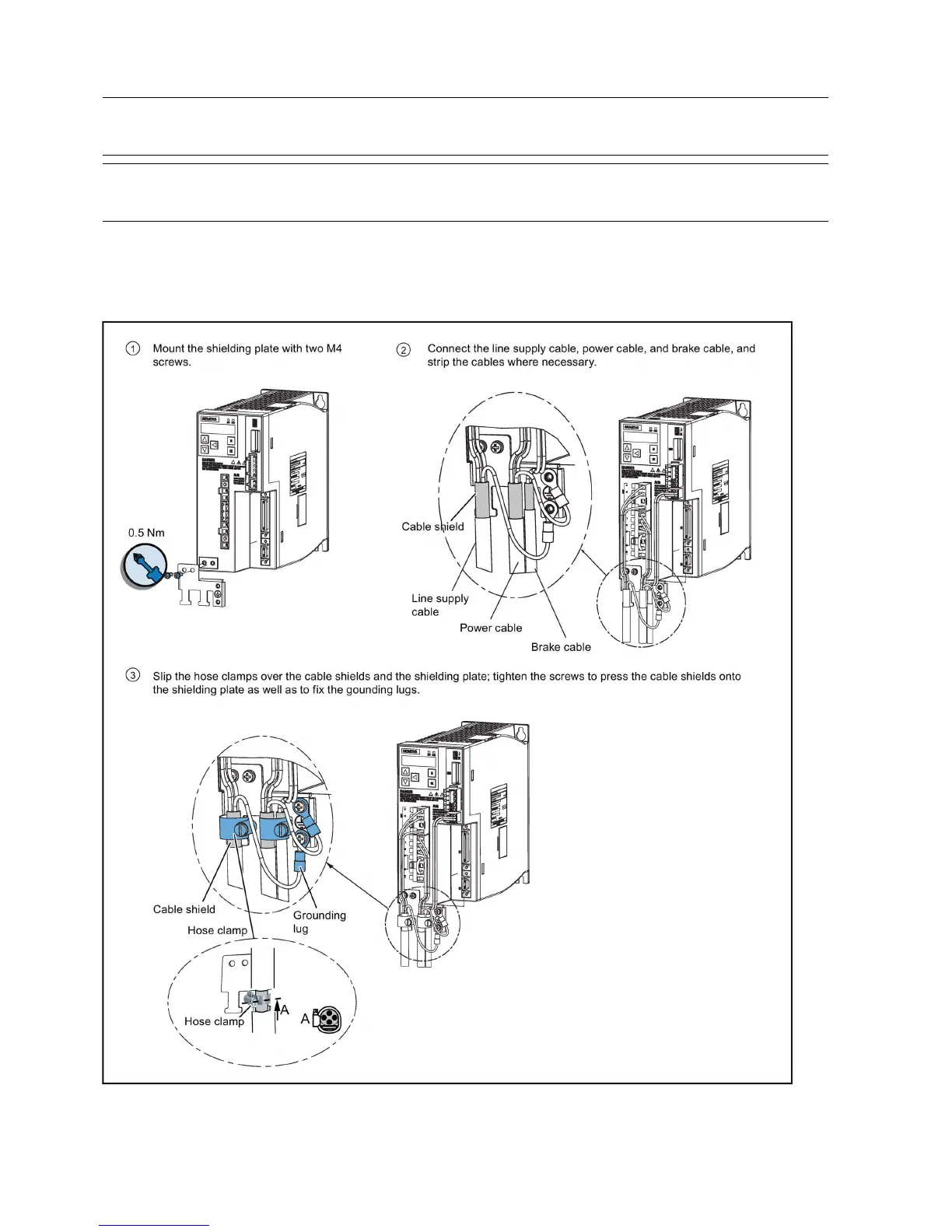

To achieve EMC-compliant installation of the drive, use the shielding plate that is shipped with the drive to connect the cable
shields. See the following example for steps to connect cable shields with the shielding plate:
