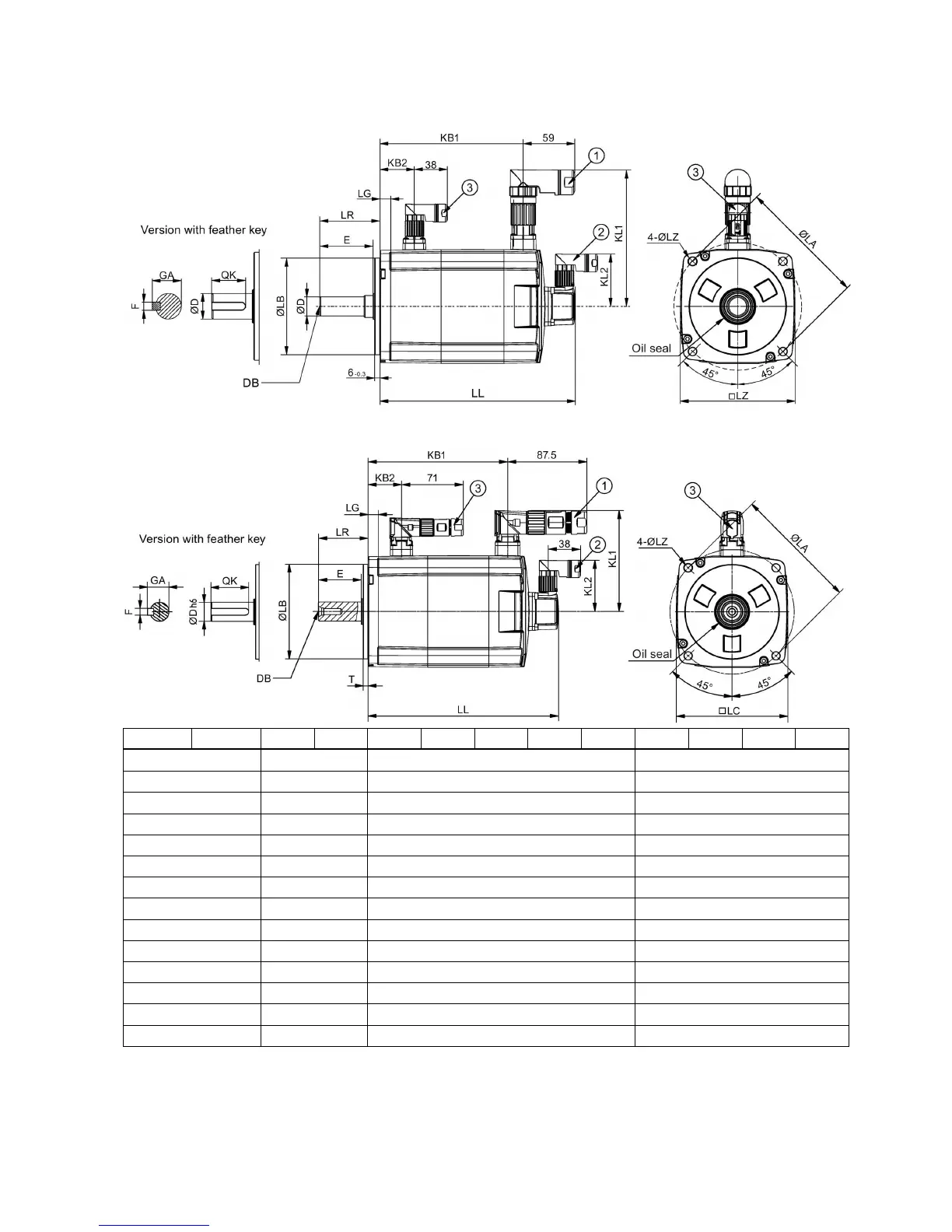

High inertia servo motor with straight connectors, with the absolute encoder
High inertia servo motor with angular connectors, with the absolute encoder
Type
1FL60...
42
44
61
62
64
66
67
90
92
94
96
Shaft height
45
65
90
LC
90
130
180
LA
100
145
200
LZ
7
9
13.5
LB
80 - 0.03
110 - 0.035
114.3 - 0.035
LR
35
58
80
T
4 - 0.3
6 - 0.3
3 - 0.3
LG
10
12
18
D
19 - 0.013
22 - 0.013
35 - 0.016
DB
M6 x 16 M8 x 16 M12 x 25
E
30
50
75
QK
25 44 60
GA
21.5
25
38
F
6 - 0.03
8 - 0.036
10 - 0.036
