5.2 D445-2 DP/PN and D455-2 DP/PN dimension drawing
SIMOTION D4x5-2
88 Manual, 02/2012
5.2 D445-2 DP/PN and D455-2 DP/PN dimension drawing







   


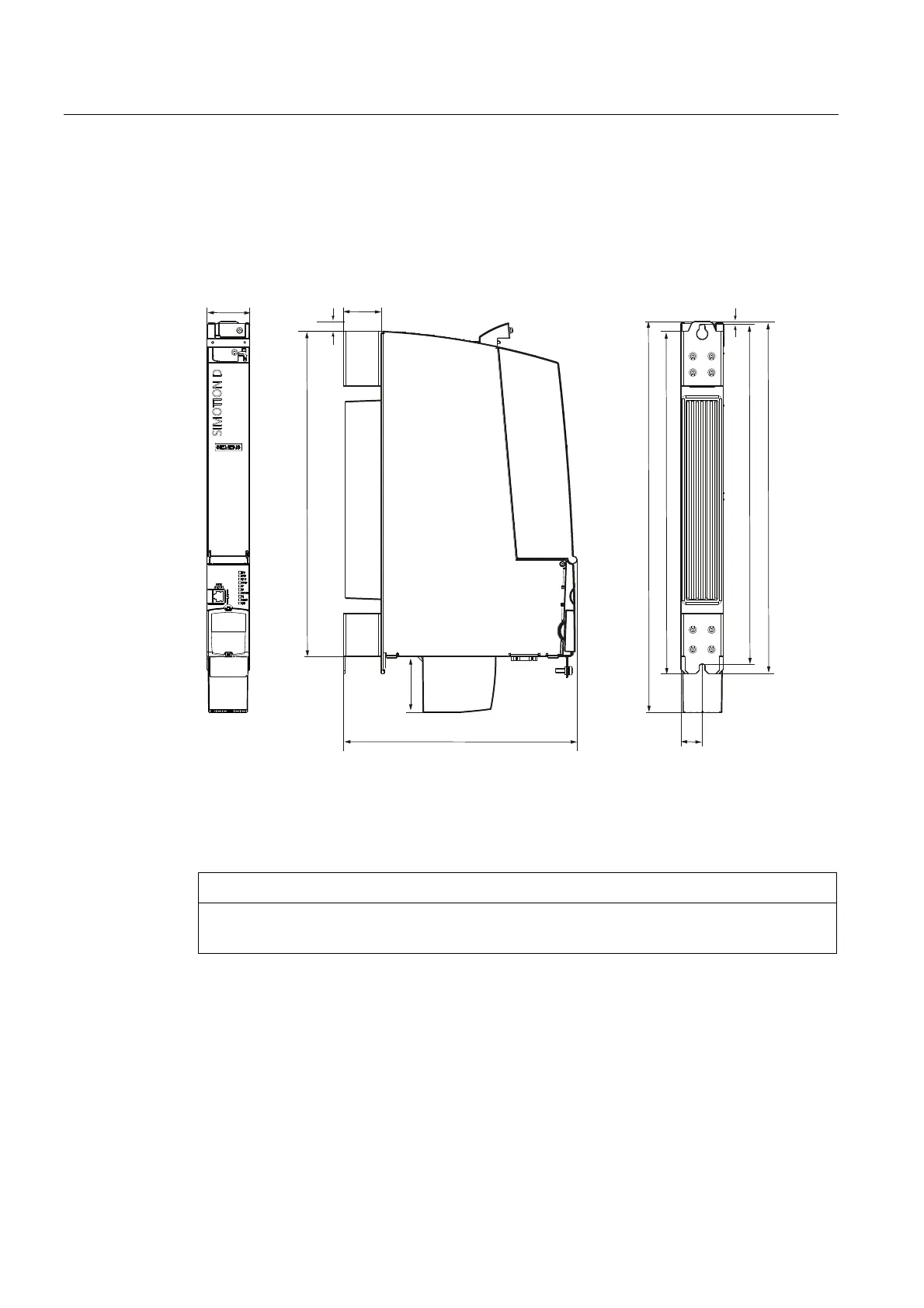

Figure 5-2 D445-2 DP/PN and D455-2 DP/PN dimension drawing
SIMOTION D445-2 DP/PN and D455-2 DP/PN must always be operated with a double fan /
battery module.
NOTICE
The 80 mm clearances above and below the components must be observed. The unit
protects itself from overheating by shutting down.
