6.2 Fan/battery module
SIMOTION D4x5-2
96 Manual, 02/2012
6.2.3 Replace battery in the fan/battery module
Overview
The procedure for replacing the double fan/battery module's battery is described below.
Procedure
Proceed as follows to replace the battery:

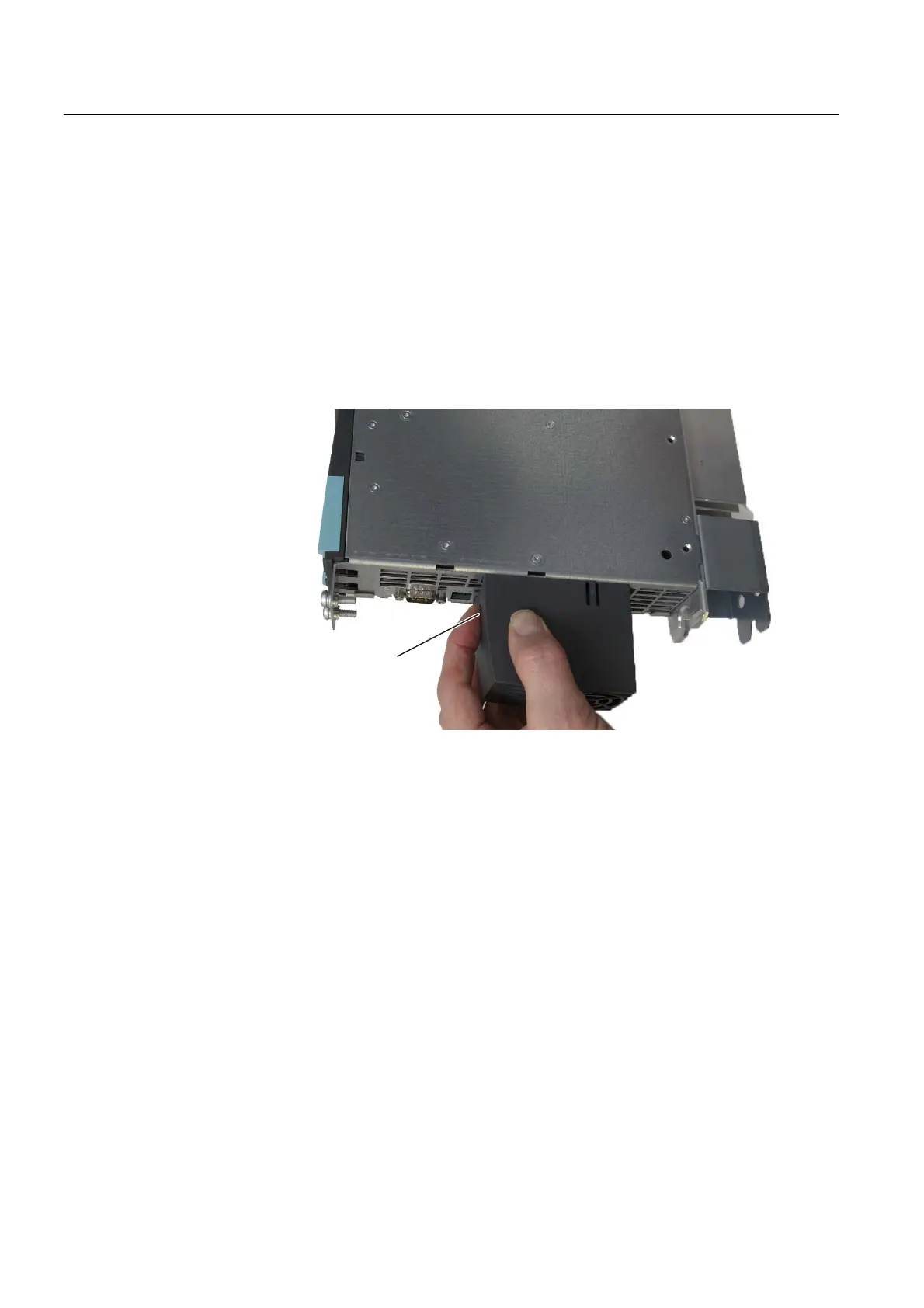

1. Press the latch. This detaches the module from its front latching device.
3UHVVXUHRQODWFK
Figure 6-3 Unlatch the double fan/battery module
2. Tilt the double fan/battery module forwards at an angle and pull out the plastic lug from
the Control Unit cutout.
3. Remove the battery using a screwdriver (at the side) and disconnect the battery from the
module by unplugging the connector.
