7. At the end of the automatic configuration, you are prompted whether you want to "Go
OFFLINE" or "Stay ONLINE" with the drive unit.

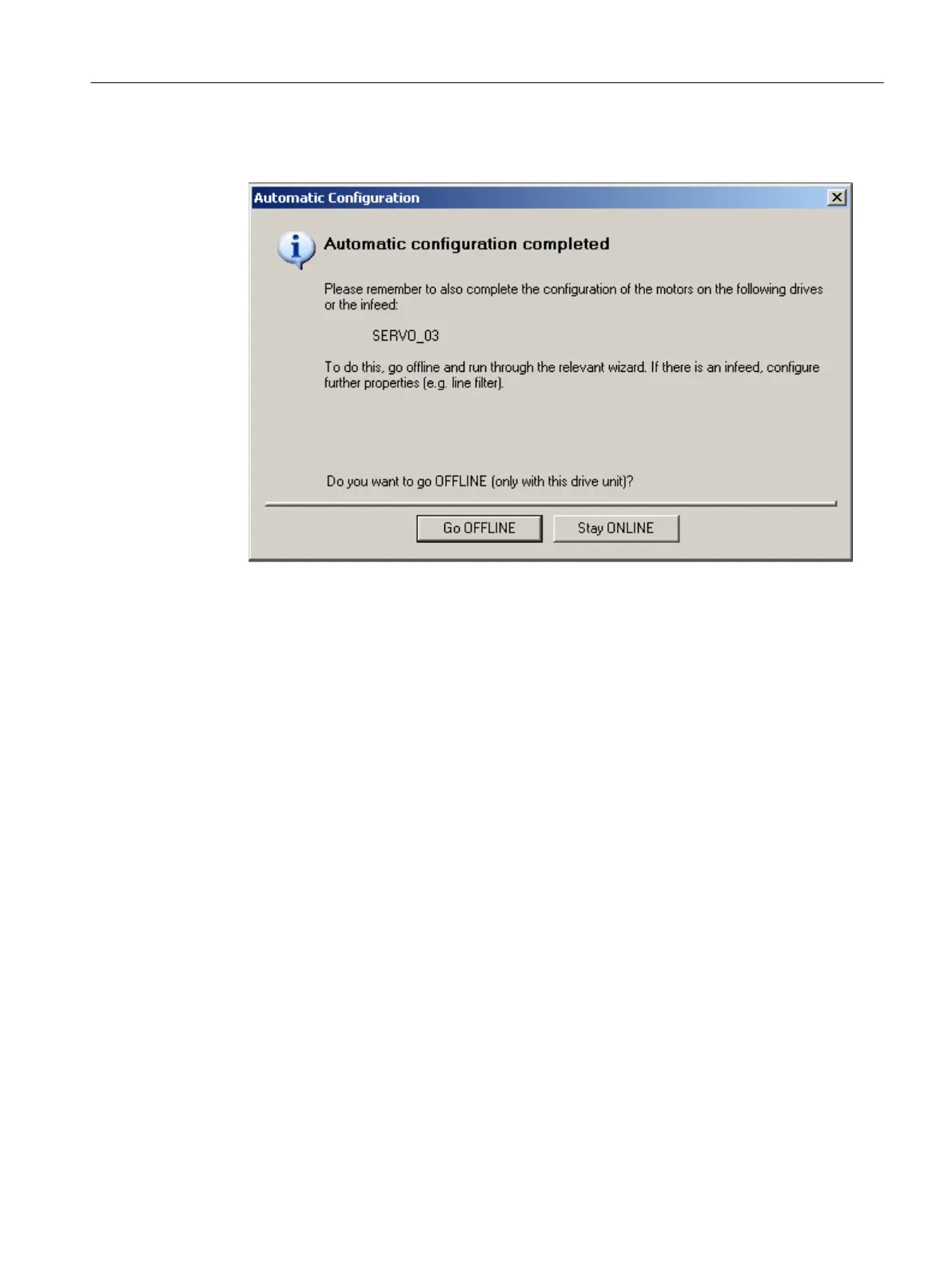

Figure 7-24 Automatic configuration completed
8. Execute the "Copy RAM to ROM ..." function on the D4x5‑2 and on the SINAMICS
Integrated. This saves the project on the CF card so that it does not need to be reloaded
after switching off and on.
Commissioning (software)
7.3 Performing an online configuration for the D4x5-2
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B 207
