Result
The
DRIVE-CLiQ components loaded to the user project by means of automatic configuration
are displayed in the project navigator.

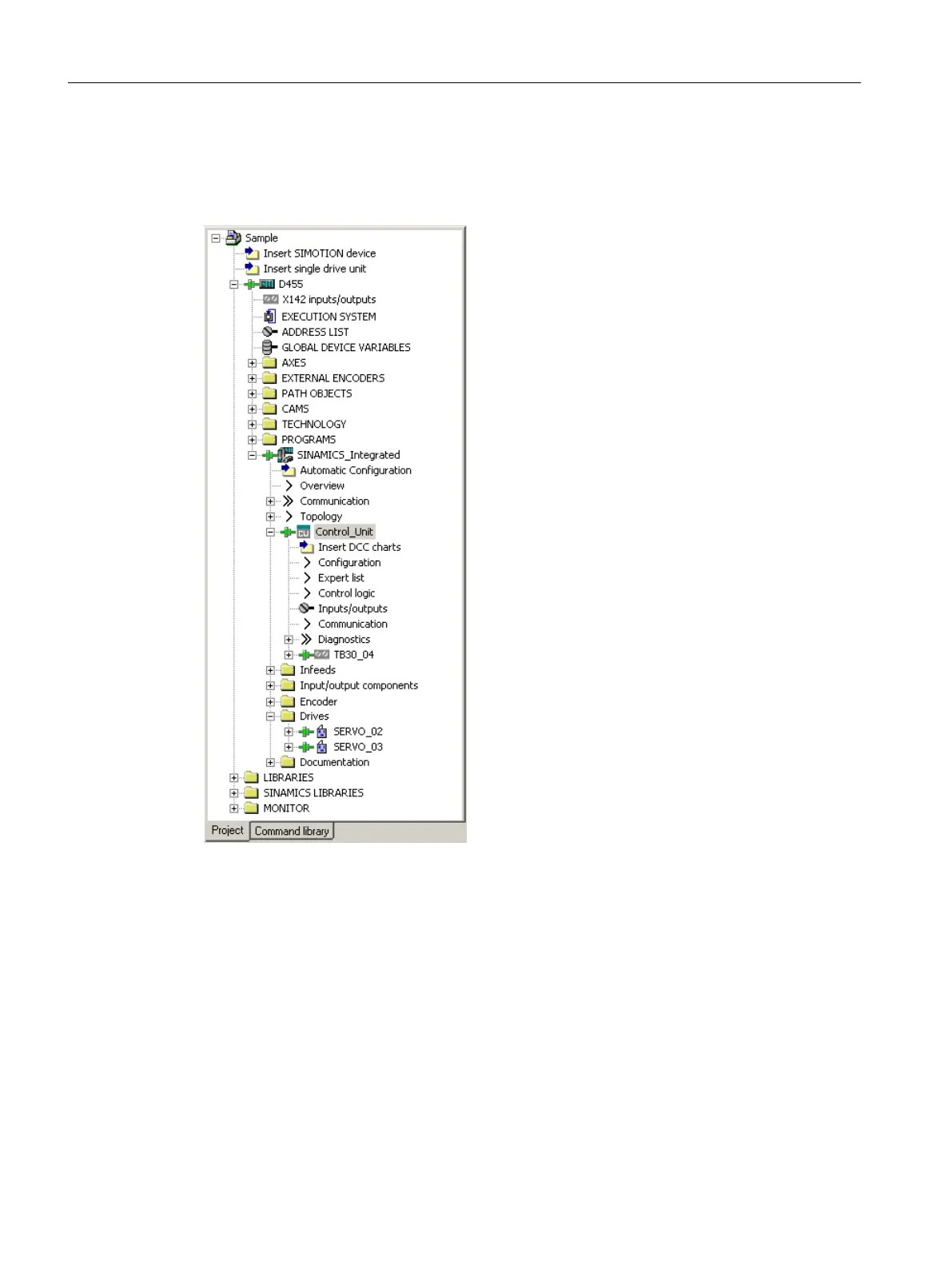

Figure 7-25 Project navigator with real configuration
You must then
●
If required, reconfigure SINAMICS components (e.g. components without a DRIVE‑CLiQ
interface, such as an encoder connected via SMCxx).
● Assign the "TO axis" to "Drive"
Commissioning (software)
7.3 Performing an online configuration for the D4x5-2
SIMOTION D4x5-2
208 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
