3. Applying slight pressure, insert the ("new") micro memory card into the slot of the
SIMOTION C until it snaps into place. Make sure the beveled edge of the micro memory
card faces the ejector (see the following figure).
4. Switch the power supply module on again.
(MHFWRUIRU
PLFURPHPRU\FDUG

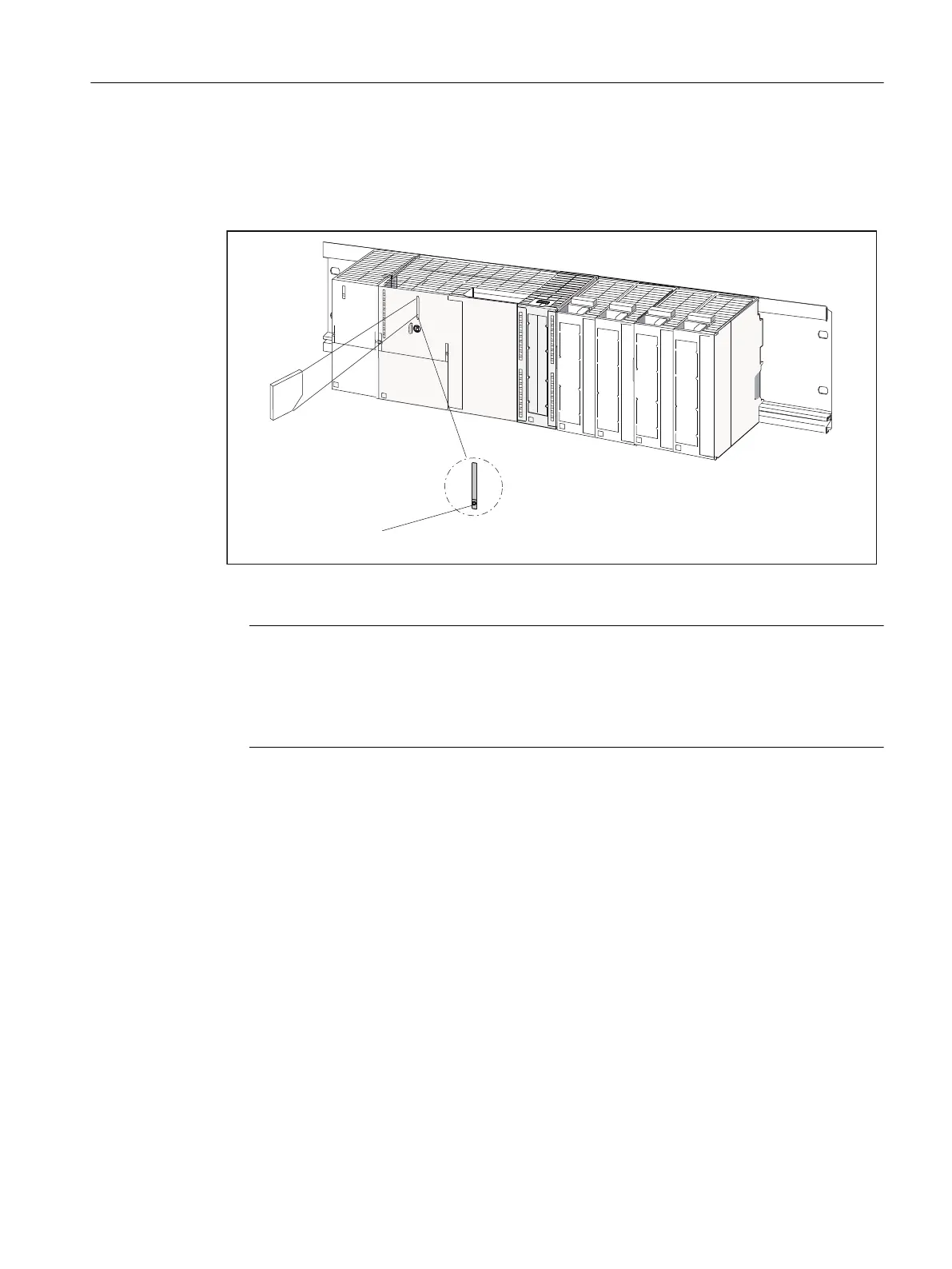

Figure 8-1 Inserting the micro memory card into the SIMOTION C
Note
With the SIMOTION C240 / C240 PN, the micro memory card must always be inserted for
operation.
For the purpose of data backup, the contents of the micro memory card can be copied to
the hard drive of a PG/PC with an MMC card reader.
8.3 Initial Power ON
Requirements
You have completed installation and the wiring of your system with SIMOTION C.
The micro memory card is inserted.
The mode selector must be set to STOP!
Commissioning
8.3 Initial Power ON
SIMOTION C
Operating Instructions, 11/2016, A5E33441428B 139
