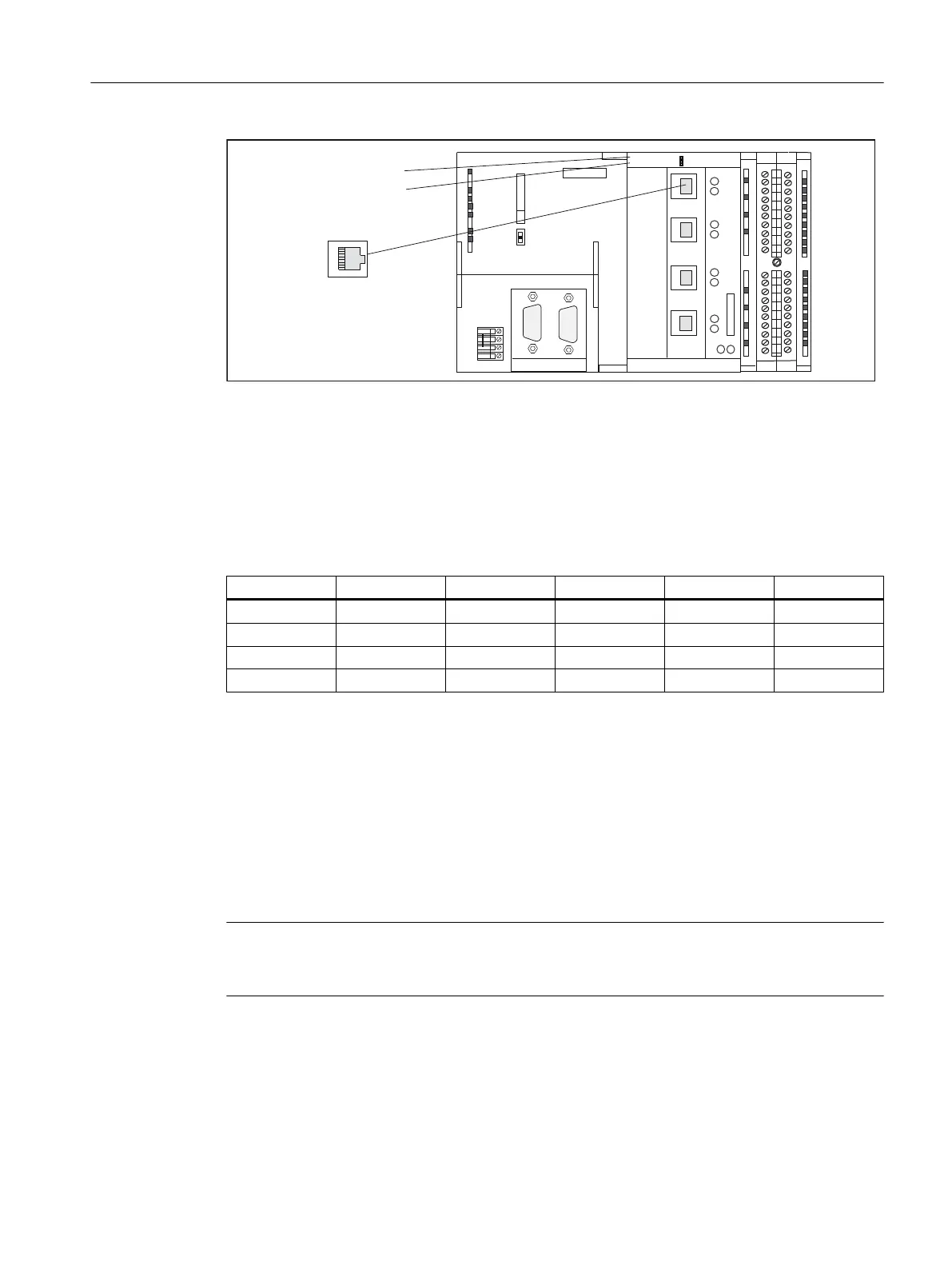

Figure 4-2 X7 interface position (C240 PN)
Interface assignment
Designation: X7 (Ethernet)
Type: 8-pin RJ45 socket
Table 4-2 X7 interface assignment
Pin Name Type Pin Name Type
1 TDP O 5 Not assigned
2 TDM O 6 RDM I
3 RDP I 7 Not assigned
4 Not assigned 8 Not assigned
Signal names
RDP, RDM - Receive Data +/-
TDP, TDM - Transmit Data +/-
Signal type
I - signal input
O - signal output
Note
You will find additional information about Ethernet in the SIMOTION SCOUT Communication
System Manual.
Interfaces
4.2 Ethernet interface
SIMOTION C
Operating Instructions, 11/2016, A5E33441428B 43

Siemens SIMOTION Specifications

General

Power Supply	24 V DC
Interfaces	PROFIBUS, PROFINET, Ethernet
Product type	Control Unit
Series	SIMOTION D
Display Output	VGA
