● Teleservice adapter
● Drive units with PROFIBUS DP interface (e.g. SIMODRIVE 611 universal) according to
PROFIdrive profiles / IEC61800-7.
Note
A teleservice adapter can only be connected to one of the two interfaces.
All released modules and devices are listed in the
PM 21
Catalog and in chapter I/O
modules approved for SIMOTION (Page 21). This document is supplied in electronic format
with SIMOTION SCOUT.
Take note of the documentation on the individual modules or devices!
Interface positions

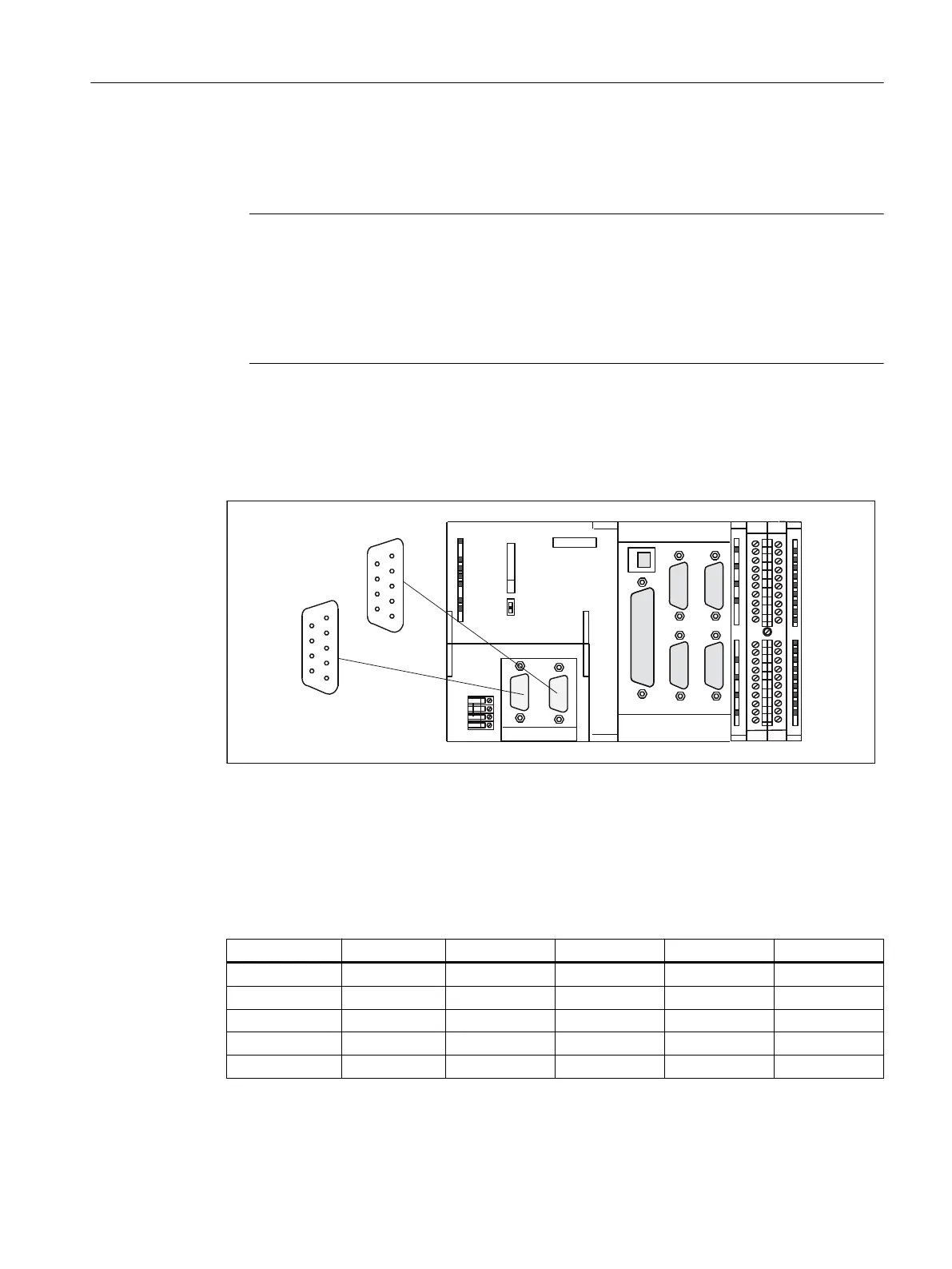

The following figure shows the mounting position and the designation of the interfaces on the
module.
;
;'303,
;'3
6,(0(16
;
;
;;
;;
;
;
'3
'303,
&
05(6
6723
581
Figure 4-4 Position of connectors X8, X9
Interface assignments
Designation: X8, X9 DP1, DP2/MPI Type: 9-pin Sub-D socket connector
Table 4-4 X8, X9 interface assignments
Pin Name Type Pin Name Type
1 Not assigned 6 P5 VO
2 M24 VO 7 P24 VO
3 B I/O 8 A I/O
4 RTS O 9 Not assigned
5 M5 VO
Interfaces
4.4 PROFIBUS DP interfaces
SIMOTION C
Operating Instructions, 11/2016, A5E33441428B 47
