Use as counter input on X3 to X6
An available encoder input of an axis channel (e.g. for a speed-controlled axis) can be used
as an input for a 16-bit up/down counter (90-degree pulse train of a connected TTL encoder,
zero pulse not required). The counter value can be accessed by means of an I/O variable.

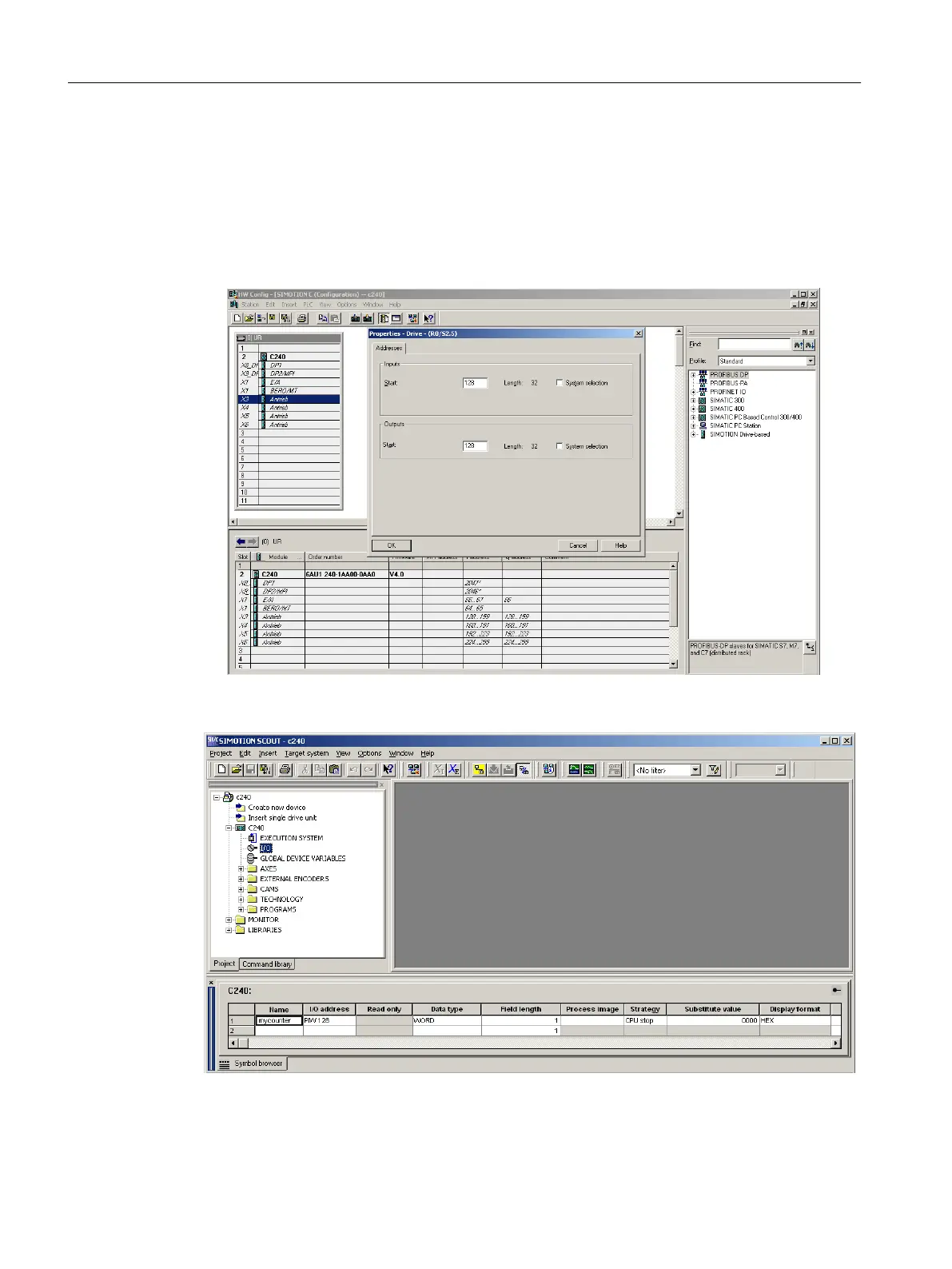

Configuration procedure in SIMOTION SCOUT:
1. Specification of start address in the hardware configuration.
2. Use of the available encoder input as an additional counter using an incremental encoder.
Interfaces
4.7 Possible uses of onboard drive and measuring system interface in the application (C230-2, C240)
SIMOTION C
68 Operating Instructions, 11/2016, A5E33441428B
