Transport, Unpacking, Installation 12.96
2-6 Siemens AG 6SE7087-6BM70
SIMOVERT MASTER DRIVES Operating Instructions
C)
A)
B)
50
A) = PE connection (8 x 240 mm )
B) = Power connection output (8 x 240 mm )
C) = Cable duct for control cables from the Master to the Slave
View without cover 10460/10470 View without side panel
Divided coverBottom cover: transparent
Cover including
bolt head
1) Painted transport rail
2) Only in the side panel left
3) Cut-out in the rear panel
Top cover: transparent

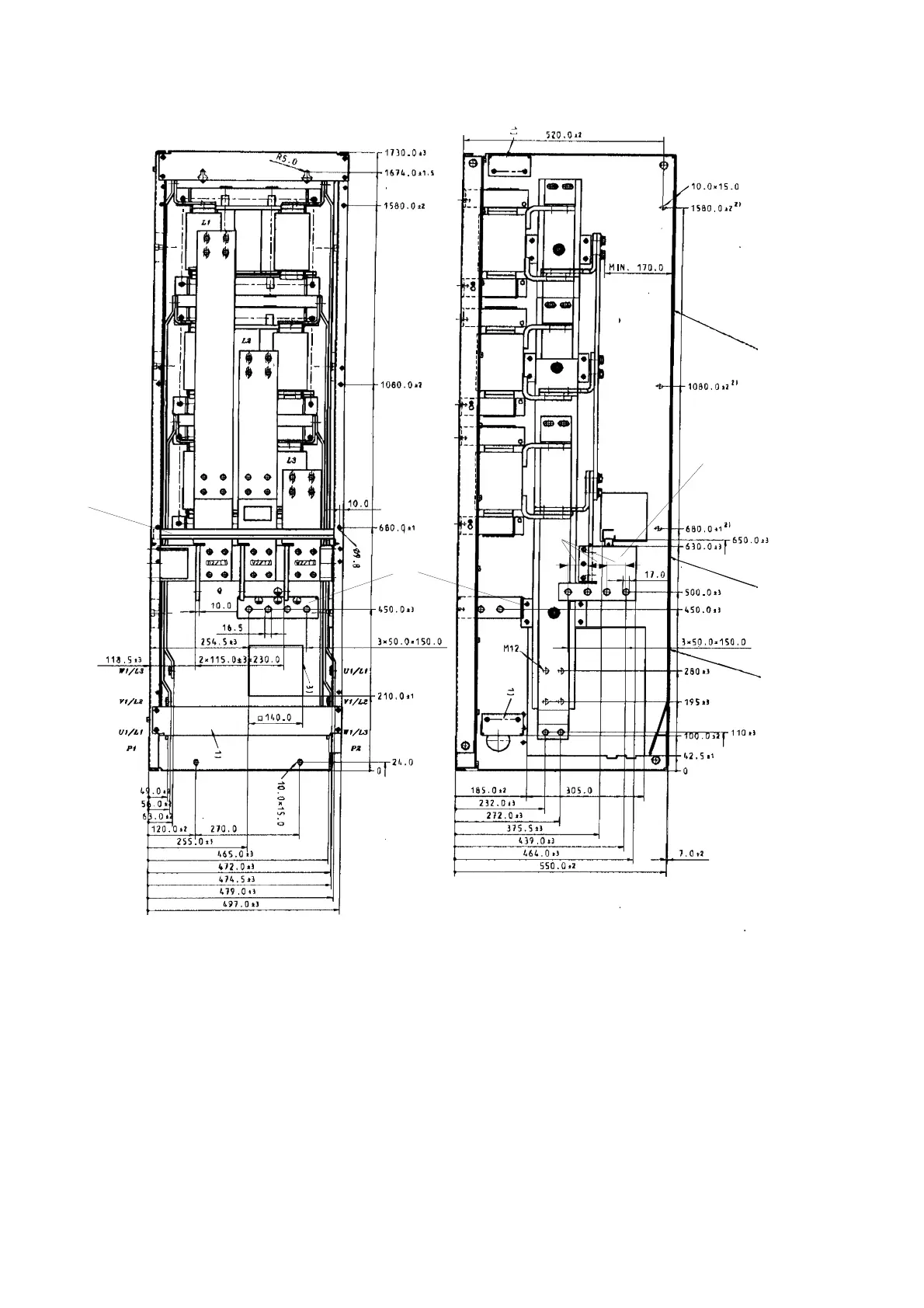

Fig. 2.3 Reactor chassis, Type of construction M
