Accessories
8
Available components
● Accessory kit / shield connection kit (includes the upper shield plate)
● Mounting frames for PT Power Modules
● Mounting grips for PT Power Modules - frame sizes FSD ... FSF
● Control Unit Adapter Kit CUA20, FSA ... FSG
● Line harmonics filters for frame sizes FSB … FSG
● Line reactors for frame sizes FSA … FSC
Line reactors are not required for frame sizes FSD … FSG.
● External line filters, Class B (regarding conducted emissions) for frame sizes FSA … FSC
No Class B filters are available for frame sizes FSD … FSG.
● Braking resistors
● Brake Relay or Safe Brake Relay for controlling a motor holding brake
● Output reactors
● Sine-wave filters
● dv/dt filter plus Voltage Peak Limiter
Connection components
Connection overview for the electrical components
Connection overview (Page 53).
8.1 Top shield plate - FSD … FSG
The shield plate is included in the accessory kit / shield connection kit. Article numbers:
Spare parts (Page 115)

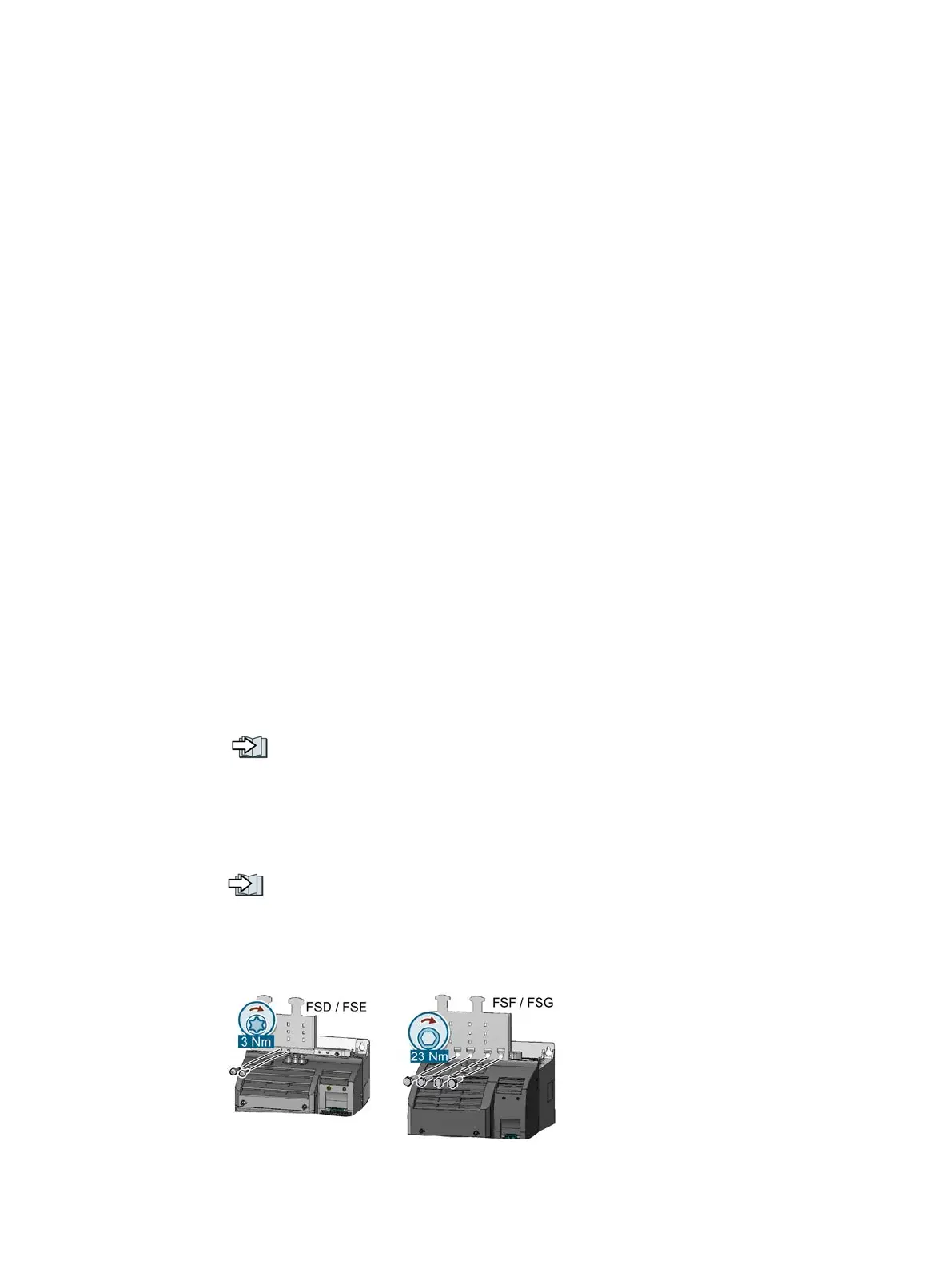

Fasten the shield plate as shown in the graphic:
● FSD and FSE: 2 x M5 / 3 Nm
● FSF and FSG: 4 x M8 / 23 Nm
