3 Setting up and commissioning the application
3.5 Loading the software
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
13
Copyright  Siemens AG 2018 All rights reserved
No.
Action
Remarks

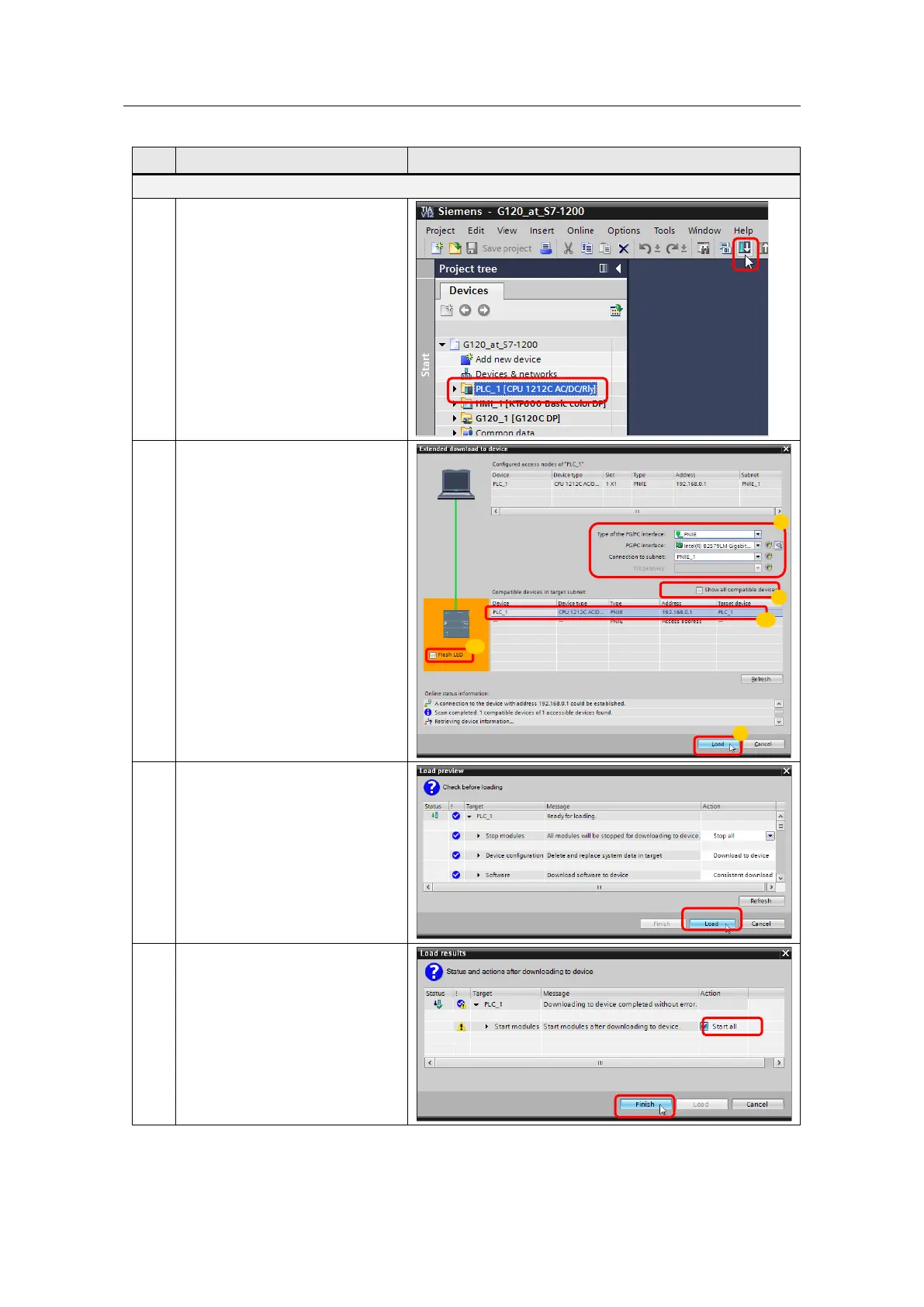

Loading the STEP 7 program into the SIMATIC controller
5.
Load the program into the
SIMATIC controller.
6.
If the “Extended download”
window appears, proceed as
follows:
1. Select the used PG/PC
interface to connect with the
Ethernet subnet.
2. Checkmark “Show all
compatible devices” when
receiving a respective online
status information in the lower
part of the window
3. Select the SIMATIC controller
to be used in the target
subnet. If necessary, identify
it by “Flash LED”.
4. Acknowledge with the “Load”
button.
7.
Start the download process.
8.
Exit the download with the “Start
all” option.
1
2
3a
3b
4

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
