8.5.3 Replacing the fan of the additional cooler (degree of protection IP54)
8.5.3.1
Removing the fan of the 3 kW additional cooler

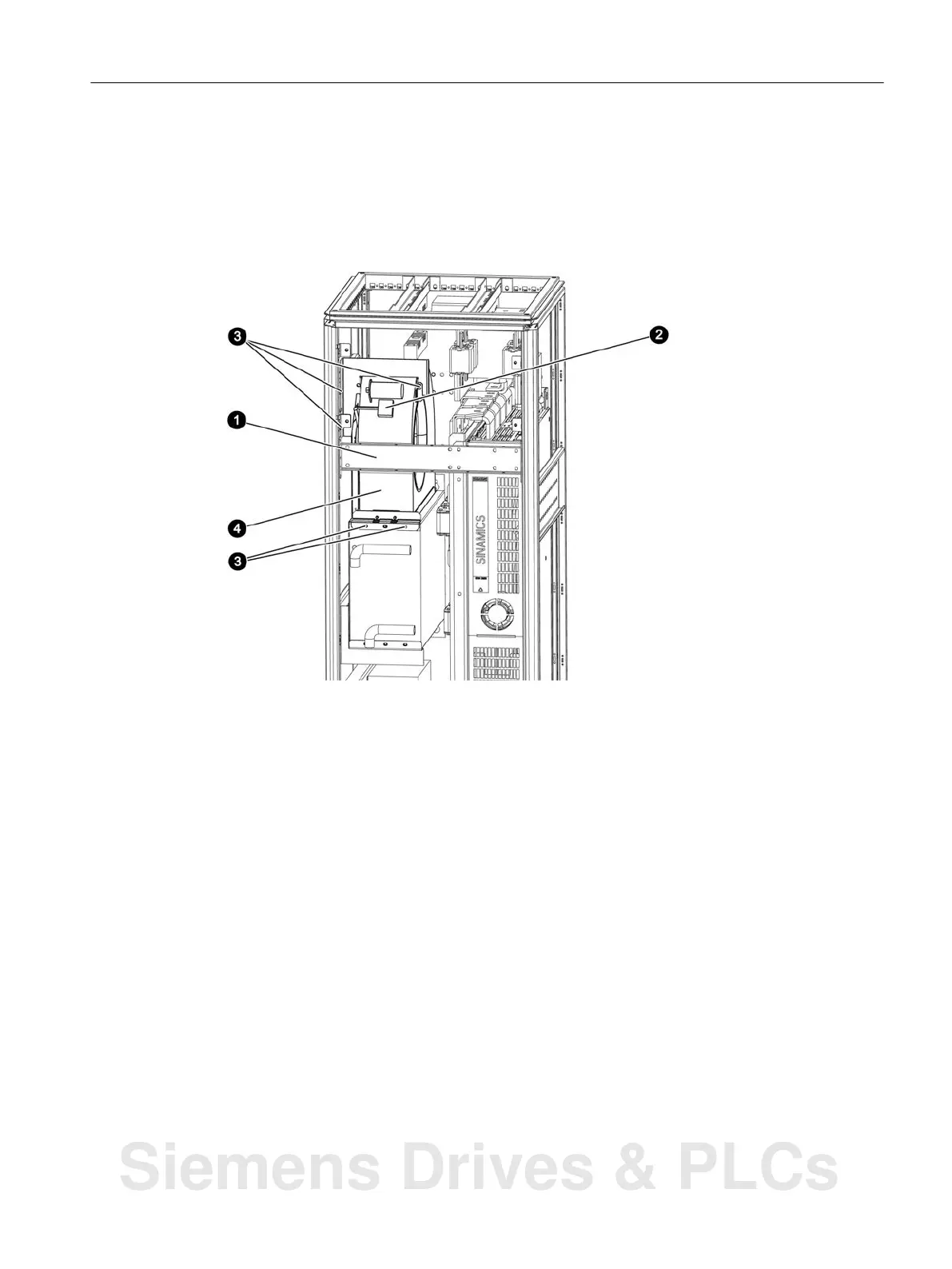

Figure 8-9 Replacing the fan motor
Removal
The steps for removal are numbered in accordance with the figures in the diagram.
1.
Release and remove the holding plate.
2. Release and remove the connecting cable at the terminal block.
3. Release and remove the mounting plate of the fan.
4. Withdraw the fan from the guides. When doing this, do not damage any of the signal cables.
Servicing
8.5 Repairs
Applications for Cabinet Modules, liquid cooled
Operating Instructions, 04/2015, A5E35974555A 129
