CAUTION
Danger of injury caused by spray water
The coolant is harmful to eyes and skin and can damage surfaces.
If the air escapes intermittently, coolant spray can reach your skin or eyes.
Therefore,
wear appropriate protective clothing for all work on the converter. However, if your
eyes or skin do come into contact with coolant, rinse the affected area thoroughly with tap
water as soon as possible. If coolant has escaped, remove the liquid from the affected
surfaces.
Please refer to the EU safety data sheet of the coolant manufacturer.
Venting Basic Line Modules, Active Line Modules, Motor Modules
Note
Stainless steel cooler
You
do not have to vent Active Line Modules and Motor Modules, size FXL/GXL with stainless
steel cooler.
Vent all Basic Line Modules, Active Line Modules and Motor Modules. Proceed as follows:
1.
Hold the blue venting hose outside the cabinet in a bucket.
2. Open the venting valve ① at the Basic Line Module, Active Line Module or Motor Module
so that air can escape. Continue venting until clear cooling liquid escapes in a continuous
stream.
3. Close the venting valve.
① Venting valve

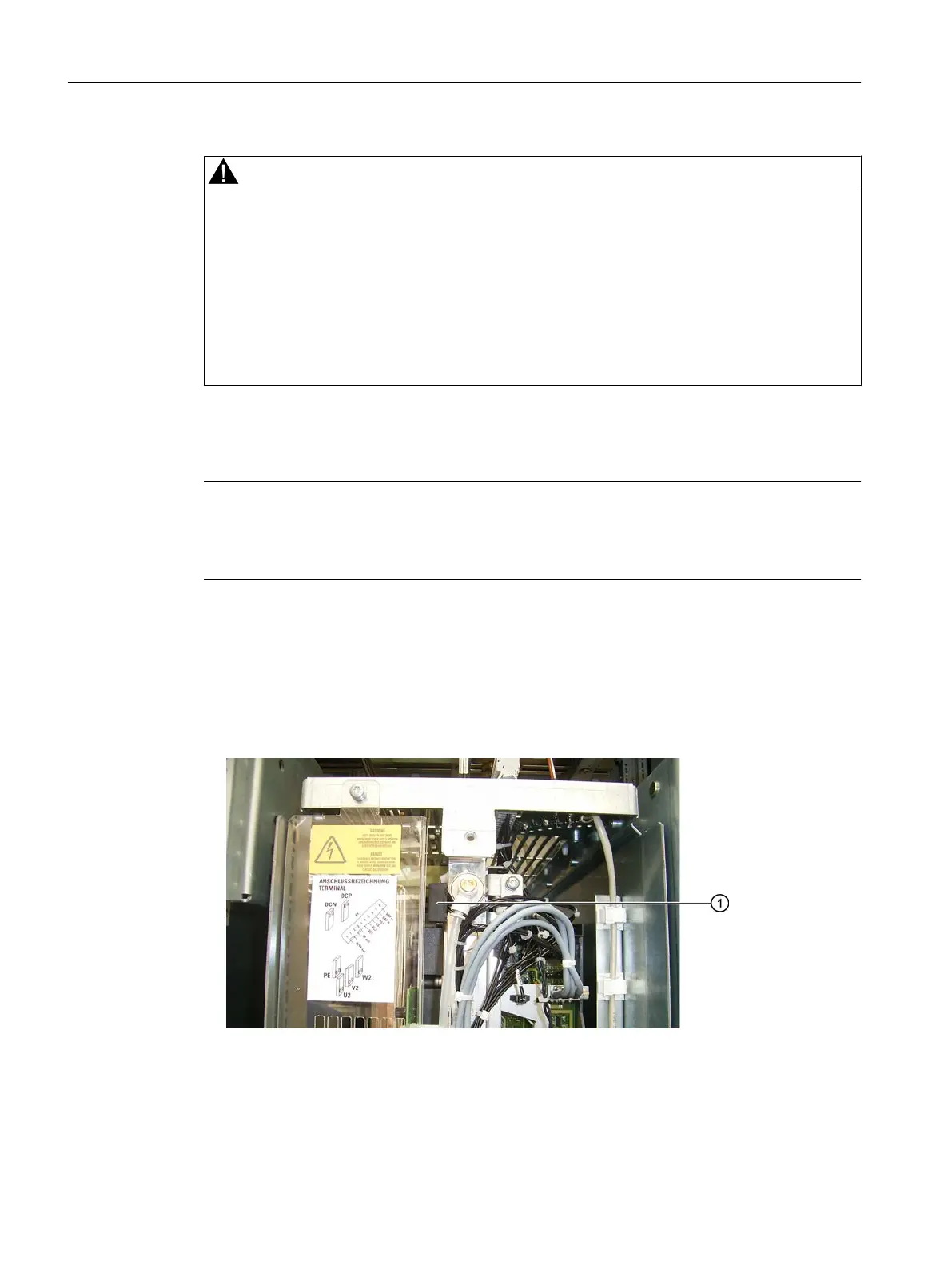

Figure 6-4 Example: Venting Motor Modules
Commissioning
6.2 Commissioning the cooling unit
Applications for Cabinet Modules, liquid cooled
