SINAMICS V20 Inverter
Operating Instructions, 07/2012, A5E03728167
13
Introduction
2

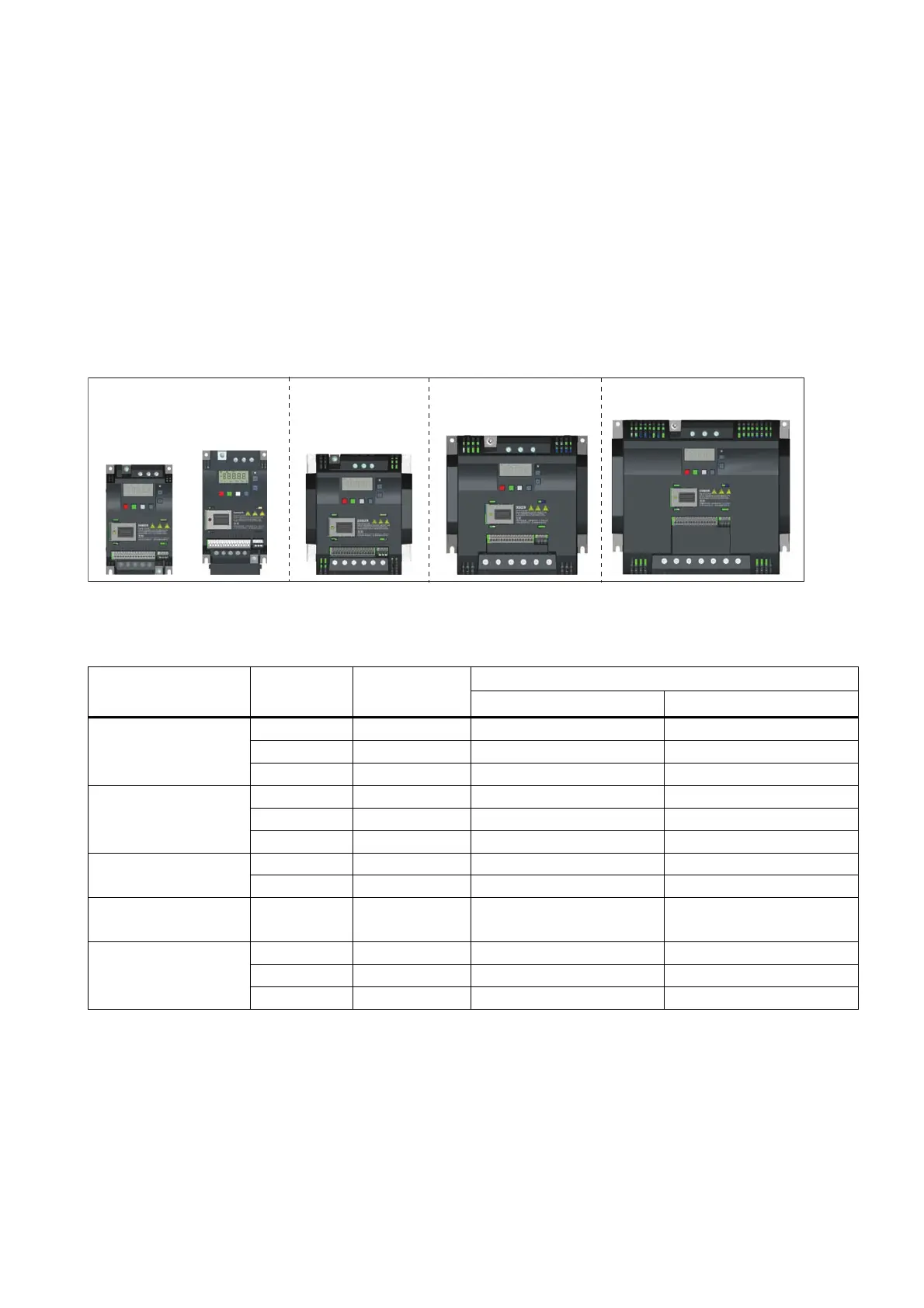

2.1 Components of the inverter system
The SINAMICS V20 is a range of inverters designed for controlling the speed of three phase
asynchronous motors. The inverter is available in four frame sizes.
Frame size B
Frame size C Frame size DFrame size A
ZLWKRXWIDQ ZLWKIDQ
3 AC 400 V variants
Order number Component Rated output
power
Rated output
current
unfiltered filtered
0.37 kW 1.3 A 6SL3210-5BE13-7UV0 6SL3210-5BE13-7CV0
0.55 kW 1.7 A 6SL3210-5BE15-5UV0 6SL3210-5BE15-5CV0
Frame size A
(without fan)
0.75 kW 2.2 A 6SL3210-5BE17-5UV0 6SL3210-5BE17-5CV0
1.1 kW 3.1 A 6SL3210-5BE21-1UV0 6SL3210-5BE21-1CV0
1.5 kW 4.1 A 6SL3210-5BE21-5UV0 6SL3210-5BE21-5CV0
Frame size A
(with single fan)
2.2 kW 5.6 A 6SL3210-5BE22-2UV0 6SL3210-5BE22-2CV0
3.0 kW 7.3 A 6SL3210-5BE23-0UV0 6SL3210-5BE23-0CV0 Frame size B
(with single fan)
4.0 kW 8.8 A 6SL3210-5BE24-0UV0 6SL3210-5BE24-0CV0
Frame size C
(with single fan)
5.5 kW 12.5 A 6SL3210-5BE25-5UV0 6SL3210-5BE25-5CV0
7.5 kW 16.5 A 6SL3210-5BE27-5UV0 6SL3210-5BE27-5CV0
11 kW 25 A 6SL3210-5BE31-1UV0 6SL3210-5BE31-1CV0
Frame size D
(with two fans)
15 kW 31 A 6SL3210-5BE31-5UV0 6SL3210-5BE31-5CV0
Options and spare parts
For detailed information of the options and spare parts, refer to Appendices "Options
(Page
247)" and "Spare parts - replacement fans (Page 264)".
