3.1 Mounting orientation and clearance
The inverter must be mounted in an enclosed electrical operating area or a control cabinet.

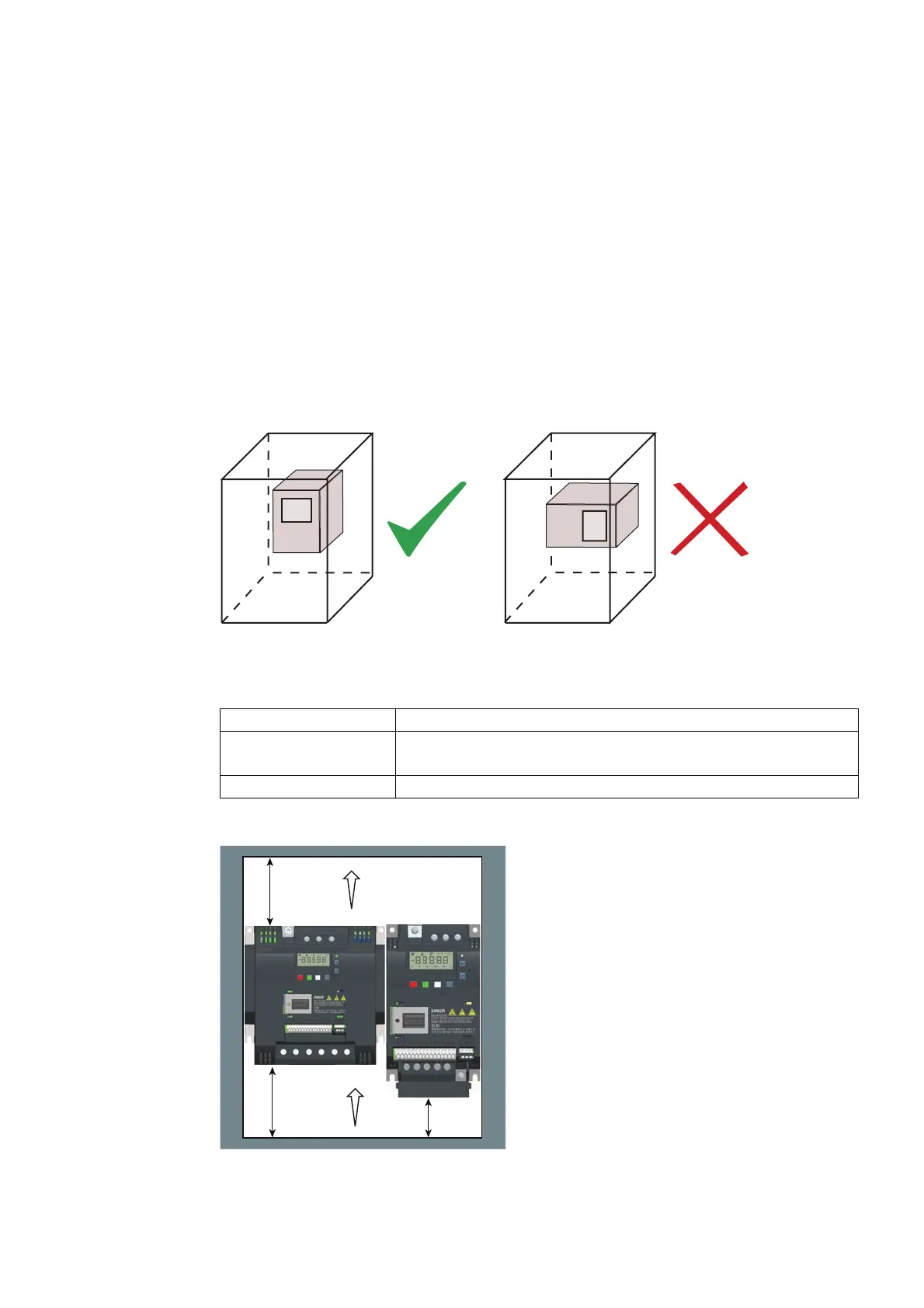

Mounting orientation
Always mount the inverter in an upright position.
,QYHUWHU
,QYHUWHU
Mounting clearance
Top ≥ 100 mm
Bottom ≥100 mm (for frame sizes B ... D, and frame size A without fan)
≥ 85 mm (for fan-cooled frame size A)
Side ≥ 0 mm
DLU
DLU
PP
PP
PP
