Mechanical installation
3.2 Cabinet panel mounting (frame sizes A ... D)
SINAMICS V20 Inverter
16 Operating Instructions, 07/2012, A5E03728167
3.2 Cabinet panel mounting (frame sizes A ... D)
You can mount the inverter directly on the surface of the cabinet panel.
An additional mounting method is also available for different frame sizes. For more details,
refer to the following section:
●
Push-through mounting (frame sizes B ... D) (Page 18)

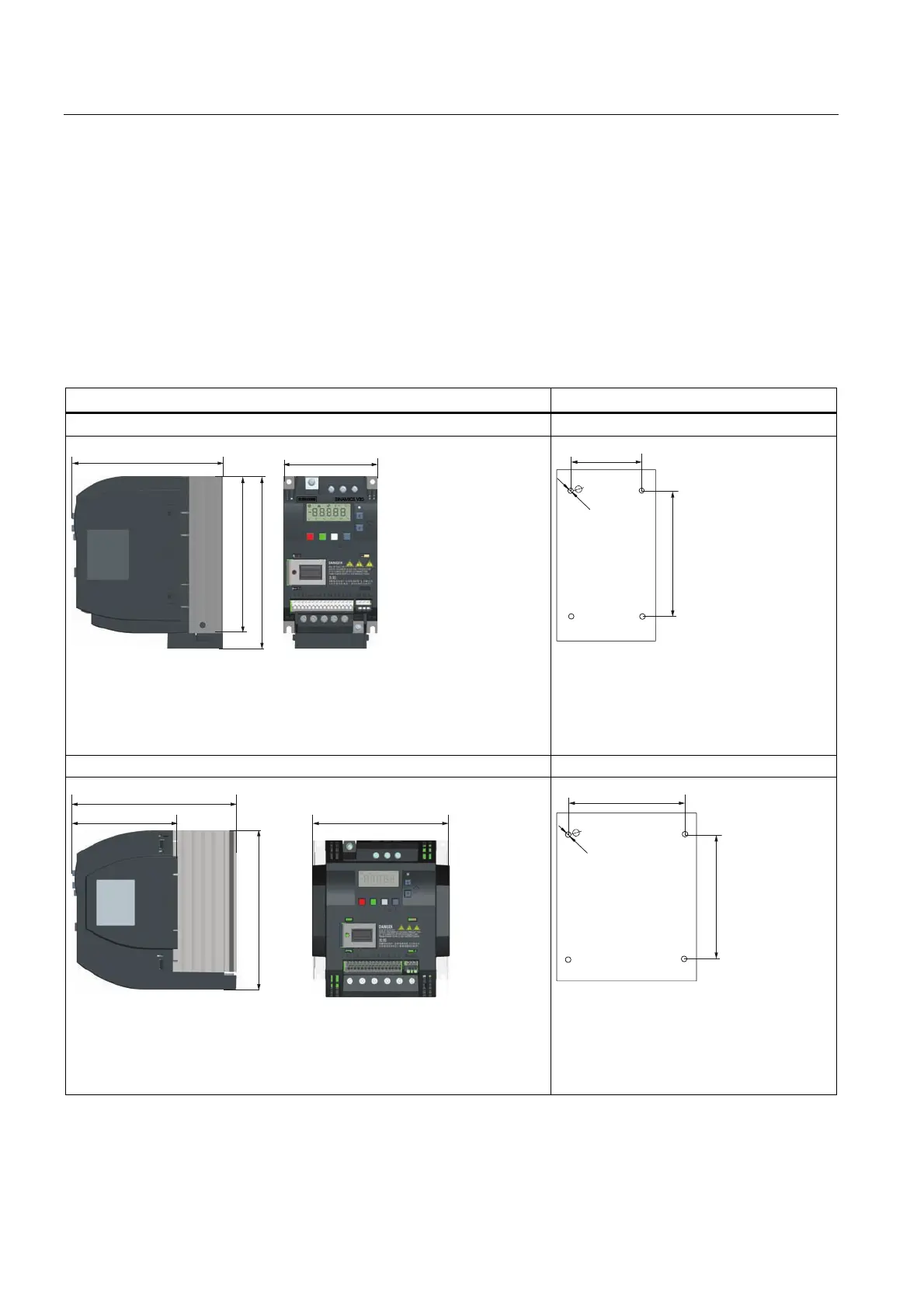

Outline dimensions and drill patterns
Dimensions (mm) Drill pattern (mm)
Frame size A





1)
Height of frame size A with fan





Fixings:
4 x M4 screws
4 x M4 nuts
4 x M4 washers
Tightening torque: 1.8 Nm ± 10%
Frame size B


 






Fixings:
4 x M4 screws
4 x M4 nuts
4 x M4 washers
Tightening torque: 1.8 Nm ± 10%
