Mechanical installation
3.2 Cabinet panel mounting (frame sizes A ... D)
SINAMICS V20 Inverter
Operating Instructions, 07/2012, A5E03728167
17

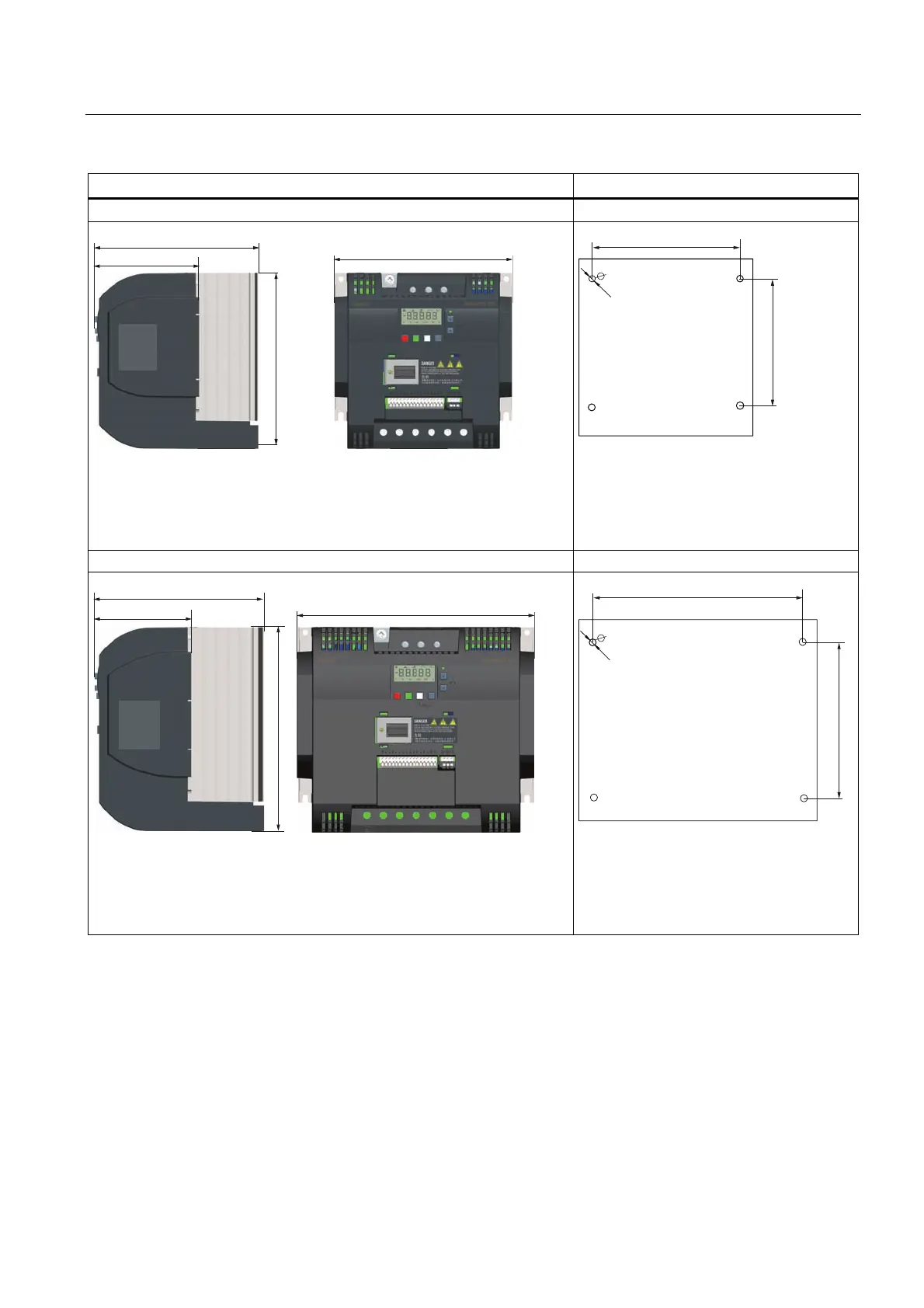

Dimensions (mm) Drill pattern (mm)
Frame size C









Fixings:
4 x M5 screws
4 x M5 nuts
4 x M5 washers
Tightening torque: 2.5 Nm ± 10%
Frame size D









Fixings:
4 x M5 screws
4 x M5 nuts
4 x M5 washers
Tightening torque: 2.5 Nm ± 10%
