Siemens SINAMICS V20 Series - Setting Common Parameters

Commissioning
5.5 Quick commissioning
SINAMICS V20 Inverter
Operating Instructions, 07/2012, A5E03728167
55
5.5.1.5 Setting common parameters
Functionality
This menu provides some common parameters for inverter performance optimization.
Text menu
If you set P8553 to 1, parameter numbers in this menu are replaced with short text.

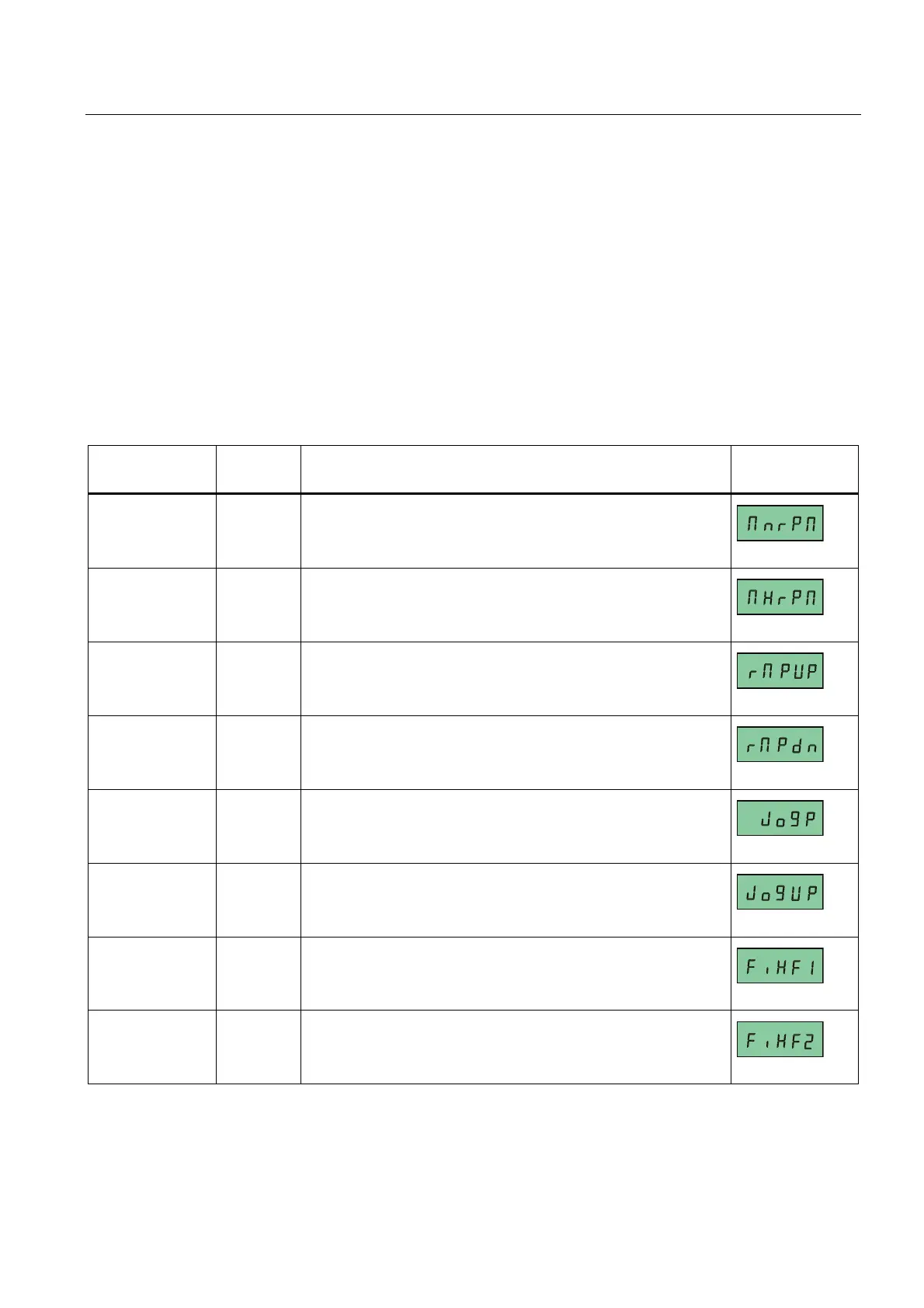

Setting parameters
Parameter Access
level
Function Text menu
(if P8553 = 1)
P1080[0] 1 Minimum motor frequency
(MN RPM)
P1082[0] 1 Maximum motor frequency
(MX RPM)
P1120[0] 1 Ramp-up time
(RMP UP)
P1121[0] 1 Ramp-down time
(RMP DN)
P1058[0] 2 JOG frequency
(JOG P)
P1060[0] 2 JOG ramp-up time
(JOG UP)
P1001[0] 2 Fixed frequency setpoint 1
(FIX F1)
P1002[0] 2 Fixed frequency setpoint 2
(FIX F2)
