Commissioning
5.1 The built-in Basic Operator Panel (BOP)
SINAMICS V20 Inverter
Operating Instructions, 07/2012, A5E03728167
35

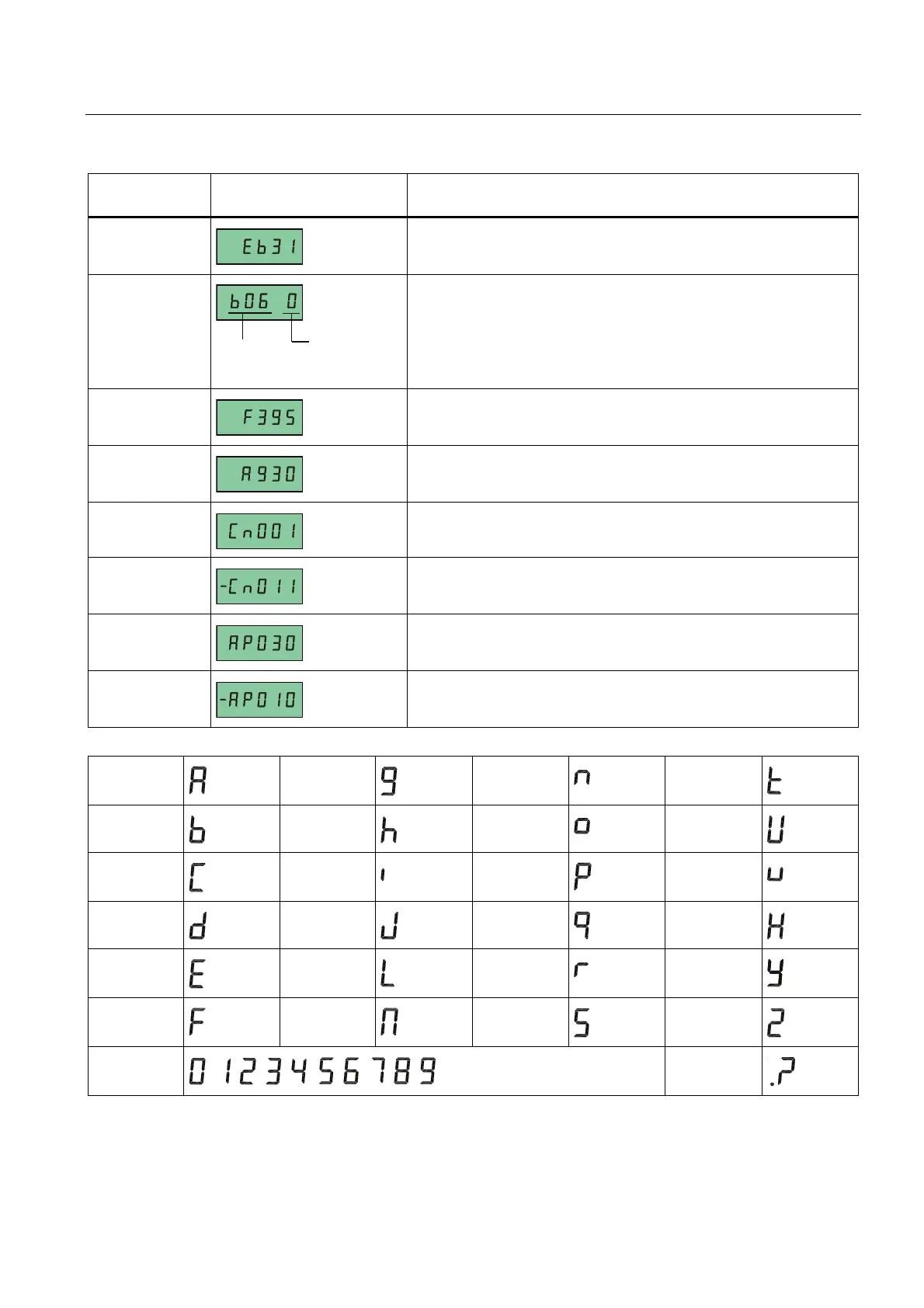

Screen
information
Display Meaning
Hexadecimal
number
Parameter value in hex format
"bxx x"
ELWQXPEHU
VLJQDOVWDWH
/RZ
+LJK
Parameter value in bit format
"Fxxx"
Fault code
"Axxx"
Alarm code
"Cnxxx"
Settable connection macro
"-Cnxxx"
Current selected connection macro
"APxxx"
Settable application macro
"-APxxx"
Current selected application macro
"A"
"G"
"N"
"T"
"B"
"H"
"O"
"U"
"C"
"I"
"P"
"V"
"D"
"J"
"Q"
"X"
"E"
"L"
"R"
"Y"
"F"
"M"
"S"
"Z"
0 ... 9
"?"
