Speed Control with SINAMICS V90 and S7-1200 via PROFINET
Entry-ID: 109739222, V1.0, 07/2016
Siemens AG 2016 All rights reserved
2 Solution
2.1 Solution overview
Schema Display

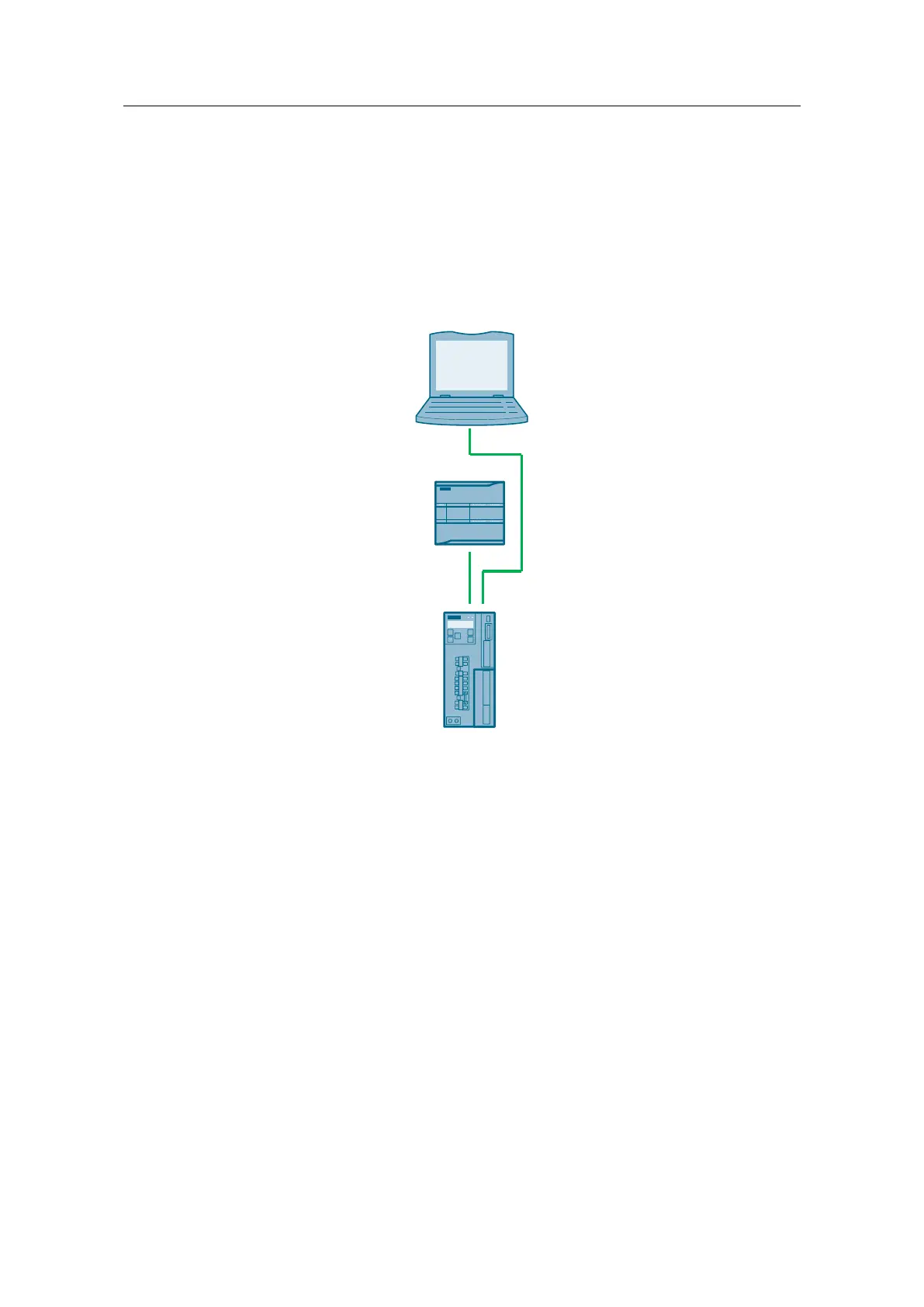

The following figure displays the most important components of the solution:
Figure 2-1
IO device
IO Supervisor
IO controller
Delimitation
This application does not include a description of
PROFINET communication
SINAMICS V90 PN version
BOP operation of SINAMICS V90
Basic knowledge of these topics is assumed.
Required knowledge
Basic knowledge on TIA Portal is assumed.
