Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
462 01/2017

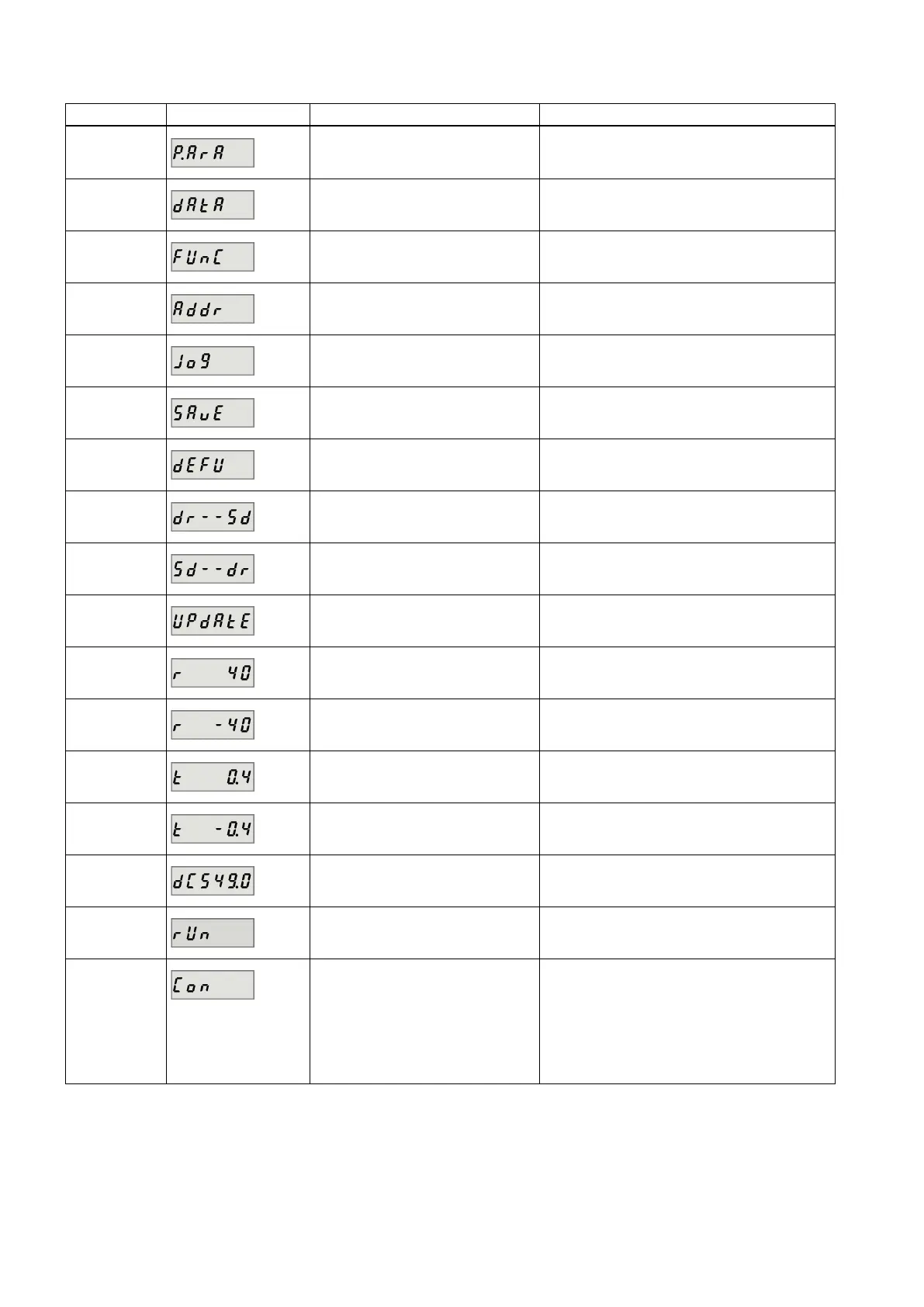

Display
Example
Description
Remarks
P.ara
Editable parameter group The dot means that at least one parameter
has been changed without saving
Data
Read-only parameter group -
Func
Function group See Section "Auxiliary functions (Page 466)".
Addr
Set Drive Bus address See Section "Setting Drive Bus address
(Page 467)".
Jog
Jog function See Section "Jog (Page 467)".
Save
Save data in drive See Section "Saving parameter set in drive
(RAM to ROM) (Page 468)".
defu
Restore drive to default settings See Section "Setting parameter set to default
(Page 468)".
dr--sd
Save data from drive to SD card See Section "Transferring data (drive to SD
card) (Page 468)".
sd--dr
Upload data from SD card to drive See Section "Transferring data (SD card to
drive) (Page 469)".
Update
Update firmware See Section "Updating firmware (Page 469)".
r xxx
Actual speed (positive direction) -
r -xxx
Actual speed (negative direction) -
T x.x
Actual torque (positive direction) -
T -x.x
Actual torque (negative direction) -
DCxxx.x
Actual DC link voltage -
run
The motor is running -
Con
The Drive Bus communication
between the NC and the servo
drive is established. In this case,
the BOP is protected from any
operations except clearing alarms
and acknowledging faults.
-
