Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
01/2017
461

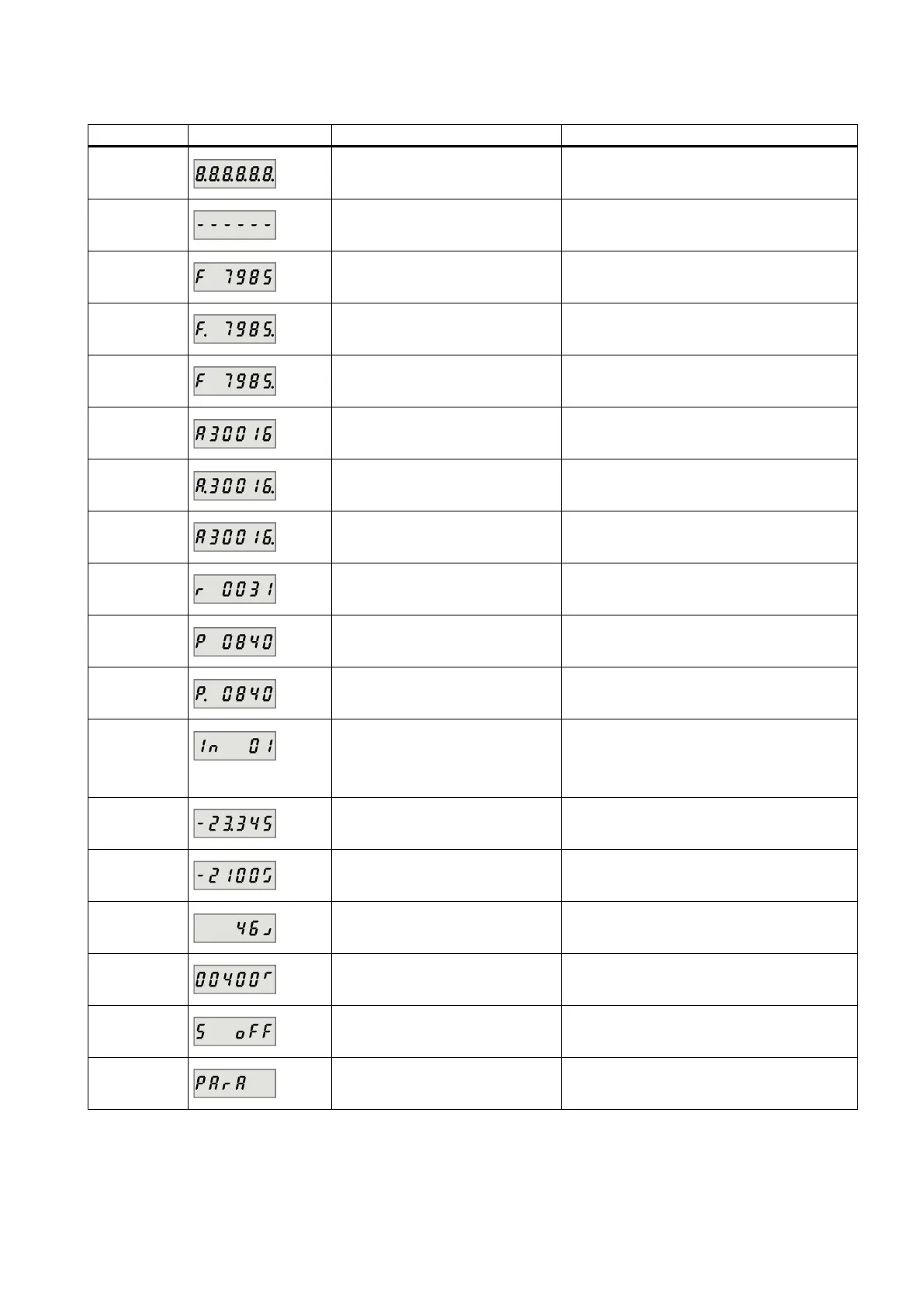

BOP display
Display
Example
Description
Remarks
8.8.8.8.8.8.
Drive is in startup state Takes 20 s to 30 s
------
Drive is busy In the case of a task being executed
Fxxxxx
Fault code In the case of a single fault
F.xxxxx.
Fault code of the first fault In the case of multiple faults
Fxxxxx.
Fault code In the case of multiple faults
Axxxxx
Alarm code In the case of a single alarm
A.xxxxx.
Alarm code of the first alarm In the case of multiple alarms
Axxxxx.
Alarm code In the case of multiple alarms
Rxxxxx
Parameter number Read-only parameter
Pxxxxx
Parameter number Editable parameter
P.xxxxx
Parameter number Editable parameter; the dot means that at
least one parameter has been changed
In xx
Indexed parameter Figure after "In" indicates the number of indi-
ces.
For example, "In 01" means that this indexed
parameter is 1.
xxx.xxx
Negative parameter value -
xxx.xx<>
Current display can be moved to
left or right
-
xxxx.xx>
Current display can be moved to
right
-
xxxx.xx<
Current display can be moved to
left
-
S Off
Operating display: servo off -
Para
Editable parameter group -
