2.5 Turning cycles
Turning Part 2: Programming (Siemens instructions)
156 Programming and Operating Manual, 05/2012, 6FC5398-5DP10-0BA0
Programming example 2

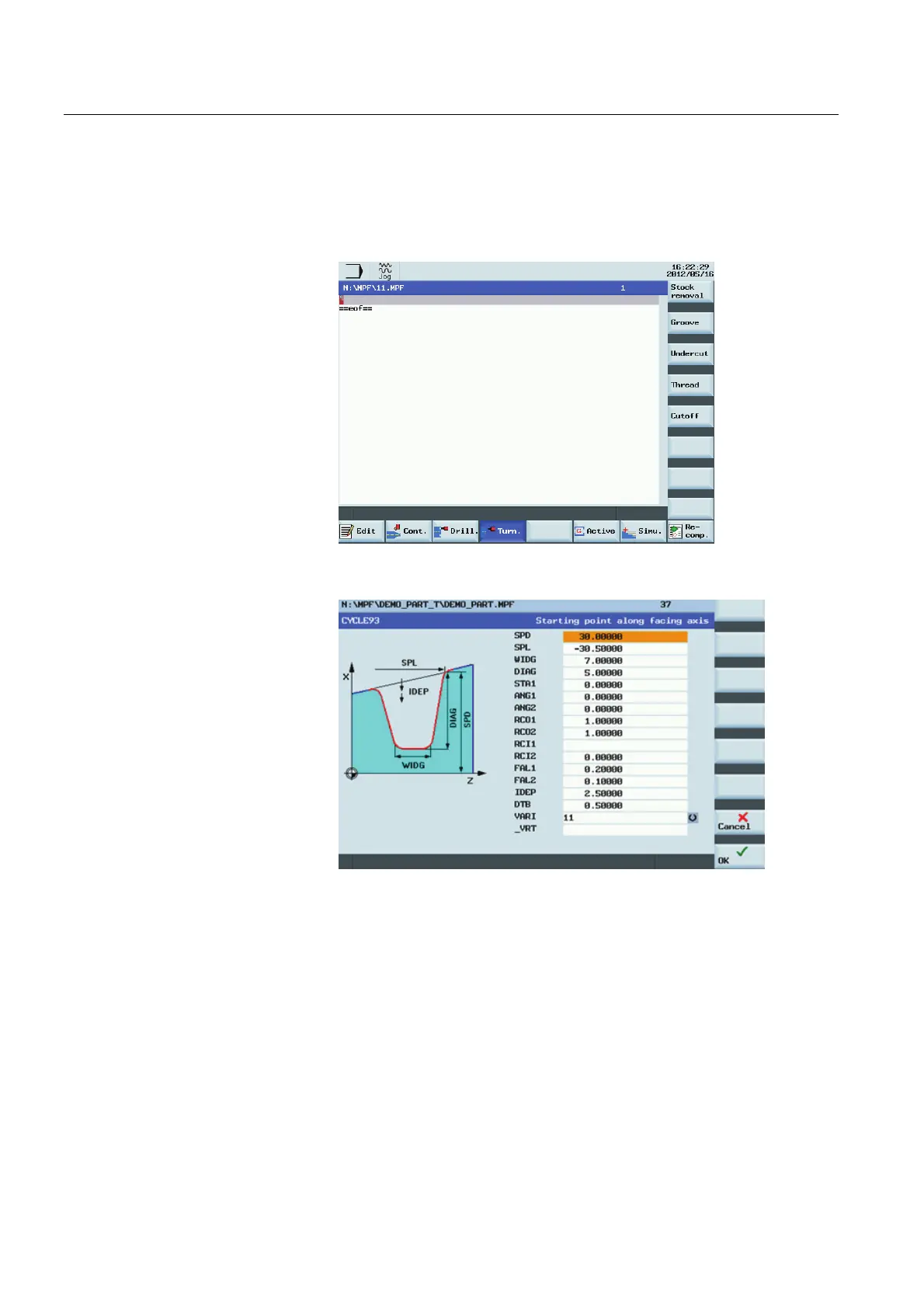

"Turn." 1. From the program editor screen, press "Turn.".
"Groove" 2. From the vertical softkey, select "Groove".
3. The "Starting point along facing axis " screen for CYCLE 93 opens.
Parameterise the cycle according to the requirement.
"OK" 4. Press "OK" to transfer the values and cycle all into the part program. A
groove is turned at the position defined in the cycle, as shown below:
N230 CYCLE93( 30.00000, -30.50000, 7.00000, 5.00000, 0.00000,
0.00000, 0.00000, 1.00000, 1.00000, ,0.00000, 0.20000, 0.10000,
2.50000, 0.50000, 11, )
