Cycles
2.5 Turning cycles
Turning Part 2: Programming (Siemens instructions)
Programming and Operating Manual, 05/2012, 6FC5398-5DP10-0BA0
167
Value Longitudinal/fac
e
Ext./int. Roughing/finishing/complete
10 P O Complete machining
11 L I Complete machining
12 P I Complete machining

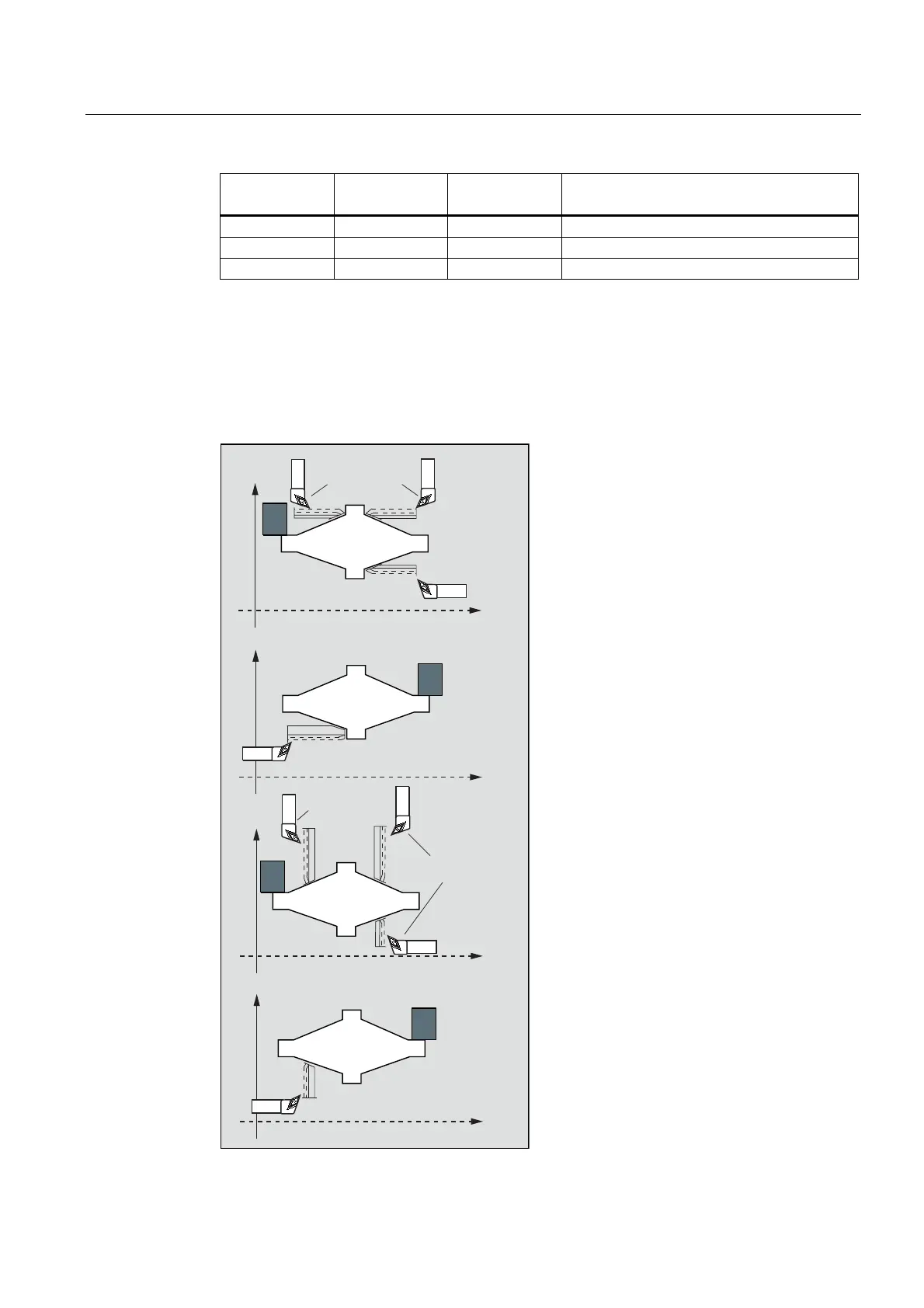

In longitudinal machining, the infeed is always carried out along the transversal axis, and in
face machining - along the longitudinal axis.
External machining means that the infeed is carried out in the direction of the negative axis.
With internal machining, the infeed is carried out in the direction of the positive axis.
The VARI parameter is subjected to a plausibility check. If its value is not in the range 1 ... 12
when the cycle is called, the cycle is aborted with alarm 61002 "Machining type defined
incorrectly".
