Siemens SINUMERIK 808D Programming And Operating Manual

Cycles
2.5 Turning cycles
Turning Part 2: Programming (Siemens instructions)
188 Programming and Operating Manual, 05/2012, 6FC5398-5DP10-0BA0
Parameter Data type Description
Internal parameter, only the default value 0 is possible
PSYS INT
Values: 0
Unit of parameter PIT (thread pitch) PITA INT
Values: 1 pitch in mm/revolution
2 pitch in threads per inch(TPI)
Internal parameter, only the default value 0 is possible PSYS STRING
Values: " "
Internal parameter, only the default value 0 is possible PSYS STRING
Values: " "
Internal parameter, only the default value 0 is possible PSYS STRING
Values: " "
Internal parameter, only the following values are possible PSYS INT
Values: 0 Longitudinal thread
10 Face thread
20 Taper thread
Function

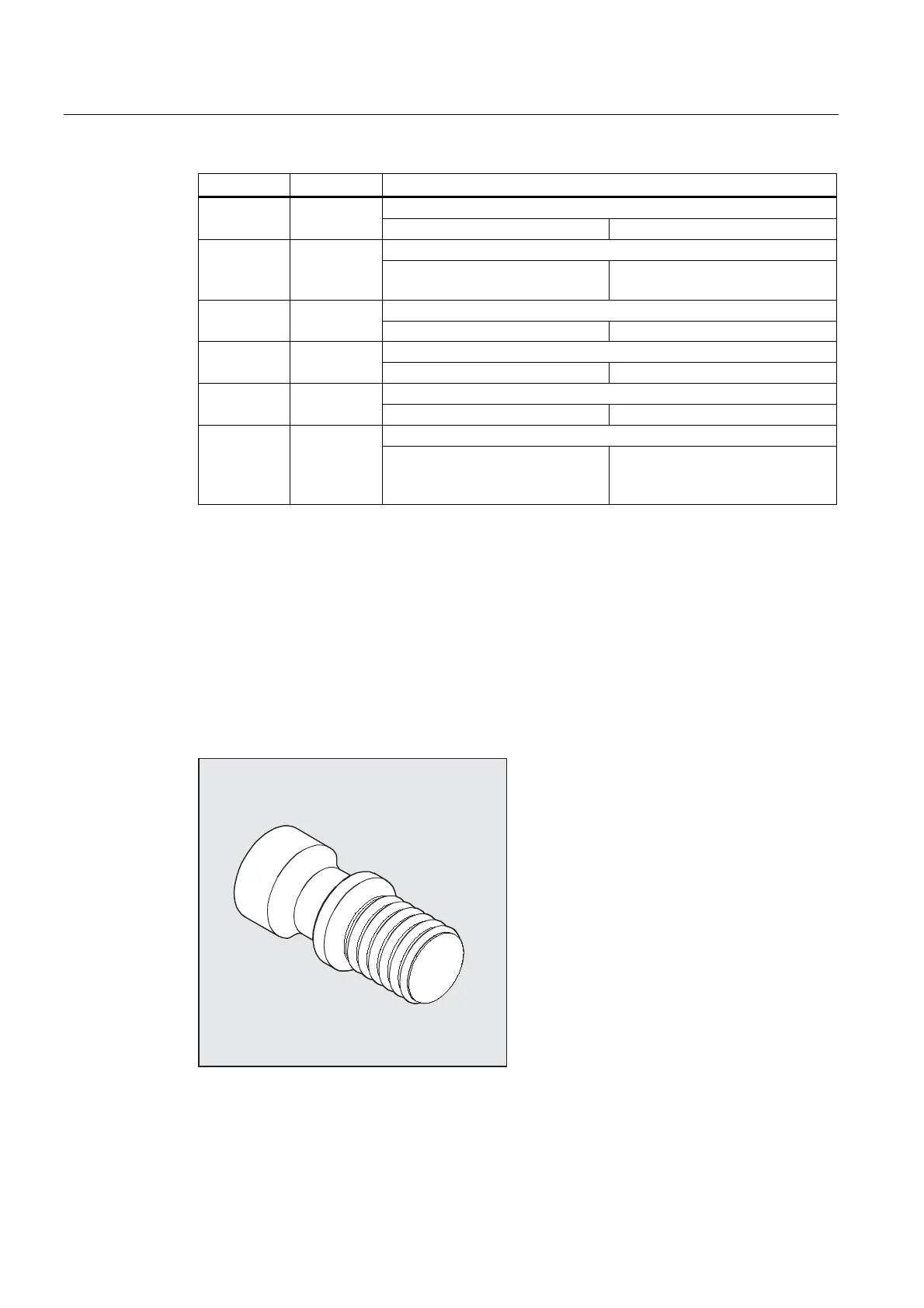

Use the thread cutting cycle to produce cylindrical and tapered external and internal threads
with constant lead in longitudinal and face machining. The thread can be single or multiple.
With multiple threads, the individual thread turns are machined one after the other.
The infeed is performed automatically; you can choose between the variants constant infeed
per cut or constant cutting cross-section.
Right-hand or left hand thread is determined by the direction of rotation of the spindle which
must be programmed prior to the cycle start.
Both feed and spindle override are ineffective in the traversing blocks with thread.
