Siemens SINUMERIK 808D Programming And Operating Manual

Typical turning program
Turning Part 2: Programming (Siemens instructions)
202 Programming and Operating Manual, 05/2012, 6FC5398-5DP10-0BA0
Z-55 ;*GP*
X50 ;*GP*
;CON,V64,2,0.0000,4,4,MST:1,2,AX:Z,X,K,I;*GP*;*RO*;*HD*
;S,EX:0,EY:16,ASE:0;*GP*;*RO*;*HD*
;LA,EX:-2,EY:20;*GP*;*RO*;*HD*
;LL,EX:-20;*GP*;*RO*;*HD*
;AB,IDX:8;*GP*;*RO*;*HD*
;LU,EY:30;*GP*;*RO*;*HD*
;F,LFASE:1;*GP*;*RO*;*HD*
;LL,DEX:-15;*GP*;*RO*;*HD*
;LU,EY:40;*GP*;*RO*;*HD*
;F,LFASE:1;*GP*;*RO*;*HD*
;LL,EX:-55;*GP*;*RO*;*HD*
;LU,EY:50;*GP*;*RO*;*HD*
;#End contour definition end - Don't change!;*GP*;*RO*;*HD*
DEMO_E:;************* CONTOUR ENDS ************

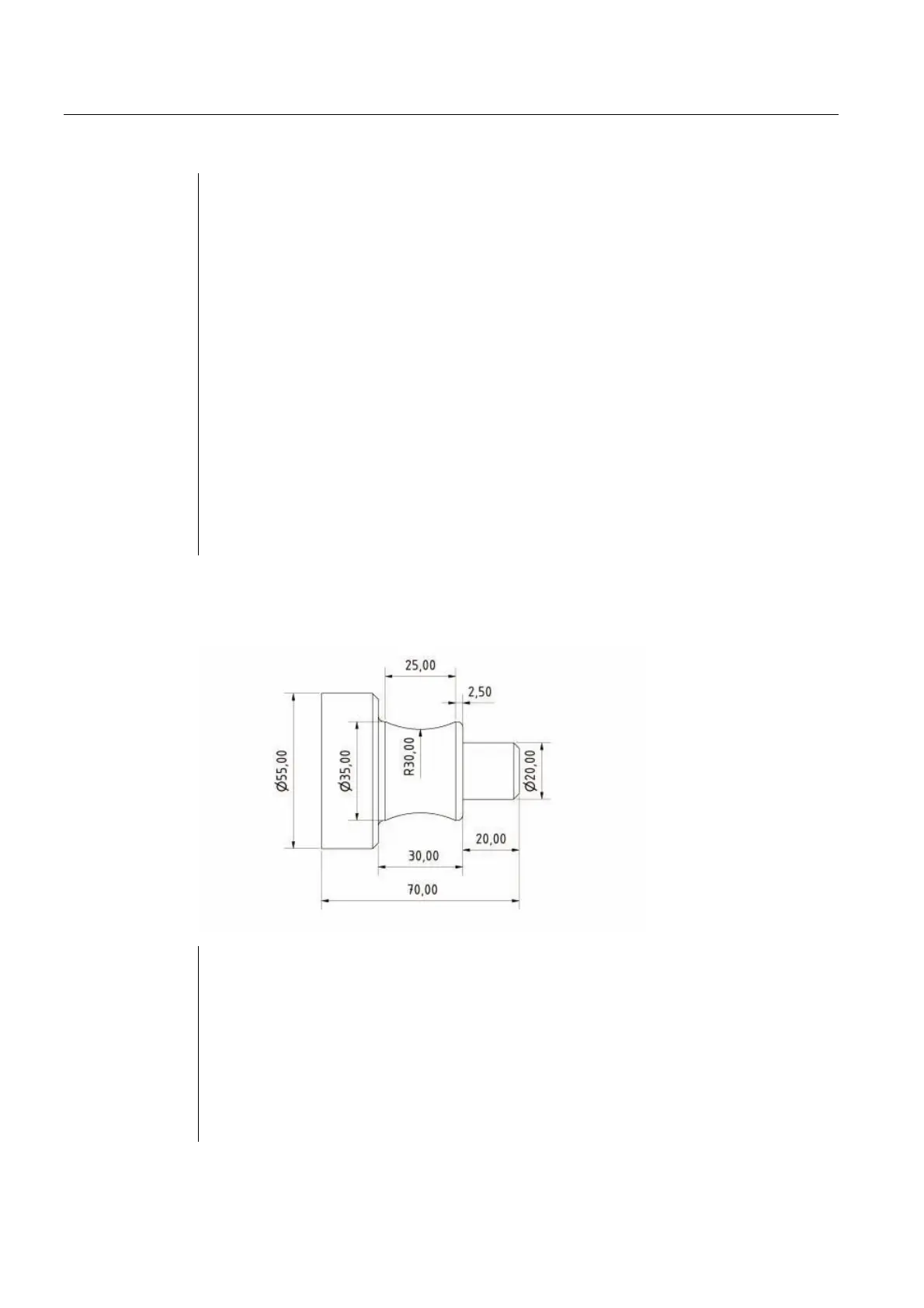

Turning part program example1
The following is an example of the turning part program:
G00 G90 G95 G40 G71
LIMS=4500
T1 D1
G96 S250 M03 M08
G00 X60 Z0
G01 X-2 F0.35
G00 Z2
G00 X60
CYCLE95( "CON1:CON1_E", 1.50000, 0.20000, 0.10000, ,0.50000, 0.30000, 0.20000, 9, ,
