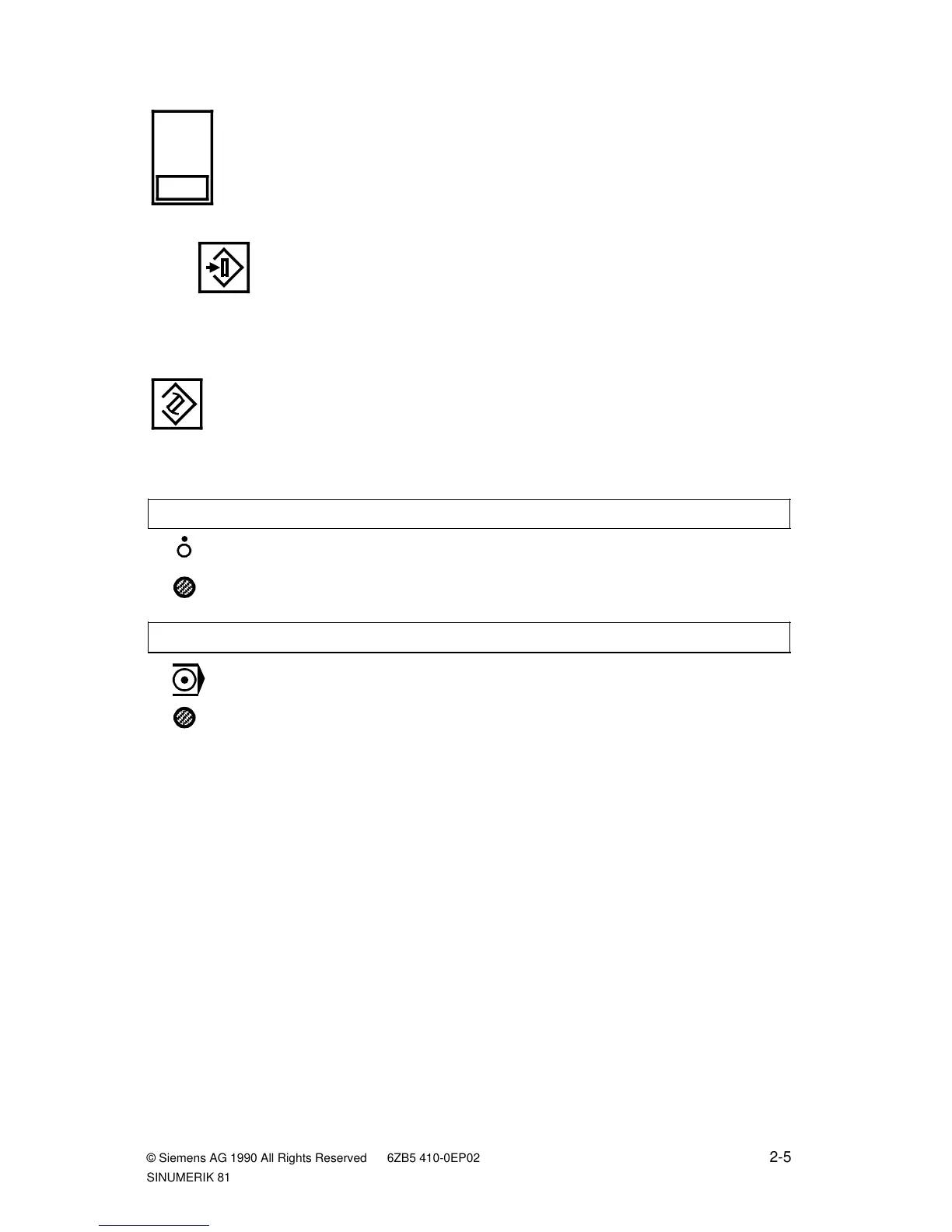

01.93 2 Operation
2.1.1 SINUMERIK 810T operator interface with integrated machine control panel
NC-MD
Press the ”NC-MD” softkey.
272*
Call up MD 272* with this key. Position the cursor on the
desired axis
*=0
1st axis
*=1
2nd axis
*=2
3rd axis
*=3
4th axis
*=4
5th axis
*=5
6th axis
*=6
7th axis.
Press the ”Modify word” key.
The new compensation value is shown in the MD:
“Feed hold” display
The red LED is bright when the feed is interrupted.
The program run is stopped.
“Program running” display
• The green LED is bright when a program is being processed, even if
the machine is not moving any axes!
• The LED is extinguished when program processing is completed:
– on programmed Hold M00, M01
– at the end of a single block
– at the end of the program.
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
© Siemens AG 1990 All Rights Reserved 6ZB5 410-0EP02 2-5
SINUMERIK 810T, GA3 (BN)
