Siemens SINUMERIK 840D sl Installation Manual

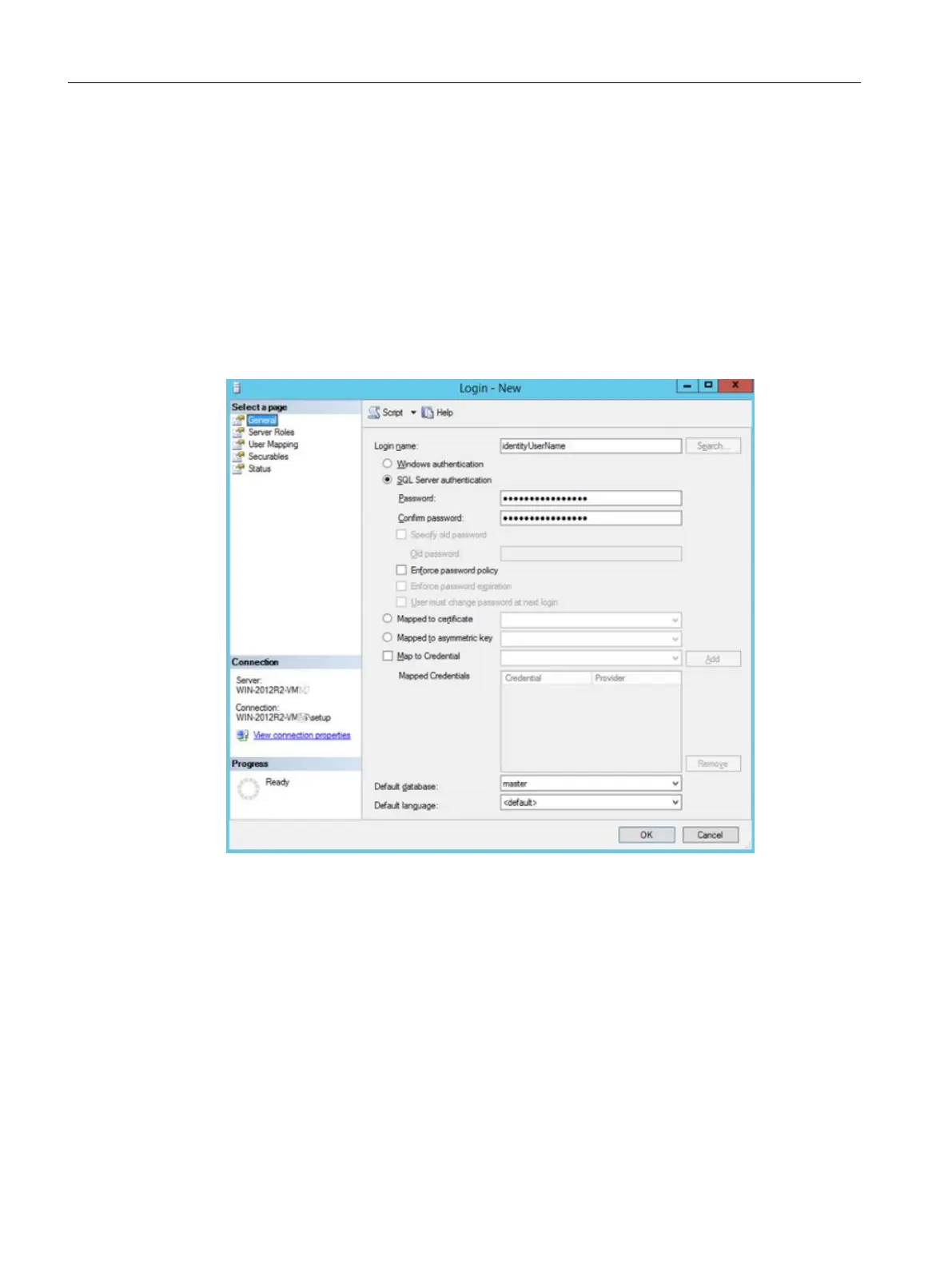

6. The "Login - New" window opens.
Select the page "General".
– Specify the "Login name".
– Activate the "SQL Server authentication" checkbox.
– Enter a password: Enter a strong password and make sure that the password meets the
complexity requirements:
Minimum 8 characters
Must contain upper- and lowercase letter
Number and special character
– Confirm the password: Confirm the password by entering it again.
7. Select the page "User Mapping".
Map the login user to the previously created database by adding the following roles to it's
database:
– db_datareader
– db_datawrite
– db_owner
Installing/configuring Windows services
3.3 SQL Server 2012
Manage MyResources, Optimize MyProgramming /NX-Cam Editor
48 Installation Manual, 12/2019, A5E44672080B AE

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
