Siemens SINUMERIK 840D sl Installation Manual

3.4.3 Configuring the SQL Server 2016 with remote database
The following example is a description of the "SQL server 2016" configuration with remote
database.
Prerequisite
You require administrator rights in the database, e.g. authorization level user "Sysadmin" as
"Domain/Local User" or as SQL user (sa).
Procedure

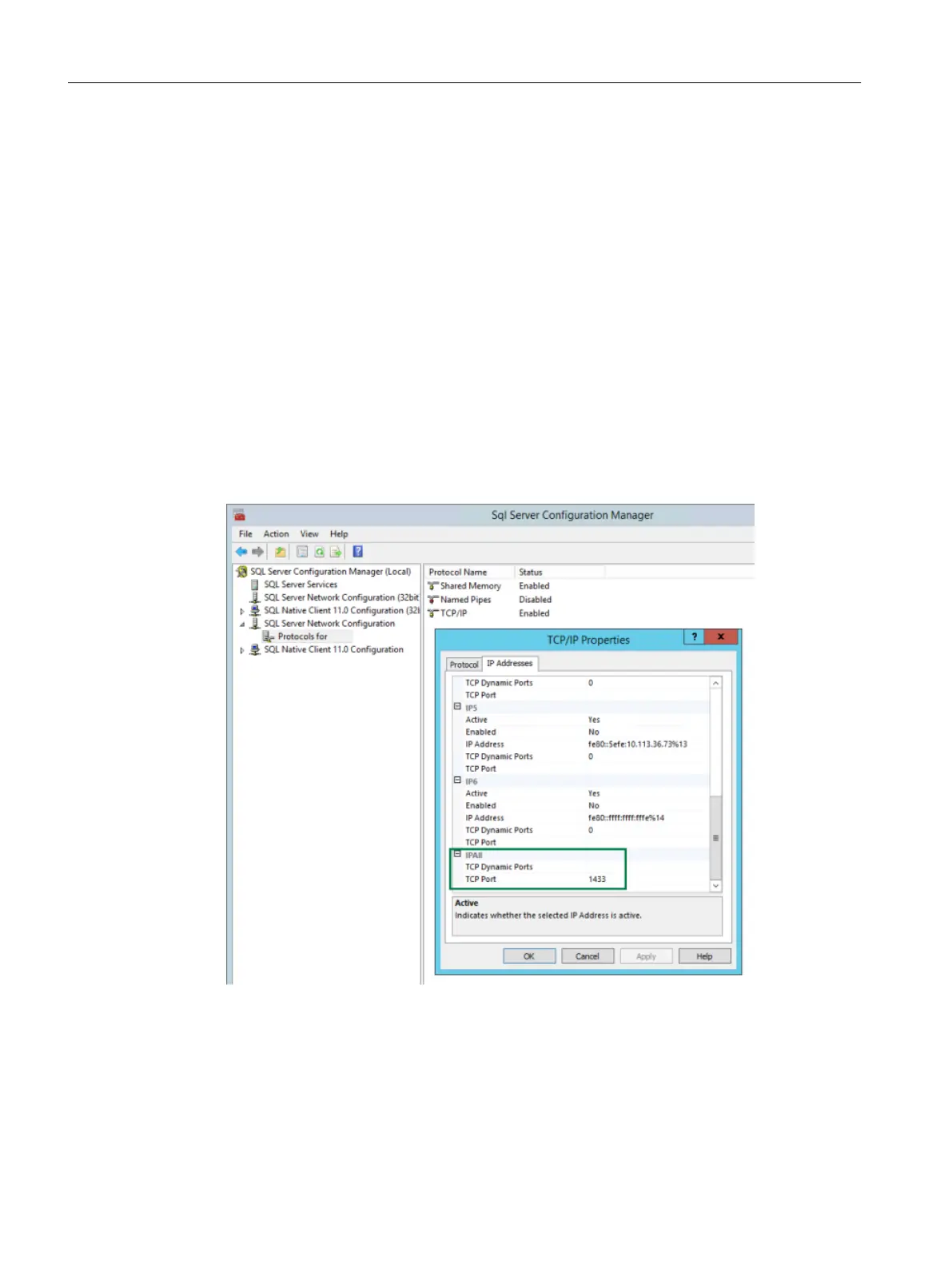

1. Open the "SQL Server Configuration Manager".
2. Open "SQL Server Network Configuration" and select "Protocols for".
The status is shown in the right window area.
3. Open the properties for "TCP/IP", and check whether the Firewall is configured with the
permitted port 1433.
Installing/configuring Windows services
3.4 SQL Server 2016
Manage MyResources, Optimize MyProgramming /NX-Cam Editor
58 Installation Manual, 12/2019, A5E44672080B AE

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
