Siemens SINUMERIK 840D sl Installation Manual

Procedure

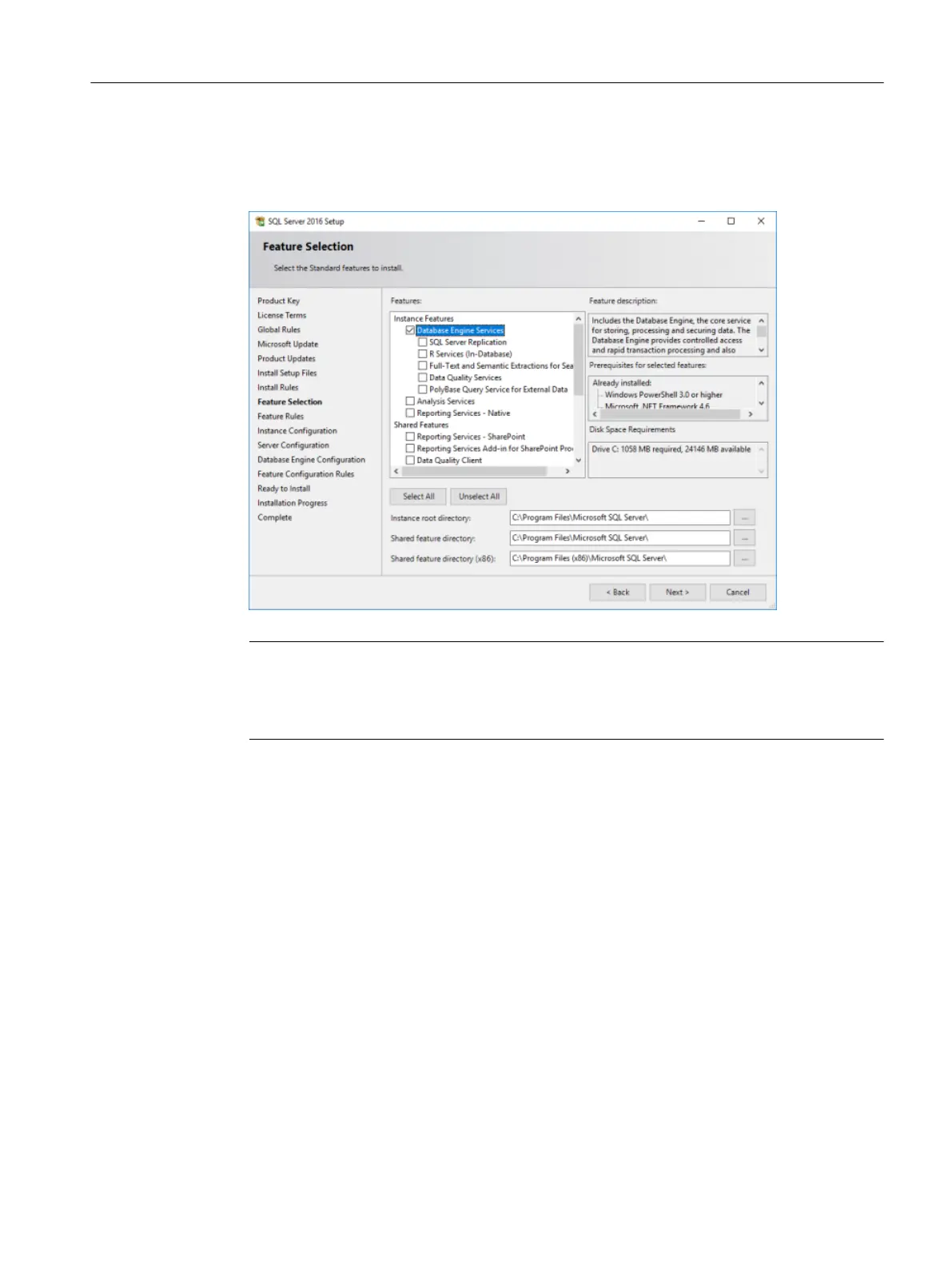

1. Select the "Feature Selection" function and activate the "Database Engine Services"
checkbox.
Note
SQL Management Studio
The SQL Server 2016 installation does not contain an "SQL Management Studio"
installation. If you need the "SQL Management Studio" you must install it separately.
2. Select the "Instance Configuration" function.
When you select the standard settings, activate the "Default instance" option button. A
name is created automatically.
The instance is already defined when installing the server.
Click "Next >".
Installing/configuring Windows services
3.4 SQL Server 2016
Manage MyResources, Optimize MyProgramming /NX-Cam Editor
Installation Manual, 12/2019, A5E44672080B AE 55

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
