1.2 Labels and stickers
1-16
© Siemens AG, 2006. All rights reserved
SINUMERIK 840D Configuring Manual NCU (PHD) – 03.06 Edition

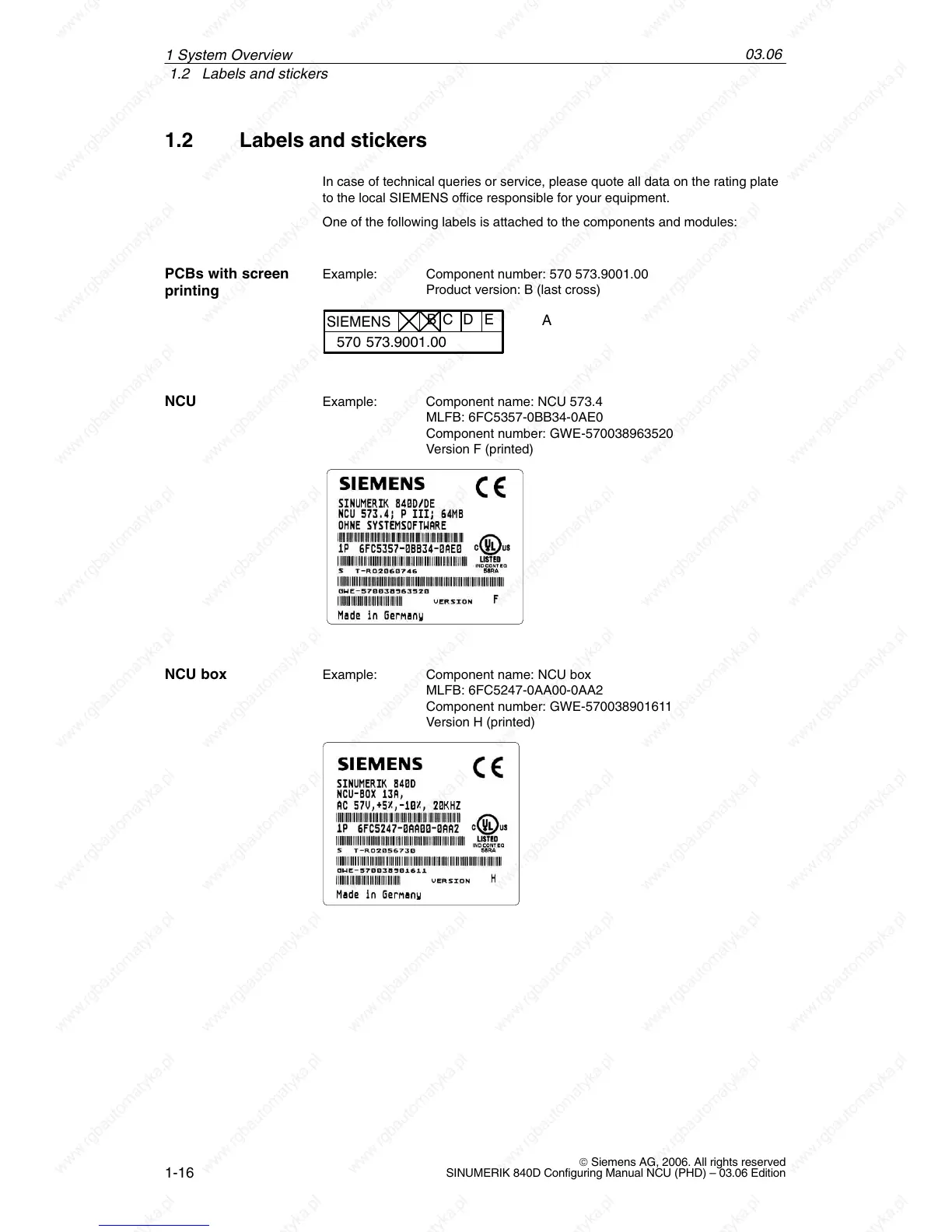

1.2 Labels and stickers
In case of technical queries or service, please quote all data on the rating plate
to the local SIEMENS office responsible for your equipment.
One of the following labels is attached to the components and modules:
Example: Component number: 570 573.9001.00
Product version: B (last cross)
570 573.9001.00
E
D
C
SIEMENS
A
B
Example: Component name: NCU 573.4
MLFB: 6FC5357-0BB34-0AE0
Component number: GWE-570038963520
Version F (printed)
Example: Component name: NCU box
MLFB: 6FC5247-0AA00-0AA2
Component number: GWE-570038901611
Version H (printed)
PCBs with screen
printing
NCU
NCU box
1 S
y
stem Overview

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
