7.6 DMP compact module 1A analog
6FC5111-0CA05-0AA0
The DMP compact module 1A analog is an encapsulated module. It can be
plugged into a slot of the (PROFIBUS DP or NCU) terminal block as a plug-in
module.
24 V DC
1, 4 ... Shield
2 ... Analog output Out+
X1
Status
LED
Fastening
screw
Labeling
strips
POWER
SUPPLY
O.K.
ANALOG
OUT
Connection terminal
X3
X2
0 V
2.5
1.5
1234
P1 P2 M1 M2
Terminal:
3 ... Analog output Out–

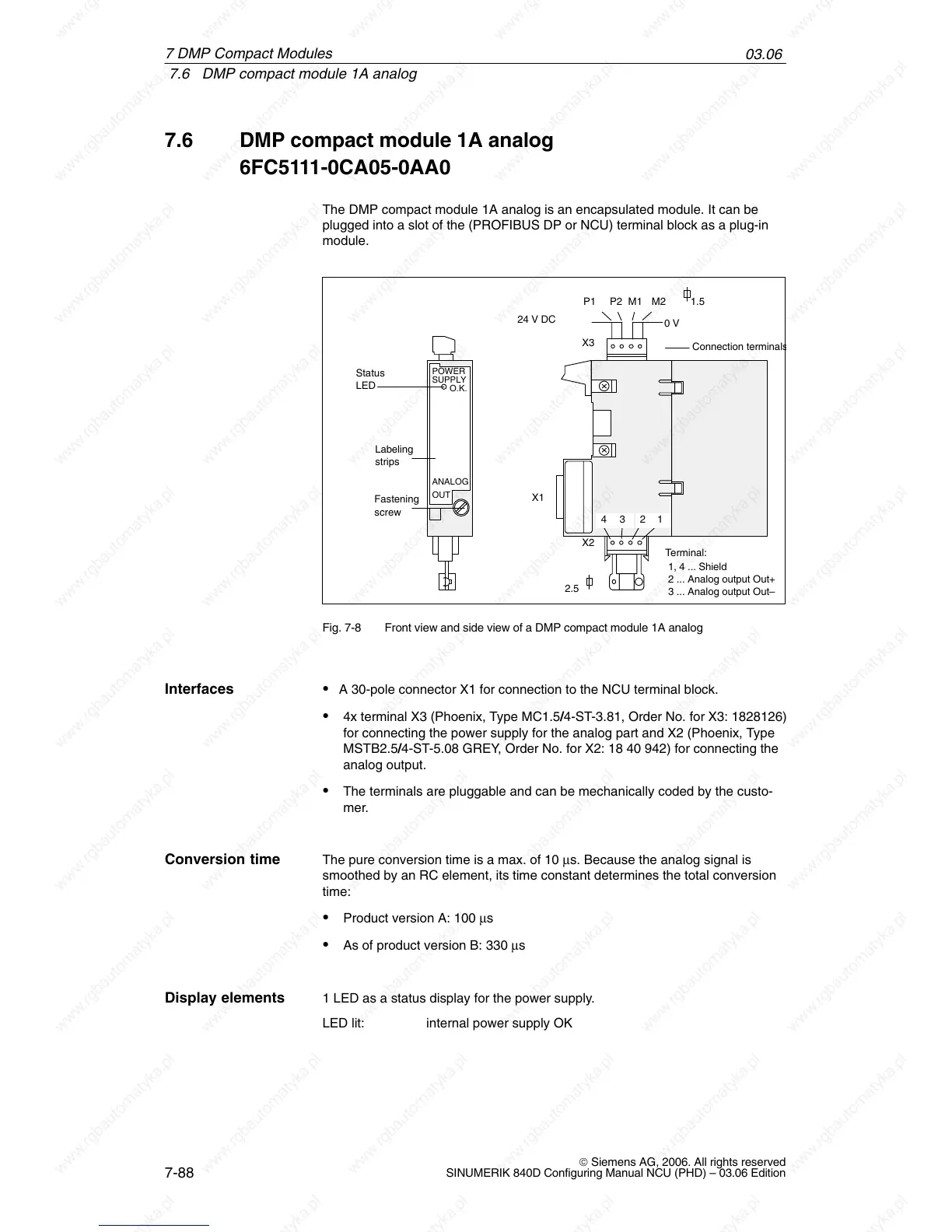

Fig. 7-8 Front view and side view of a DMP compact module 1A analog
A 30-pole connector X1 for connection to the NCU terminal block.
4x terminal X3 (Phoenix, Type MC1.5/4-ST-3.81, Order No. for X3: 1828126)
for connecting the power supply for the analog part and X2 (Phoenix, Type
MSTB2.5/4-ST-5.08 GREY, Order No. for X2: 18 40 942) for connecting the
analog output.
The terminals are pluggable and can be mechanically coded by the custo-
mer.
The pure conversion time is a max. of 10 µs. Because the analog signal is
smoothed by an RC element, its time constant determines the total conversion
time:
Product version A: 100 µs
As of product version B: 330 µs
1 LED as a status display for the power supply.
LED lit: internal power supply OK
Interfaces
Conversion time
Display elements
