7-77
© Siemens AG, 2006. All rights reserved
SINUMERIK 840D Configuring Manual NCU (PHD) – 03.06 Edition

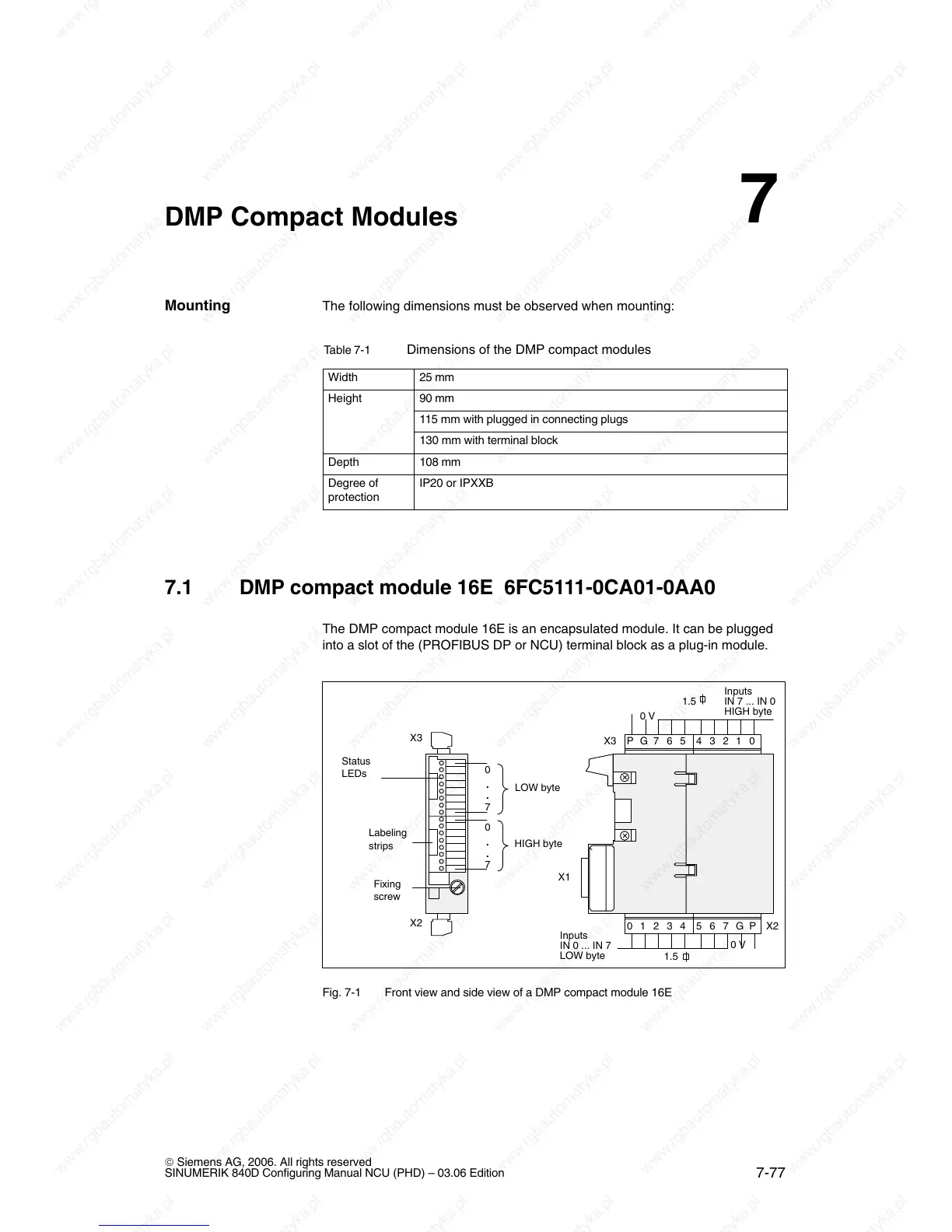

DMP Compact Modules
The following dimensions must be observed when mounting:
Table 7-1 Dimensions of the DMP compact modules
Width 25 mm
Height 90 mm
115 mm with plugged in connecting plugs
130 mm with terminal block
Depth 108 mm
Degree of
protection
IP20 or IPXXB
7.1 DMP compact module 16E 6FC5111-0CA01-0AA0
The DMP compact module 16E is an encapsulated module. It can be plugged
into a slot of the (PROFIBUS DP or NCU) terminal block as a plug-in module.
PG765
Inputs
IN 7 ... IN 0
HIGH byte
X1
43210
01234 567GP
Status
LEDs
Fixing
screw
Labeling
strips
Inputs
IN 0 ... IN 7
LOW byte
0 V
X3
X2
0
.
.
7
X3
X2
LOW byte
0
.
.
7
HIGH byte
1.5
0 V
1.5
Fig. 7-1 Front view and side view of a DMP compact module 16E
Mounting
7

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
