03.06
7.3 DMP compact module 8 A (6FC5111-0CA03-0AA1)
7-81
© Siemens AG, 2006. All rights reserved
SINUMERIK 840D Configuring Manual NCU (PHD) – 03.06 Edition
7.3 DMP compact module 8 A (6FC5111-0CA03-0AA1)
The DMP compact module 8O is an encapsulated module. It can be plugged
into a slot of the (PROFIBUS DP or NCU) terminal block as a plug-in module.
X3
765
Outputs
OUT 7 ... OUT 4
X1
4
Status
LEDs
Fixing
screw
Labeling
strips
Outputs
OUT 0 ... OUT 3
0 V
X2
0
.
.
7
X3
X2
24 V
LOAD
DC 2.5
210
0 V
24 V
LOAD
DC 2.5
PG
PG3

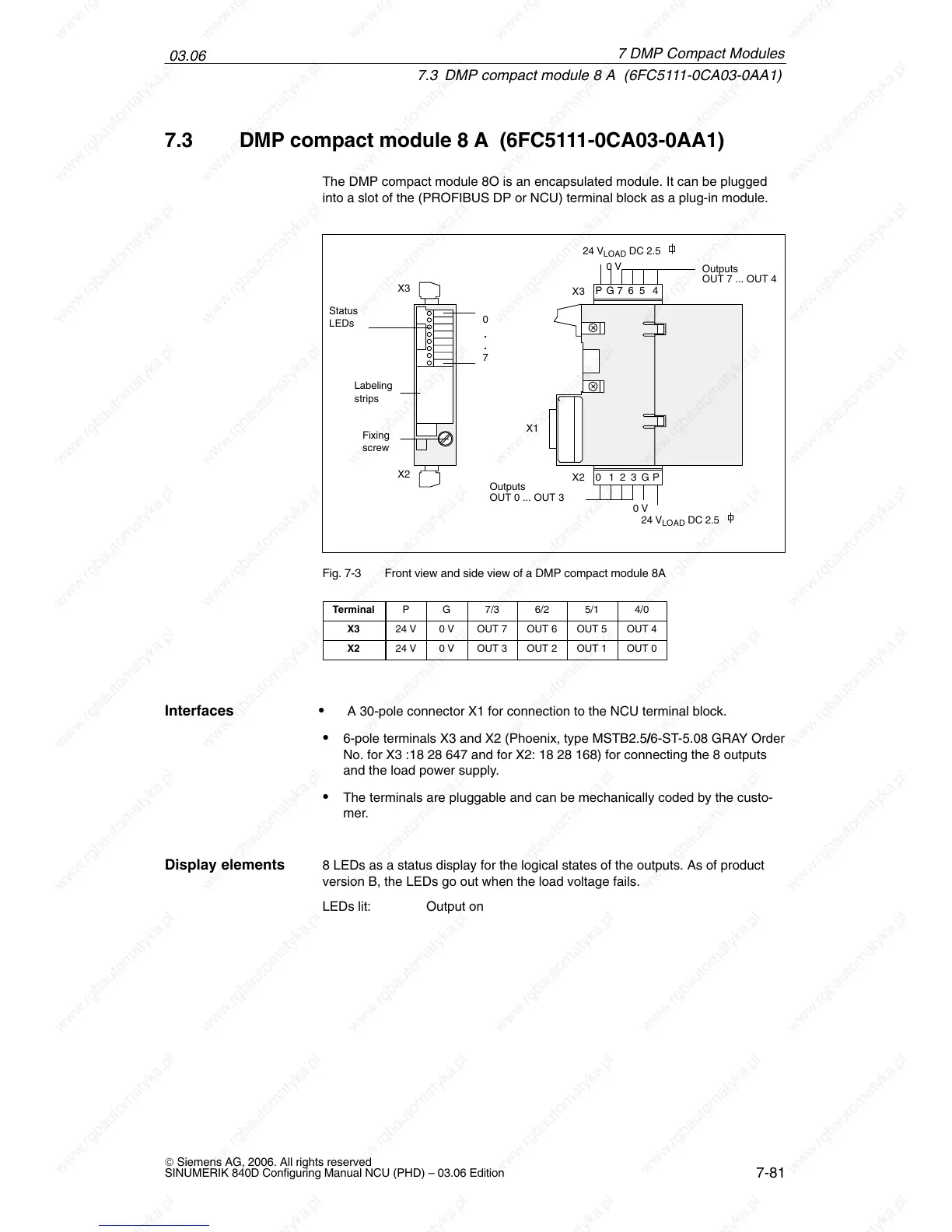

Fig. 7-3 Front view and side view of a DMP compact module 8A
Terminal P G 7/3 6/2 5/1 4/0
X3 24 V 0 V OUT 7 OUT 6 OUT 5 OUT 4
X2 24 V 0 V OUT 3 OUT 2 OUT 1 OUT 0
A 30-pole connector X1 for connection to the NCU terminal block.
6-pole terminals X3 and X2 (Phoenix, type MSTB2.5/6-ST-5.08 GRAY Order
No. for X3 :18 28 647 and for X2: 18 28 168) for connecting the 8 outputs
and the load power supply.
The terminals are pluggable and can be mechanically coded by the custo-
mer.
8 LEDs as a status display for the logical states of the outputs. As of product
version B, the LEDs go out when the load voltage fails.
LEDs lit: Output on
Interfaces
Display elements
