7.5 DMP compact module 1E NC analog
6FC5211-0AA10-0AA0
The DMP compact module 1E NC analog is an encapsulated high-speed ana-
log input module with 75ms access time. It can be plugged into a slot of the NCU
terminal block as a plug-in module.
The DMP compact module 1E NC analog serves for inputting and digitizing an
analog voltage value. This voltage value is measured by an isolated differential
input.
M2M1
P2P1
24 V DC
6, 1 Shield
2 Ground
3 Analog input In+
4 Analog input In–
5 Ground
X1
Status
LED
Fastening
screw
Labeling
strips
POWER
SUPPLY
O.K.
ANALOG
IN
Connection terminals
X3
X2
0 V
1
3 2
1
2
2.5
2.5
6..1
Terminal:

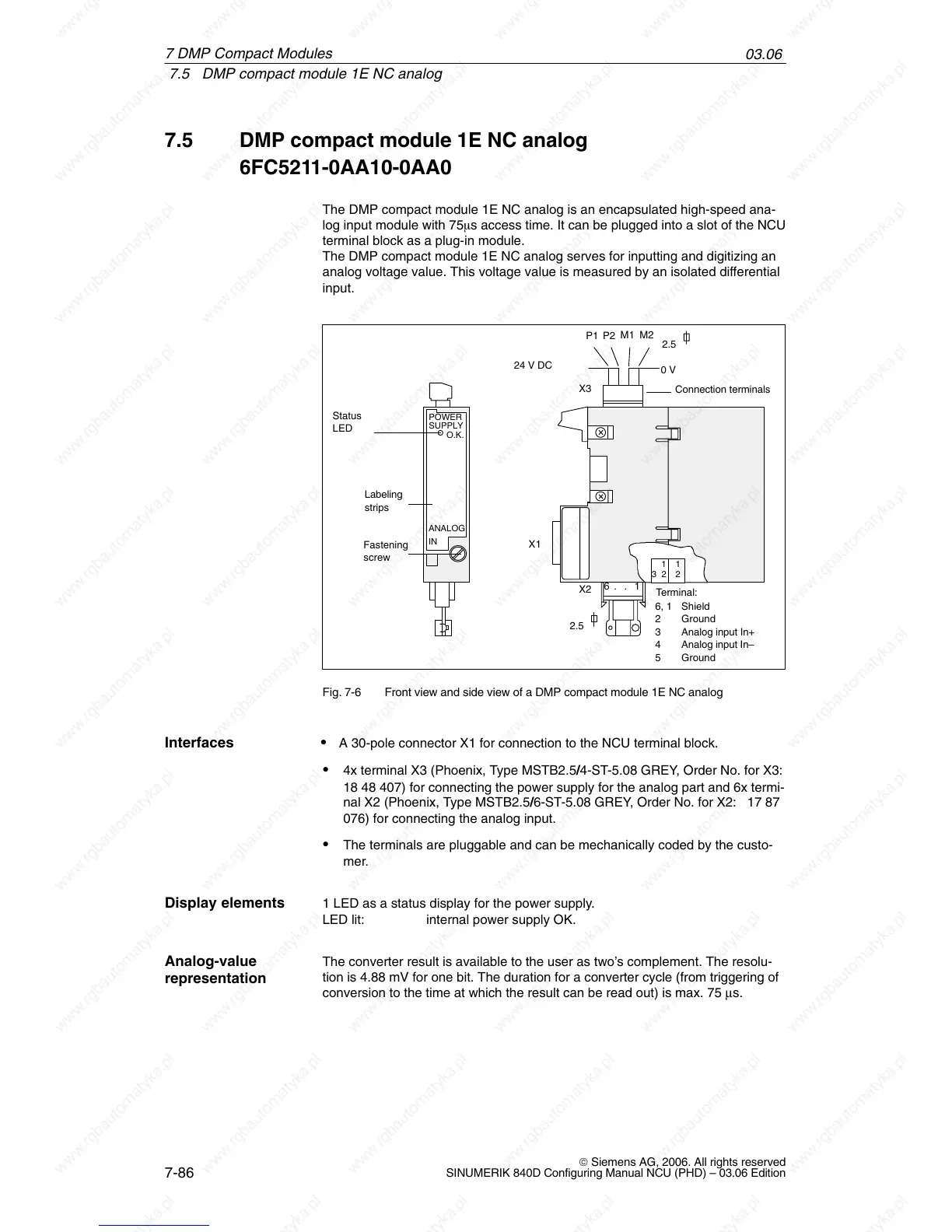

Fig. 7-6 Front view and side view of a DMP compact module 1E NC analog
A 30-pole connector X1 for connection to the NCU terminal block.
4x terminal X3 (Phoenix, Type MSTB2.5/4-ST-5.08 GREY, Order No. for X3:
18 48 407) for connecting the power supply for the analog part and 6x termi-
nal X2 (Phoenix, Type MSTB2.5/6-ST-5.08 GREY, Order No. for X2: 17 87
076) for connecting the analog input.
The terminals are pluggable and can be mechanically coded by the custo-
mer.
1 LED as a status display for the power supply.
LED lit: internal power supply OK.
The converter result is available to the user as two’s complement. The resolu-
tion is 4.88 mV for one bit. The duration for a converter cycle (from triggering of
conversion to the time at which the result can be read out) is max. 75 µs.
