03.06

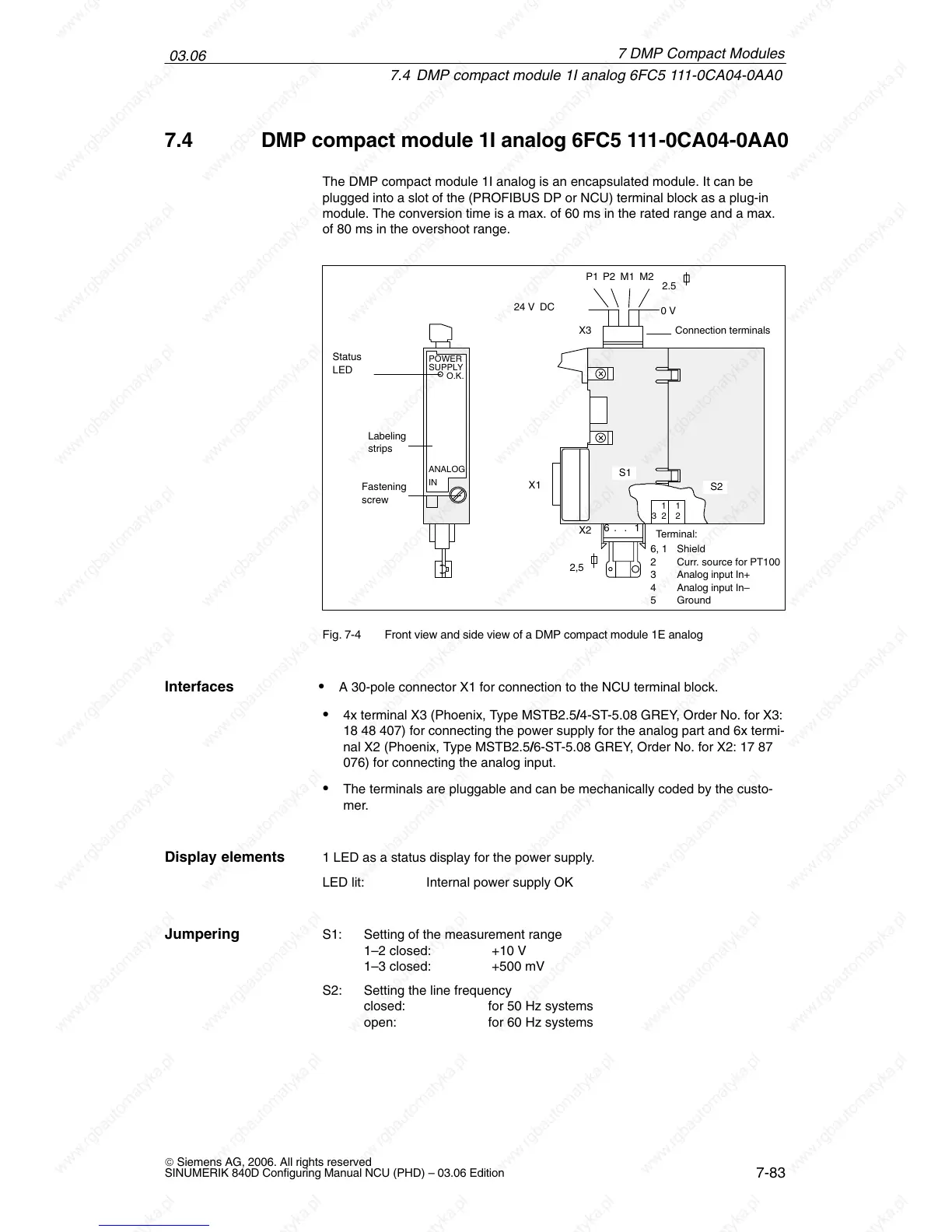

7.4 DMP compact module 1I analog 6FC5 111-0CA04-0AA0
7-83
© Siemens AG, 2006. All rights reserved
SINUMERIK 840D Configuring Manual NCU (PHD) – 03.06 Edition
7.4 DMP compact module 1I analog 6FC5 111-0CA04-0AA0
The DMP compact module 1I analog is an encapsulated module. It can be
plugged into a slot of the (PROFIBUS DP or NCU) terminal block as a plug-in
module. The conversion time is a max. of 60 ms in the rated range and a max.
of 80 ms in the overshoot range.
M2M1
P2P1
24 V DC
6, 1 Shield
2 Curr. source for PT100
3 Analog input In+
4 Analog input In–
5 Ground
X1
Status
LED
Fastening
screw
Labeling
strips
POWER
SUPPLY
O.K.
ANALOG
IN
Connection terminals
X3
X2
0 V
1
3 2
1
2
S1
S2
2,5
2.5
6..1
Terminal:
Fig. 7-4 Front view and side view of a DMP compact module 1E analog
A 30-pole connector X1 for connection to the NCU terminal block.
4x terminal X3 (Phoenix, Type MSTB2.5/4-ST-5.08 GREY, Order No. for X3:
18 48 407) for connecting the power supply for the analog part and 6x termi-
nal X2 (Phoenix, Type MSTB2.5/6-ST-5.08 GREY, Order No. for X2: 17 87
076) for connecting the analog input.
The terminals are pluggable and can be mechanically coded by the custo-
mer.
1 LED as a status display for the power supply.
LED lit: Internal power supply OK
S1: Setting of the measurement range
1–2 closed: +10 V
1–3 closed: +500 mV
S2: Setting the line frequency
closed: for 50 Hz systems
open: for 60 Hz systems
Interfaces
Display elements
Jumpering
7 DMP Compact Modules
