03.06

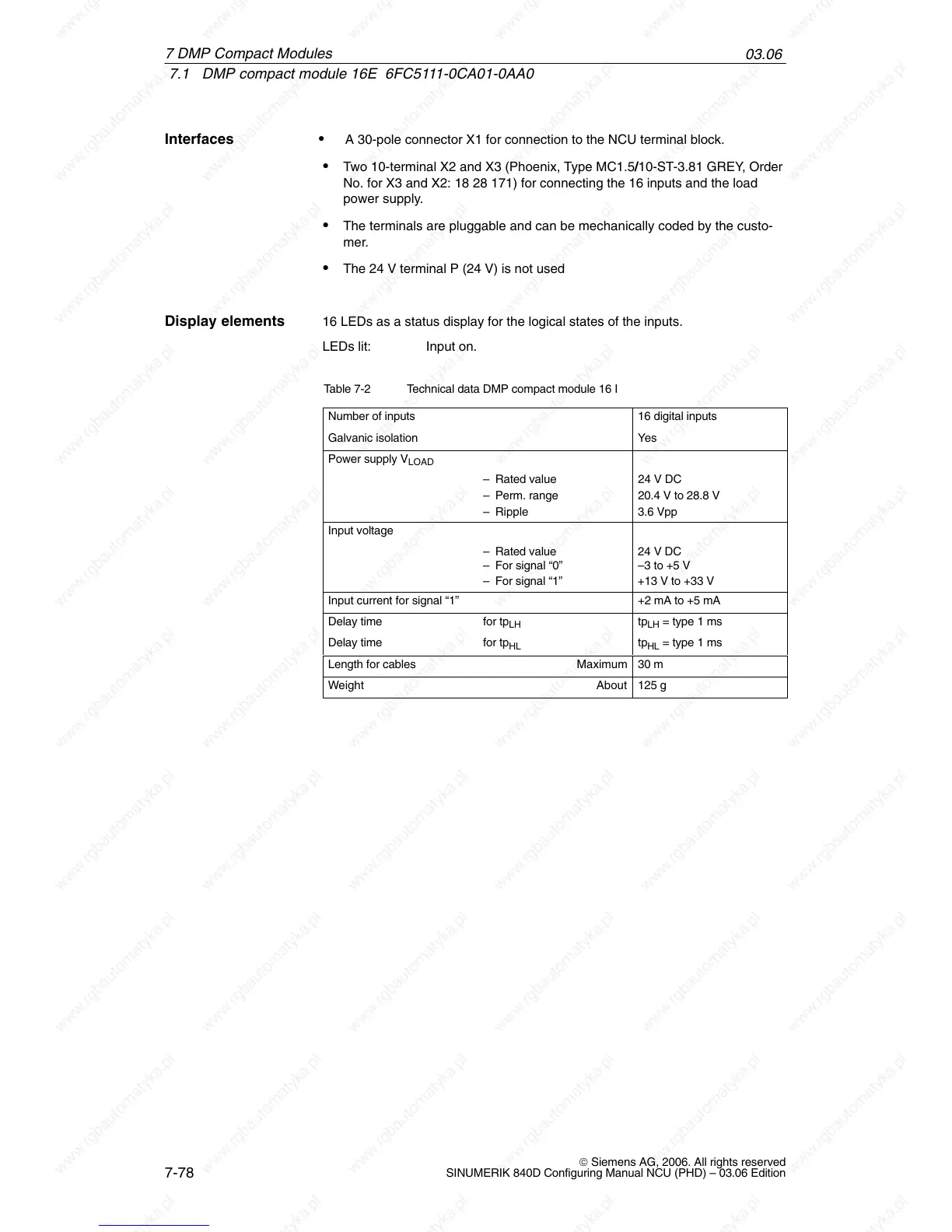

7.1 DMP compact module 16E 6FC5111-0CA01-0AA0
7-78
© Siemens AG, 2006. All rights reserved
SINUMERIK 840D Configuring Manual NCU (PHD) – 03.06 Edition
A 30-pole connector X1 for connection to the NCU terminal block.
Two 10-terminal X2 and X3 (Phoenix, Type MC1.5/10-ST-3.81 GREY, Order
No. for X3 and X2: 18 28 171) for connecting the 16 inputs and the load
power supply.
The terminals are pluggable and can be mechanically coded by the custo-
mer.
The 24 V terminal P (24 V) is not used
16 LEDs as a status display for the logical states of the inputs.
LEDs lit: Input on.
Table 7-2 Technical data DMP compact module 16 I
Number of inputs
16 digital inputs
Galvanic isolation Yes
Power supply V
LOAD
– Rated value 24 V DC
– Perm. range 20.4 V to 28.8 V
– Ripple 3.6 Vpp
Input voltage
– Rated value
– For signal “0”
24 V DC
–3 to +5 V
– For signal “1” +13 V to +33 V
Input current for signal “1” +2 mA to +5 mA
Delay time for tp
LH
tp
LH
= type 1 ms
Delay time for tp
HL
tp
HL
= type 1 ms
Length for cables Maximum 30 m
Weight About 125 g
Interfaces
Display elements
7 DMP Compact Modules
