4.2 Mounting
4-44
© Siemens AG, 2006. All rights reserved
SINUMERIK 840D Configuring Manual NCU (PHD) – 03.06 Edition



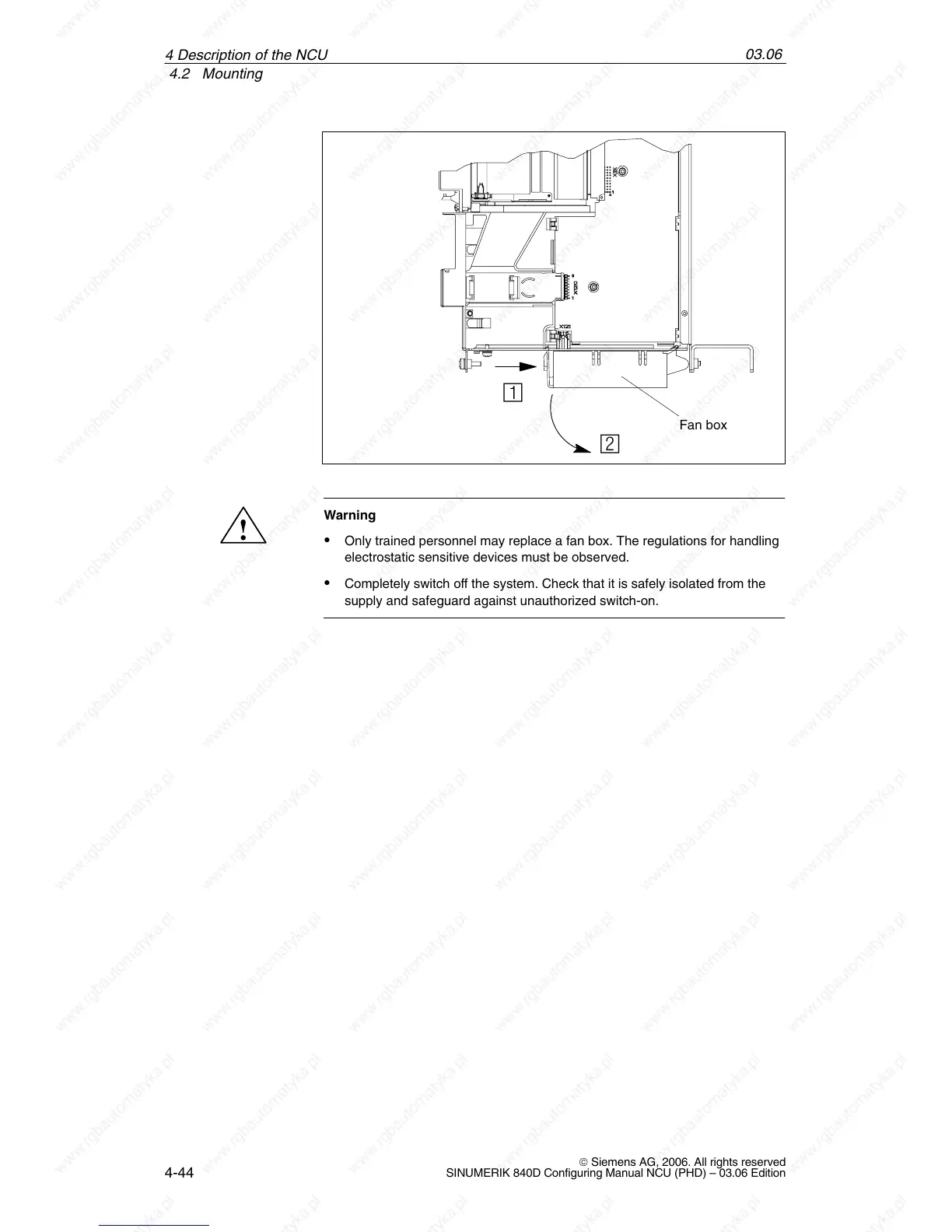

Fan box
!
Warning
 Only trained personnel may replace a fan box. The regulations for handling
electrostatic sensitive devices must be observed.
 Completely switch off the system. Check that it is safely isolated from the
supply and safeguard against unauthorized switch-on.
4 Descri
p
tion of the NCU
