03.06

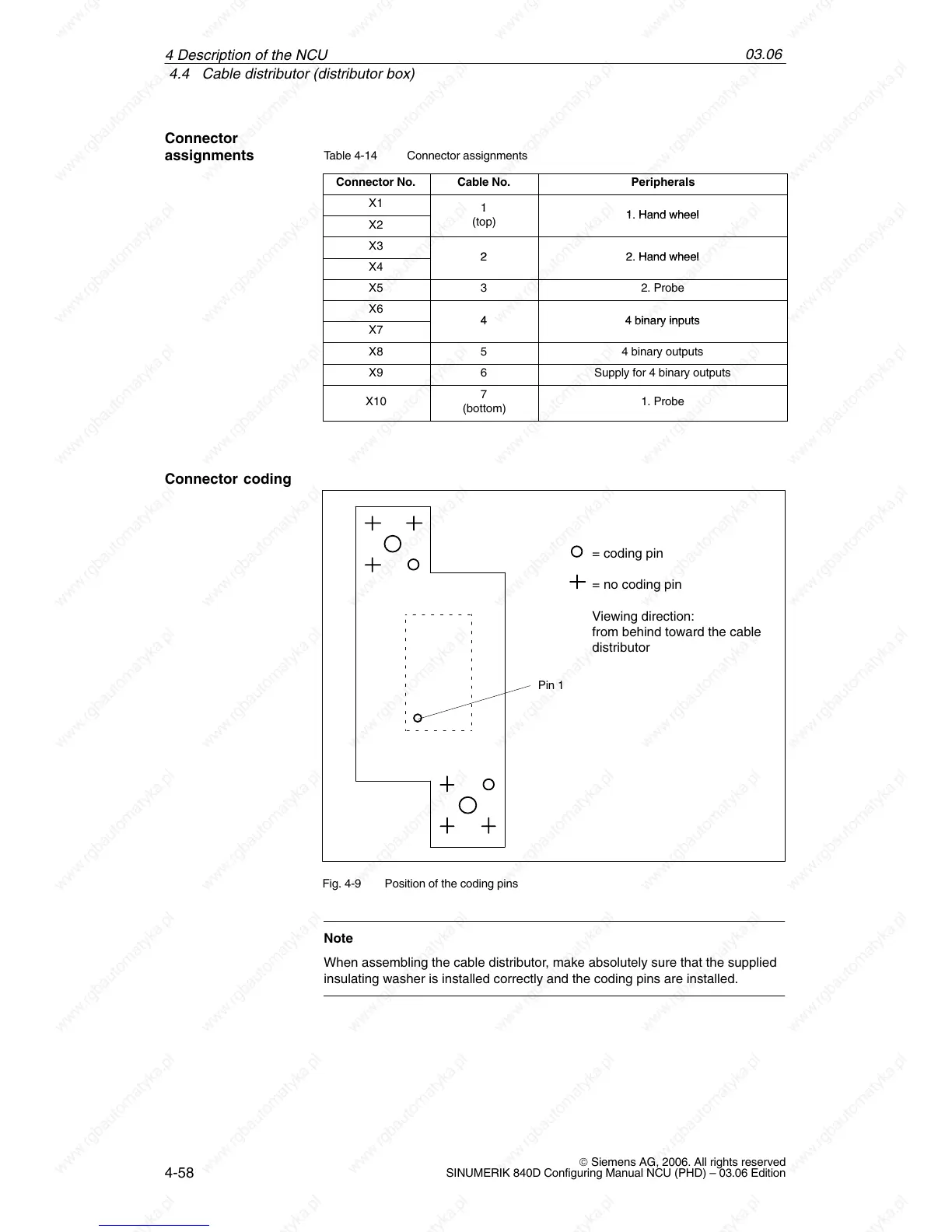

4.4 Cable distributor (distributor box)
4-58
© Siemens AG, 2006. All rights reserved
SINUMERIK 840D Configuring Manual NCU (PHD) – 03.06 Edition
Table 4-14 Connector assignments
Connector No.
Cable No. Peripherals
X1
1
1 Hand wheel
X2
1
(top)
1
.
H
an
d
w
h
ee
l
X3
2
2 Hand wheel
X4
2
2
.
H
an
d
w
h
ee
l
X5 3 2. Probe
X6
4
4 binary inputs
X7
4
4
bi
nary
i
nputs
X8 5 4 binary outputs
X9 6 Supply for 4 binary outputs
X10
7
(bottom)
1. Probe
Pin 1
= coding pin
= no coding pin
Viewing direction:
from behind toward the cable
distributor
Fig. 4-9 Position of the coding pins
Note
When assembling the cable distributor, make absolutely sure that the supplied
insulating washer is installed correctly and the coding pins are installed.
Connector
assignments
Connector coding
4 Descri
p
tion of the NCU

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
