03.06
5.1 Single I/O module
5-69
© Siemens AG, 2006. All rights reserved
SINUMERIK 840D Configuring Manual NCU (PHD) – 03.06 Edition

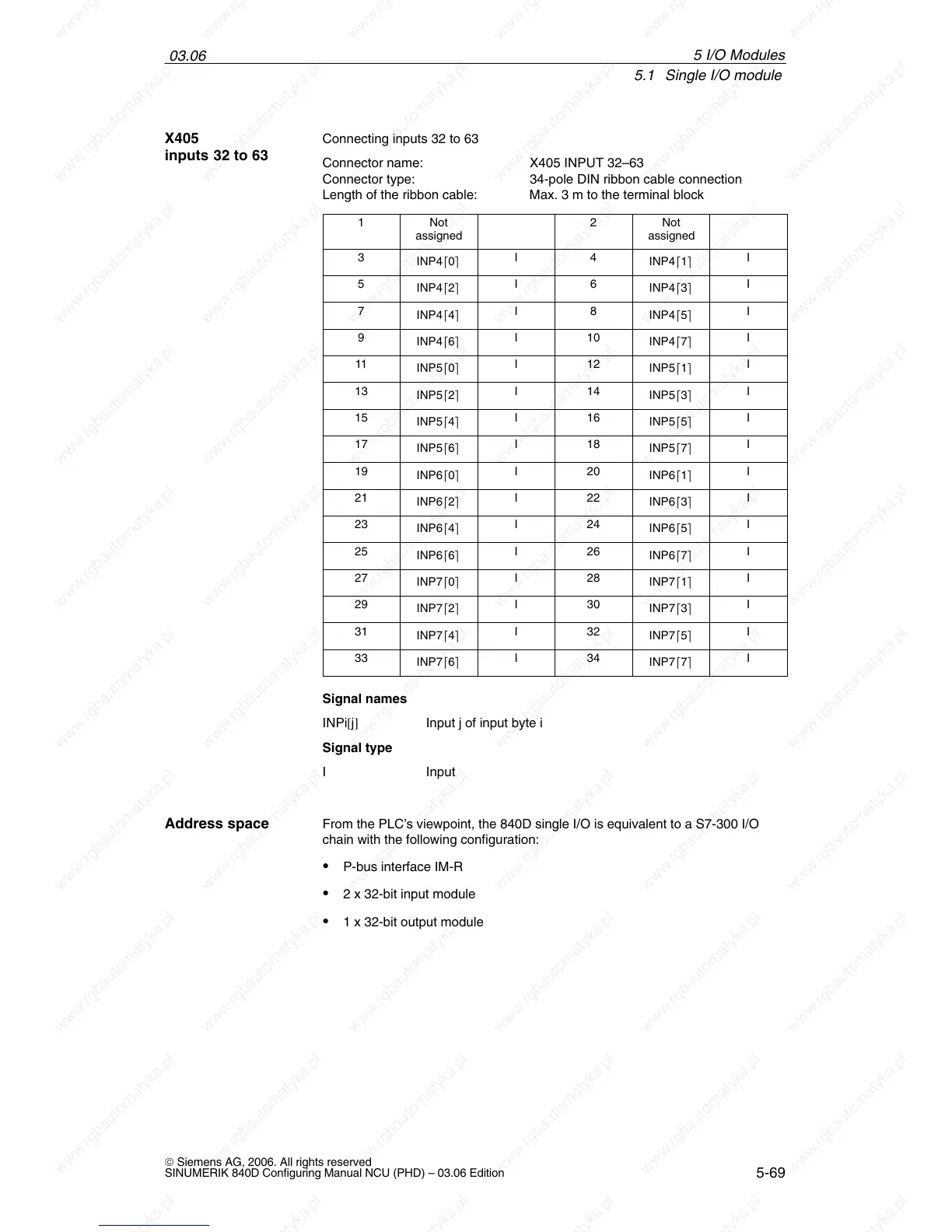

Connecting inputs 32 to 63
Connector name: X405 INPUT 32–63
Connector type: 34-pole DIN ribbon cable connection
Length of the ribbon cable: Max. 3 m to the terminal block
1 Not
assigned
2 Not
assigned
3
INP4ȱ0ȳ
I 4
INP4ȱ1ȳ
I
5
INP4ȱ2ȳ
I 6
INP4ȱ3ȳ
I
7
INP4ȱ4ȳ
I 8
INP4ȱ5ȳ
I
9
INP4ȱ6ȳ
I 10
INP4ȱ7ȳ
I
11
INP5ȱ0ȳ
I 12
INP5ȱ1ȳ
I
13
INP5ȱ2ȳ
I 14
INP5ȱ3ȳ
I
15
INP5ȱ4ȳ
I 16
INP5ȱ5ȳ
I
17
INP5ȱ6ȳ
I 18
INP5ȱ7ȳ
I
19
INP6ȱ0ȳ
I 20
INP6ȱ1ȳ
I
21
INP6ȱ2ȳ
I 22
INP6ȱ3ȳ
I
23
INP6ȱ4ȳ
I 24
INP6ȱ5ȳ
I
25
INP6ȱ6ȳ
I 26
INP6ȱ7ȳ
I
27
INP7ȱ0ȳ
I 28
INP7ȱ1ȳ
I
29
INP7ȱ2ȳ
I 30
INP7ȱ3ȳ
I
31
INP7ȱ4ȳ
I 32
INP7ȱ5ȳ
I
33
INP7ȱ6ȳ
I 34
INP7ȱ7ȳ
I
Signal names
INPi[j] Input j of input byte i
Signal type
I Input
From the PLC’s viewpoint, the 840D single I/O is equivalent to a S7-300 I/O
chain with the following configuration:
P-bus interface IM-R
2 x 32-bit input module
1 x 32-bit output module
X405
inputs 32 to 63
Address space
