03.06

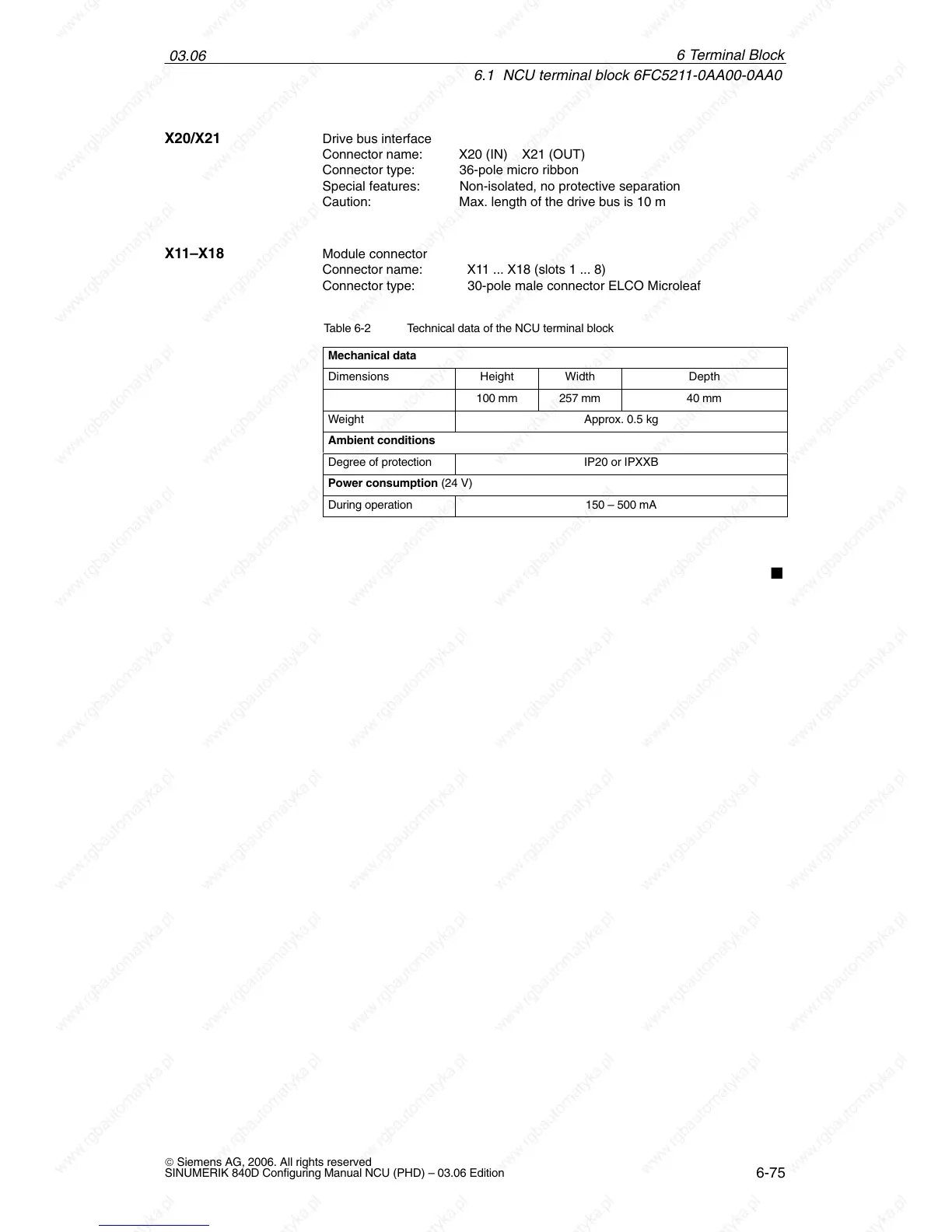

6.1 NCU terminal block 6FC5211-0AA00-0AA0
6-75
© Siemens AG, 2006. All rights reserved
SINUMERIK 840D Configuring Manual NCU (PHD) – 03.06 Edition
X Drive bus interface
Connector name: X20 (IN) X21 (OUT)
Connector type: 36-pole micro ribbon
Special features: Non-isolated, no protective separation
Caution: Max. length of the drive bus is 10 m
Module connector
Connector name: X11 ... X18 (slots 1 ... 8)
Connector type: 30-pole male connector ELCO Microleaf
Table 6-2 Technical data of the NCU terminal block
Mechanical data
Dimensions Height Width Depth
100 mm 257 mm 40 mm
Weight Approx. 0.5 kg
Ambient conditions
Degree of protection IP20 or IPXXB
Power consumption (24 V)
During operation 150 – 500 mA

X20/X21
X11–X18
6 Terminal Block

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
