8. Tighten the carrier ② using the cylinder head screw ⑦ and the washer ⑧.

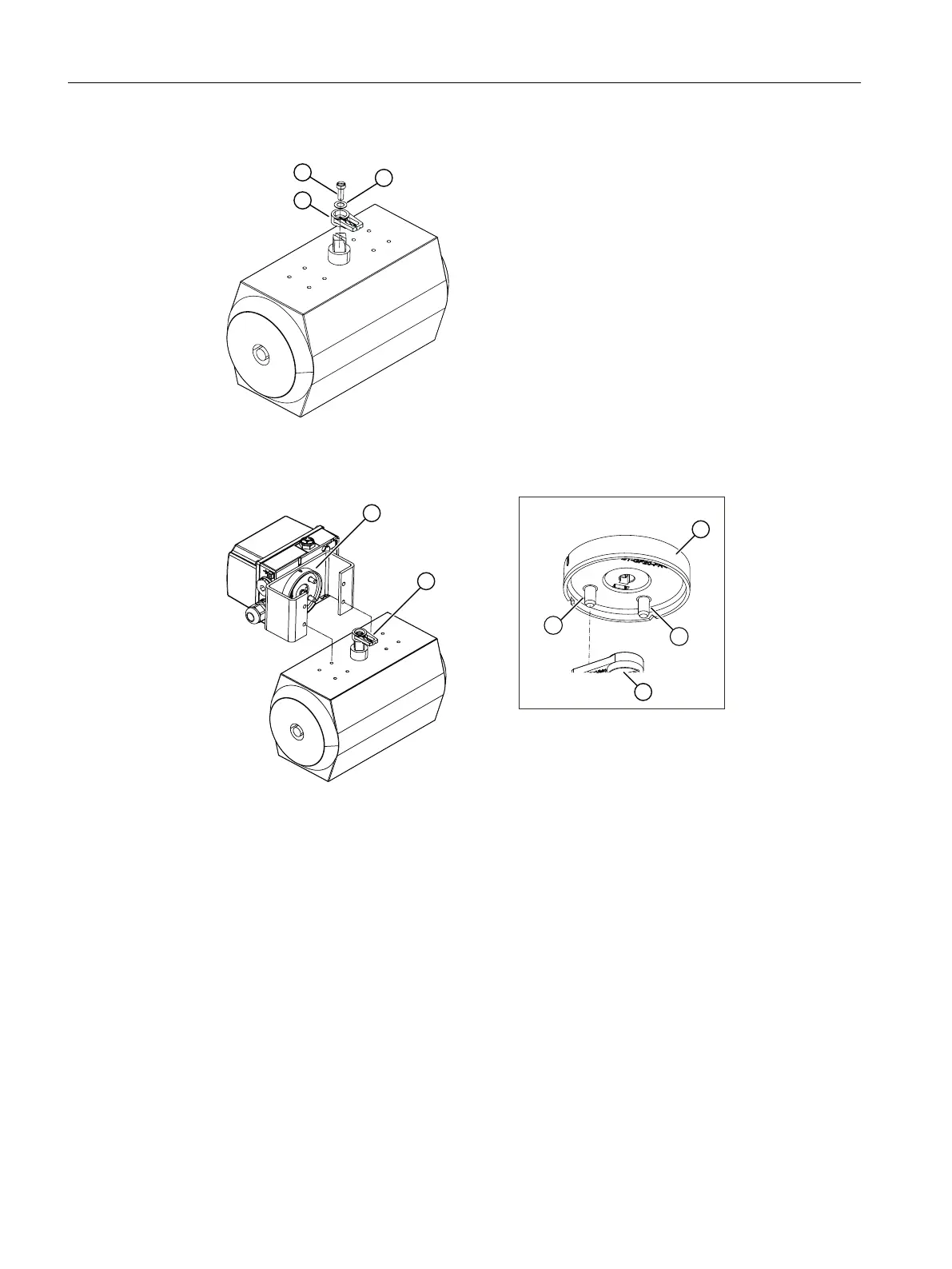

Figure 4-9 Carrier
9. Place the positioner and the mount on the actuator carefully. One of the two pins ⑫ of the
coupling wheel ① must t in the carrier ② when you do this.
Figure 4-10 Orientation of mount
When using the stainless steel coupling (article number TGX: 16300-1556): Place the
positioner and the mount on the actuator carefully. Place the stainless steel coupling on the
actuator shaft.
Installing/mounting
4.3 Mounting to part-turn actuator
SIPART PS100
22 Compact Operating Instructions, 05/2021, A5E50188940-AA
