18 SIPROTEC 4/5, Injection Unit 7XT71, Product Information
C53000-B1174-C128-7, Edition 09.2016
8.2 Panel Surface Mounting (7XT7100-0BA00)
✧ Remove the 2 cover caps on the front cover upward and downward,
respectively.

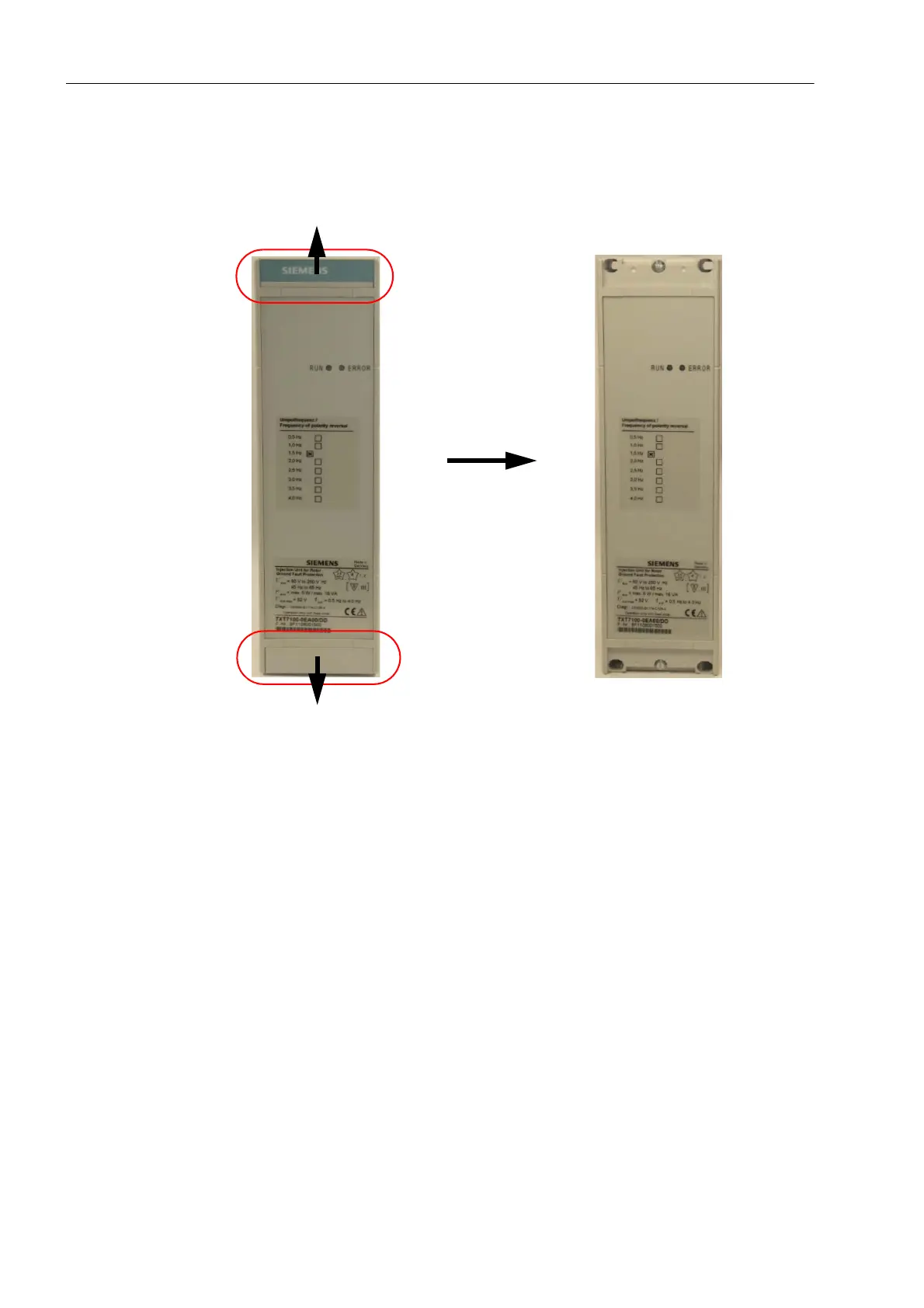

Fig. 8-1 Pulling off the Cover Caps
